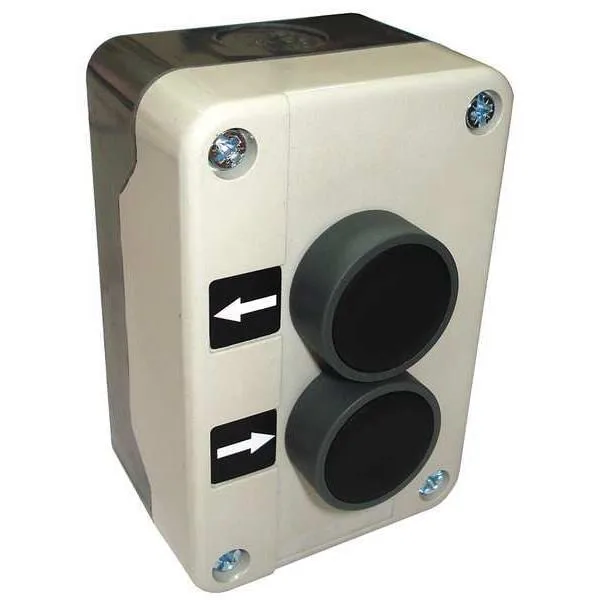

Gray thermoplastic wall-mounted control station with two black push buttons labeled Forward/Reverse, 22 mm size

Dayton

Dayton 32W268 Push Button Control Station Forward/Reverse 22 mm

SKU CH-544N-65AVA

A 22 mm forward/reverse push-button control station with two momentary operators, 10 A at 600 V AC rating, and NEMA 4/4X thermoplastic enclosure

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Forward/reverse control from a single station
  • 22 mm operators fit standard panel cut-outs
  • NEMA 4 and 4X enclosure resists water and dust
  • 10 A at 600 V AC contact rating handles heavy loads
  • UL, CSA, CE and IEC listed for code compliance

Push-Button Control Station Forward/Reverse 22 mm

The Dayton 32W268 is a wall-mounted industrial control station with two momentary push-button operators labelled Forward and Reverse. It carries a NEMA 4 and 4X rating and is built from grey thermoplastic with a plastic head. Contacts are rated 10 A at 600 V AC and 2.5 A at 24 V DC under the A600/Q600 designation, and the unit meets CE, CSA, IEC and UL Listed standards.

Suits panels needing forward/reverse motor control

The station fits applications that require a simple two-button momentary interface with a 22 mm mounting hole. It is not intended for installations that need maintained-action operators, pilot lights, mechanical interlocking between buttons, or a different contact configuration such as normally closed contacts.

No bundled accessories or software included

The product ships as a complete enclosure with the two operators and contact blocks already assembled. No additional legend plates, mounting hardware beyond the standard 22 mm cut-out, or software are supplied, so the installer provides only wiring and the panel cut-out.

Highlights

  • Forward/reverse control from a single station
  • 22 mm operators fit standard panel cut-outs
  • NEMA 4 and 4X enclosure resists water and dust
  • 10 A at 600 V AC contact rating handles heavy loads
  • UL, CSA, CE and IEC listed for code compliance

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

What voltage and current rating must the circuit I connect to this 22 mm push button station handle?

The contacts are rated for 10 A at 600 V AC and 2.5 A at 24 V DC, matching NEMA A600/Q600 designation.

Can I mount this gray thermoplastic enclosure alongside older NEMA 4 components on the same wall?

Yes, the station carries NEMA 4 and 4X ratings and mounts directly to a wall, so it fits existing NEMA 4 installations.

How do I verify the forward and reverse momentary actions are functioning after wiring?

Press each black push button; the corresponding circuit should energise only while the button is held and release immediately when let go.
