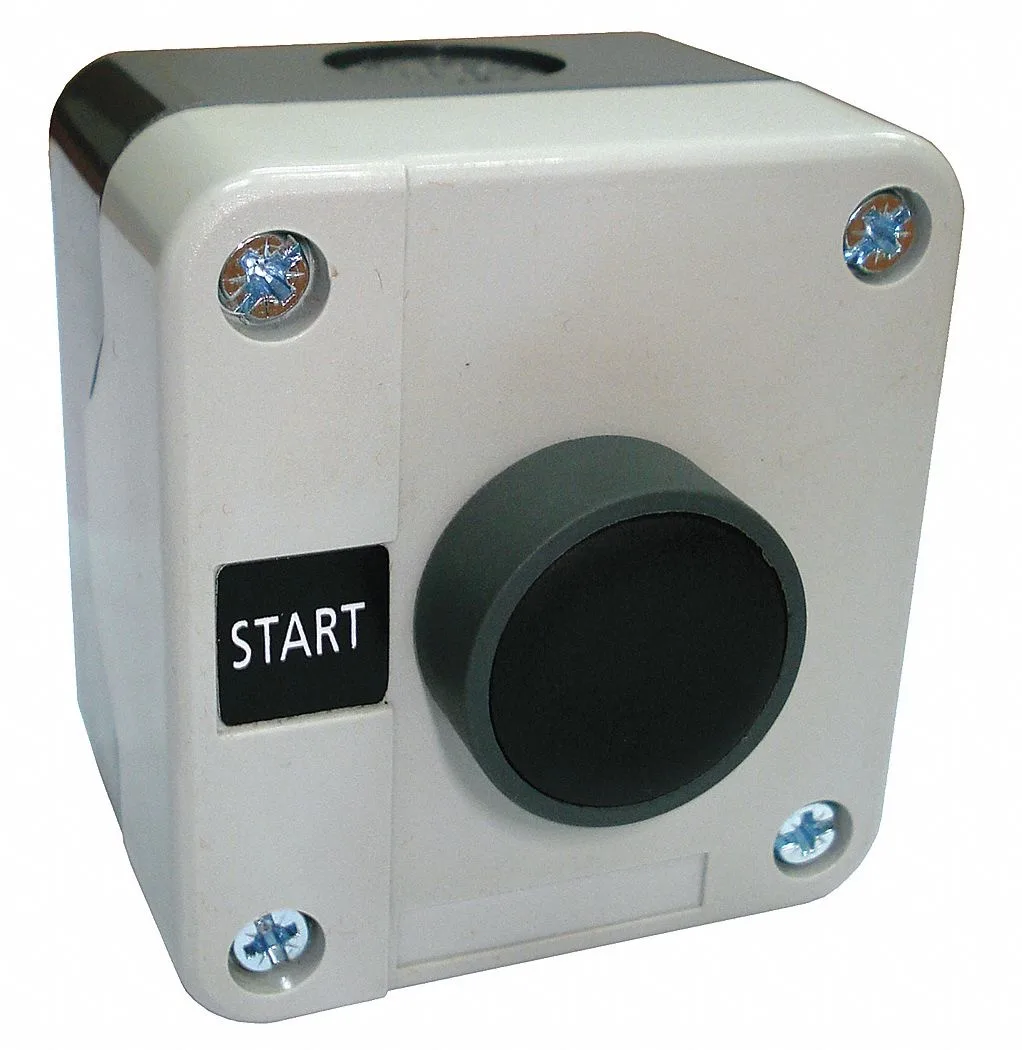

Grey thermoplastic wall-mounted control station with a single black 22 mm momentary push button labeled Start

Dayton

Dayton 32W265 22 mm Start Push Button Control Station 1NO

SKU CH-BNS1-67G7S

A 22 mm momentary start push button with one normally-open contact, rated 10 A at 600 V AC and 2.5 A at 24 V DC in a NEMA 4/4X thermoplastic enclosure

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Start control with momentary 22 mm push button
  • 1NO contact rated 10A at 600V AC and 2.5A at 24V DC
  • NEMA 4 and 4X thermoplastic enclosure resists dust and water
  • Wall-mountable 1.98 in height fits compact panels
  • cULus listed for North American safety compliance

Control Station for Start Functions

The Dayton 32W265 is a 22 mm push button control station designed for industrial start applications. It features a single momentary operator with a black plastic head and one normally open contact. The thermoplastic enclosure carries NEMA 4 and 4X ratings for dust and water resistance. Contact rating is 10A at 600V AC and 2.5A at 24V DC with A600/Q600 designation.

Suits Single-Function Panels

This unit suits panels that need one dedicated start button with momentary action and a 1NO contact. It is not for stations requiring multiple operators, pilot lights, maintained action or mechanical interlocks. Buyers needing a different legend, colour or contact configuration should look at other models.

Wall-Mount Enclosure Integration

The grey enclosure measures 1.98 in high, 2.92 in wide and 2.69 in deep for wall mounting. It frees panel space by housing the contact block and wiring inside a single NEMA-rated thermoplastic body. The cULus listing supports compliance in standard industrial control circuits.

Highlights

  • Start control with momentary 22 mm push button
  • 1NO contact rated 10A at 600V AC and 2.5A at 24V DC
  • NEMA 4 and 4X thermoplastic enclosure resists dust and water
  • Wall-mountable 1.98 in height fits compact panels
  • cULus listed for North American safety compliance

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

What mounting hardware is required for the 22 mm wall-mount enclosure?

The station is designed for wall mounting with a 22 mm cut-out; you will need a matching 22 mm panel hole and suitable fasteners for the thermoplastic enclosure.

Will the 1NO contact rated at 10A @ 600V AC and 2.5A @ 24V DC work with legacy A600/Q600 control circuits?

Yes, the contact carries an A600/Q600 NEMA designation, so it is compatible with existing A600/Q600-rated pilot-duty circuits.

How can I verify the momentary start button is operating correctly after installation?

Press the black push button; the single normally-open contact should close only while the button is held and open immediately on release, confirming momentary action.
