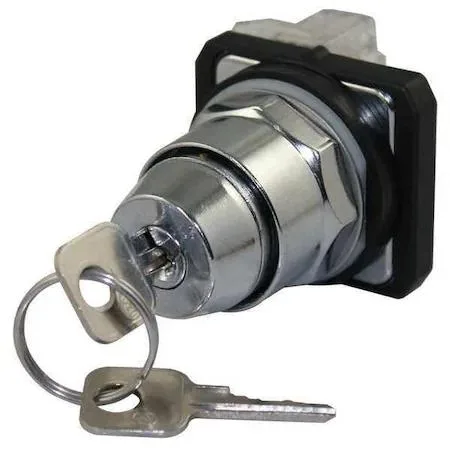

Dayton 30G317 Selector Switch Keyed 2 Position 30mm
A 30 mm keyed selector switch with two maintained or momentary positions, 10 A at 600 V AC rating, IP65 and NEMA 13 protection
- Keyed 30 mm selector prevents unauthorised operation
- Two-position maintained/momentary action suits start-stop circuits
- Chrome metal bezel rated IP65 resists dust and water jets
- 10 A at 600 V AC contacts handle heavy control loads
- NEMA 4 and 13 enclosure ratings meet industrial standards
30 mm Keyed Selector Switch
The Dayton 30G317 is a 30 mm panel-mounted selector switch designed for industrial control panels and machinery interfaces. It uses a keyed operator to restrict actuation to authorised personnel only.
Two-position maintained and momentary action
The switch provides one maintained position and one momentary position with a 1NO/1NC contact form. Cam D wiring yields OX at position A and XO at position B, fitting standard control-circuit logic without a third position.
10 A AC and 2.5 A DC contact rating
Rated at 10 A at 600 V AC and 2.5 A at 600 V DC under NEMA A600/Q600, it handles typical motor-starter and pilot-duty loads. The IP65 and NEMA 13/4 ratings protect the contacts in wet or dusty environments, but the device is not suited for applications requiring higher current or additional switching positions.
Highlights
- Keyed 30 mm selector prevents unauthorised operation
- Two-position maintained/momentary action suits start-stop circuits
- Chrome metal bezel rated IP65 resists dust and water jets
- 10 A at 600 V AC contacts handle heavy control loads
- NEMA 4 and 13 enclosure ratings meet industrial standards
Specifications
| Brand | DAYTON |
|---|
Questions about this item
What is the continuous current rating for the contacts at 600 V AC?
The contacts are rated for 10 A at 600 V AC and 2.5 A at 600 V DC under the A600/Q600 designation.
How does the selector switch handle heat and environmental exposure during all-day operation?
With an IP65 rating and NEMA 4/13 enclosure rating, the metal zinc bezel resists dust, water jets, oil and coolant while dissipating heat through its metal construction.
What mounting cut-out and panel preparation are required to install this 30 mm keyed selector switch?
The switch fits a standard 30 mm panel cut-out and uses a chrome zinc bezel with metal operator head for secure front-of-panel mounting.
