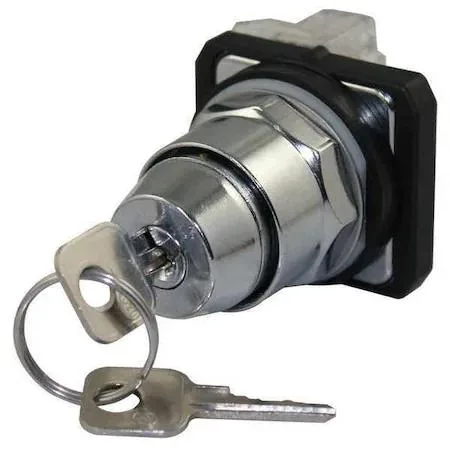

Dayton 30 mm keyed selector switch, chrome metal bezel, two-position

Dayton

Dayton 30G315 Keyed Selector Switch 30 mm 2 Position

SKU CH-SY7K-EF0EG

A 30 mm keyed selector switch with two maintained positions, 1NO/1NC contacts rated 10 A at 600 V AC, NEMA 13 and IP65 protection

  • Keyed operator prevents unauthorised access
  • 30 mm mounting fits standard panel cut-outs
  • IP65 sealing resists dust and water jets
  • 10 A at 600 V AC handles heavy control circuits
  • NEMA 13 and 4 ratings suit harsh industrial environments

Product Identity

The Dayton 30G315 is a 30 mm keyed selector switch designed for panel-mount control circuits. It provides two maintained positions with a 1NO/1NC contact block rated for 10 A at 600 V AC and 2.5 A at 600 V DC. The operator head and bezel are metal with a chrome finish, and the assembly carries an IP65 and NEMA 4, 13 rating for dust and water ingress protection.

Suitability

This switch suits panels that require a secure, key-operated two-position selector with maintained action and left or right key removal. It is not intended for applications needing momentary return, three or more positions, illuminated operators, or a different contact configuration such as 2NO or 2NC.

Decisive Specification

The contact rating of 10 A at 600 V AC (NEMA A600/Q600) determines whether the switch can handle the intended load; verify that the circuit current and voltage stay within this limit before specifying the part.

Highlights

  • Keyed operator prevents unauthorised access
  • 30 mm mounting fits standard panel cut-outs
  • IP65 sealing resists dust and water jets
  • 10 A at 600 V AC handles heavy control circuits
  • NEMA 13 and 4 ratings suit harsh industrial environments

Specifications

BrandDAYTON

Questions about this item

What is the mounting hole diameter for the 30 mm selector switch?

The operator requires a standard 30 mm panel cut-out for installation.

How do I wire the 1NO/1NC contacts for maintained positions A and B?

Position A closes the normally open contact (XO); Position B closes the normally closed contact (OX).

When should the keyed operator or contact block be replaced?

Replace the unit if the key mechanism binds, contacts exceed the 10 A at 600 V AC rating, or the IP65 seal is compromised.
