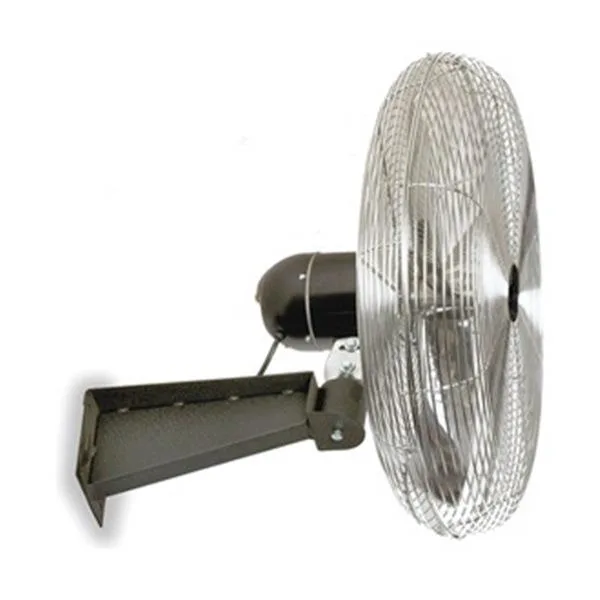

Dayton 24-inch oscillating industrial fan with metal grille and wall-mount bracket

Dayton

Dayton 2WCG7 24" Oscillating Industrial Fan 115VAC

SKU CH-CP4N-GV557

A 24-inch oscillating wall fan delivering up to 5387 CFM on high with three-speed permanent-split-capacitor motor and 72 dBA maximum sound level

  • styleOscillating
  • typeQuiet Design
  • 24-inch blade diameter moves up to 5387 CFM on high speed
  • Three-speed motor delivers 72, 65 or 57 dBA for quieter operation
  • Direct-drive 1/3 hp permanent split capacitor motor runs at 1070, 850 or 628 RPM
  • Oscillating head distributes airflow across a wide area up to 20 feet
  • Wall-mounted design with 27-inch overall dimensions fits industrial spaces

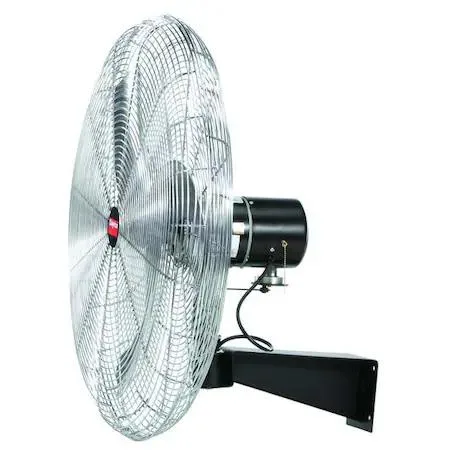

Quiet 24-Inch Oscillating Fan

The Dayton 2WCG7 is a standard-duty industrial fan built for wall mounting in workshops, warehouses and large garages. Its 24-inch blade diameter moves up to 5387 CFM on the highest of three speed settings while the quiet-design motor keeps sound levels to 72 dBA at full power. The unit operates on common 115 VAC single-phase supply and draws 2.5 amps at 300 watts.

Wall-Mount Direct-Drive Layout

A permanent split capacitor motor drives the blades directly, removing belts or gears that would need periodic adjustment. The steel housing measures 27 inches in both height and width, so the installer must provide a solid vertical surface with that clear footprint and a standard 115 V circuit. Oscillation sweeps airflow across a wider zone without repositioning the whole assembly.

Sustained Output at 105 °F Ambient

The motor is rated for continuous operation in environments up to 105 degrees F, maintaining 1070 RPM on high and 628 RPM on low without thermal derating. Air velocity at 20 feet settles to 500, 405 and 315 feet per minute across the three speeds, showing stable delivery rather than a short burst peak. Sound drops to 57 dBA on the lowest setting for quieter shift work.

Highlights

  • 24-inch blade diameter moves up to 5387 CFM on high speed
  • Three-speed motor delivers 72, 65 or 57 dBA for quieter operation
  • Direct-drive 1/3 hp permanent split capacitor motor runs at 1070, 850 or 628 RPM
  • Oscillating head distributes airflow across a wide area up to 20 feet
  • Wall-mounted design with 27-inch overall dimensions fits industrial spaces

Specifications

BrandDayton
styleOscillating
typeQuiet Design

Questions about this item

How long can the 1/3 hp motor run continuously before the 105 °F ambient limit becomes a concern?

The motor is rated for operation up to 105 °F ambient temperature; sustained use within that range is supported by the permanent split capacitor design.

What are the sound levels at each of the three speeds?

The fan produces 72 dBA on high, 65 dBA on medium and 57 dBA on low.

Does the wall-mount bracket ship with the fan or must it be purchased separately?

The fan is designed for wall mounting; the bracket is included so no extra accessory is required.
