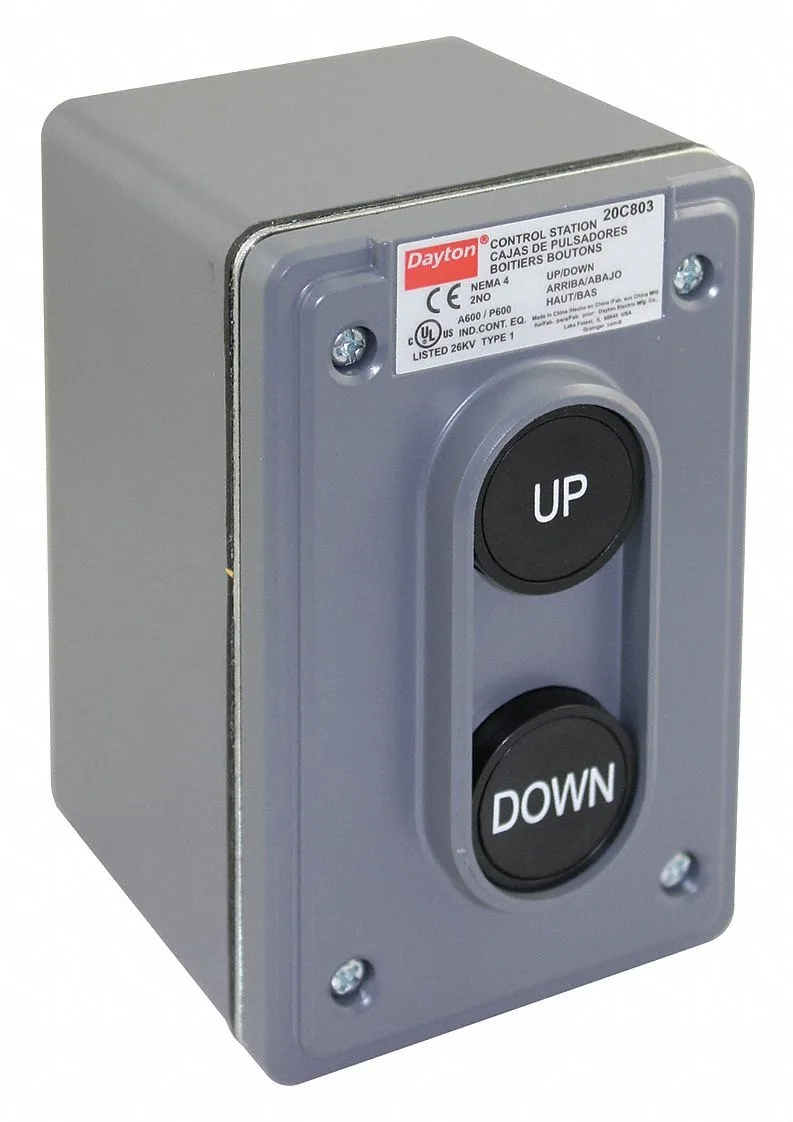

Gray zinc wall-mounted control station with two black push buttons labeled Up and Down, 22 mm size

Dayton

Dayton 20C803 Push Button Control Station 2NO Up/Down 22mm

SKU CH-SF5N-3JPQP

A 22 mm two-button momentary station with 2NO contacts rated 10 A at 600 V AC and IP65 zinc enclosure

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Reliable 10 A AC switching backed by A600 contact rating
  • Low-voltage 5 A DC control supported by P600 designation
  • Dust-tight IP65 enclosure protects internals in harsh environments
  • Two momentary push buttons deliver independent up/down operation
  • Compact 22 mm operators fit standard panel cut-outs

Two-Operator Push-Button Station

The Dayton 20C803 is a 22 mm industrial control station with two momentary push buttons labelled Up and Down. Each operator carries a black head and provides two normally-open contacts rated at 10 amps and 600 volts AC or 5 amps at 24 volts DC. It suits machinery that needs simple, direct motor-direction control.

Sustained Load Behaviour

Contacts carry an A600/P600 NEMA designation, meaning they handle the rated current continuously without derating for inrush. The zinc enclosure and IP65 seal keep dust and water jets from affecting contact resistance during long shifts. Momentary action returns each button to the open position the moment the operator releases it.

Build Quality and Mounting

A grey zinc housing with plastic button heads measures 3.27 inches high, 2.75 inches wide and 2.76 inches deep. Wall mounting uses a single 1/2 inch NPT hub for conduit entry. NEMA 4 and IP65 ratings confirm the station withstands wash-down environments and outdoor exposure day after day.

Highlights

  • Reliable 10 A AC switching backed by A600 contact rating
  • Low-voltage 5 A DC control supported by P600 designation
  • Dust-tight IP65 enclosure protects internals in harsh environments
  • Two momentary push buttons deliver independent up/down operation
  • Compact 22 mm operators fit standard panel cut-outs

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

Does the 22 mm push-button station generate noticeable heat or noise when used continuously?

The Dayton 20C803 is a passive control station with no moving parts, fans or electronics, so it produces no audible noise or measurable heat during all-day operation.

What existing wiring or enclosures must I already have to install this 2NO Up/Down station?

You need a 1/2 in NPT threaded opening in a wall-mounted enclosure and conductors rated for at least 10 A at 600 V AC or 5 A at 24 V DC to match the A600/P600 contact rating.

Will the 22 mm operators fit the cut-outs on my older NEMA 4 control panel?

Yes — the station uses standard 22 mm mounting holes and carries a NEMA 4 / IP65 rating, so it matches legacy panels built to the same dimensions and sealing class.
