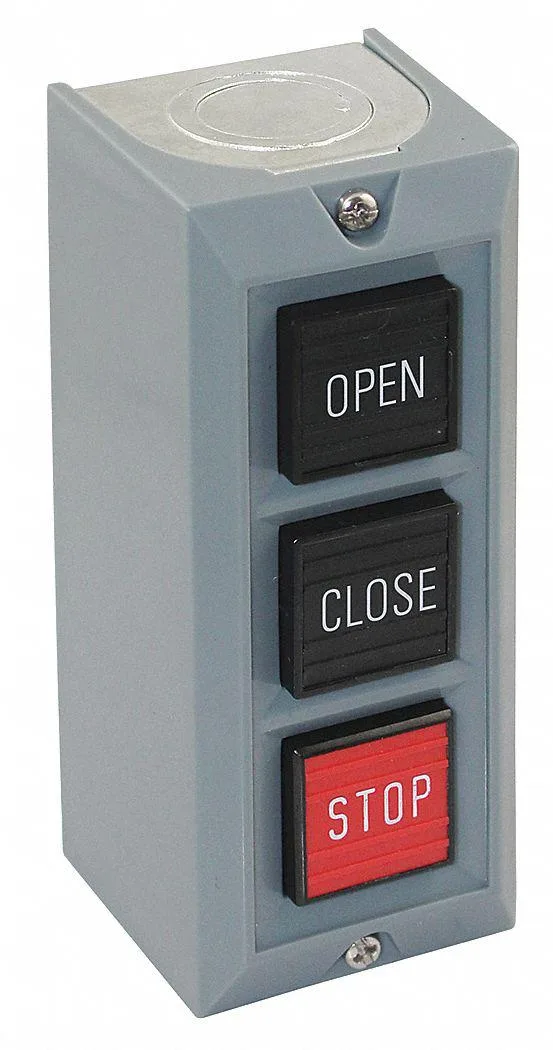

Dayton push-button control station, three black and red buttons labeled Open, Close, Stop, grey plastic wall-mount enclosure

Dayton

Dayton 20C797 Push Button Control Station Open/Close/Stop 25 mm

SKU CH-V1XJ-FTEWS

A three-button push-button station with Open, Close and Stop legends provides momentary control for industrial circuits rated up to 10 A at 600 V AC or 5 A at 24 V DC in a NEMA 1.

  • Engine BrandDAYTON
  • Engine Size25 mm
  • Three momentary push buttons for open, close and stop control
  • 25 mm operator size fits standard industrial panels
  • NEMA 1 enclosure with IP40 rating protects against solid objects
  • Rated 10 A at 600 V AC and 5 A at 24 V DC for reliable switching
  • Wall-mount design with 1/2 in to 3/4 in NPT hub for easy installation

Three-Button Push Station

The Dayton 20C797 is a wall-mounted control station with three 25 mm momentary push buttons labelled Open, Close and Stop. It provides a compact interface for motor-starter circuits and similar industrial control tasks where a single enclosure groups the essential start, run and stop functions.

Contact Rating Limits

Each operator carries a 2NO/3NC contact form rated at 10A at 600V AC and 5A at 24V DC under the A600/P600 designation. The IP40 rating protects against solid objects larger than 1 mm but offers no water ingress protection, so the unit must be installed inside a suitable enclosure or dry location.

Plastic Housing and Hub Entry

The plastic head and NEMA 1 enclosure measure 2.19 in high, 5 in wide and 2.06 in deep, accepting a 1/2 in to 3/4 in NPT conduit hub for surface wiring. The momentary action returns each button automatically, and the lack of mechanical interlock means operators must rely on external logic to prevent conflicting commands.

Highlights

  • Three momentary push buttons for open, close and stop control
  • 25 mm operator size fits standard industrial panels
  • NEMA 1 enclosure with IP40 rating protects against solid objects
  • Rated 10 A at 600 V AC and 5 A at 24 V DC for reliable switching
  • Wall-mount design with 1/2 in to 3/4 in NPT hub for easy installation

Specifications

Engine BrandDAYTON
Engine Size25 mm

Questions about this item

Which version of the Dayton 20C797 push-button station should I choose for a wall-mounted installation?

The station is supplied as a single 25 mm three-operator unit with Open/Close/Stop legends, momentary action on all buttons, 2NO/3NC contacts and a 1/2 in to 3/4 in NPT hub for wall mounting.

What does the 10 A contact rating mean when the station is wired into a 600 V AC control circuit?

Each contact block is rated to carry 10 A at 600 V AC (A600) and 5 A at 24 V DC (P600), so the station can directly switch motor starters or contactors within those limits.

How does the NEMA 1 and IP40 rating limit where I can install this control station?

NEMA 1 and IP40 provide protection against solid objects larger than 1 mm but no water ingress protection, so the station is suitable only for dry indoor locations.
