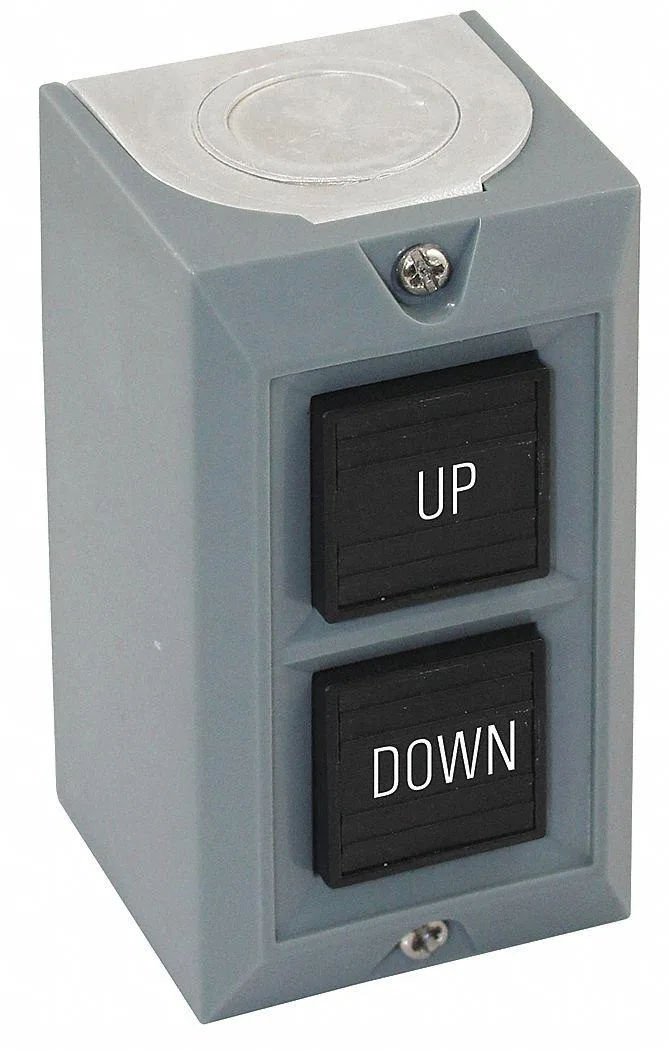

Grey plastic wall-mount control box with two black 25mm push buttons marked Up and Down

Dayton

Dayton 20C795 25mm Up/Down Push Button Control Station

SKU CH-PHGX-E4HPB

A 25 mm wall-mount push-button station with up/down momentary contacts rated 10 A at 600 V AC and IP40 protection

  • Engine BrandDAYTON
  • Engine Size25 mm
  • Two-button momentary control for up/down operation
  • 25 mm push-button size fits standard panel cutouts
  • Rated 10 A at 600 V AC and 5 A at 24 V DC
  • NEMA 1 and IP40 enclosure protects contacts indoors
  • Wall-mount plastic housing with 1/2 to 3/4 in NPT hub

Two-Button Momentary Control Station

The Dayton 20C795 is a wall-mounted push-button station rated NEMA 1 and IP40 for indoor industrial use. It provides two 25 mm black momentary operators marked Up and Down, each returning a normally open contact when pressed. The enclosure and operator heads are plastic, and the unit mounts through a 1/2 in to 3/4 in NPT hub.

Double Normally Open Contacts

Each operator carries a 2NO contact form rated 10A at 600V AC and 5A at 24V DC, matching NEMA A600/P600 designations. The momentary action means contacts close only while the button is held, giving direct manual control of motor starters, contactors or relay logic without latching. No pilot lights or mechanical interlock are included in this two-operator assembly.

Verify Voltage And Mounting Before Ordering

Confirm that your control circuit voltage does not exceed 600V AC or 24V DC and that the 10A/5A ratings suit the connected coil or load. The station requires a flat wall surface with a 1/2 in to 3/4 in NPT threaded entry and provides no interlock to prevent simultaneous Up and Down signals. Buyers needing maintained action, indicator lights or a higher ingress rating should select a different model.

Highlights

  • Two-button momentary control for up/down operation
  • 25 mm push-button size fits standard panel cutouts
  • Rated 10 A at 600 V AC and 5 A at 24 V DC
  • NEMA 1 and IP40 enclosure protects contacts indoors
  • Wall-mount plastic housing with 1/2 to 3/4 in NPT hub

Specifications

Engine BrandDAYTON
Engine Size25 mm

Questions about this item

How often should the 25 mm push button operators be inspected or replaced under normal industrial use?

The momentary action contacts are rated for 10 A at 600 V AC and 5 A at 24 V DC; inspect actuator travel and contact resistance annually and replace the station if switching becomes unreliable or the plastic housing shows cracking.

What electrical limit will be reached first when the station runs continuously at full load?

The contact rating of 10 A at 600 V AC (A600) and 5 A at 24 V DC (P600) is the limiting factor; sustained current above these values will cause contact overheating before any other component fails.

Does the IP40-rated plastic enclosure get hot or create audible noise when the control station operates all day?

The station has no moving parts, fans or coils, so it generates negligible heat and no audible noise; the IP40 plastic enclosure remains at ambient temperature during continuous operation.
