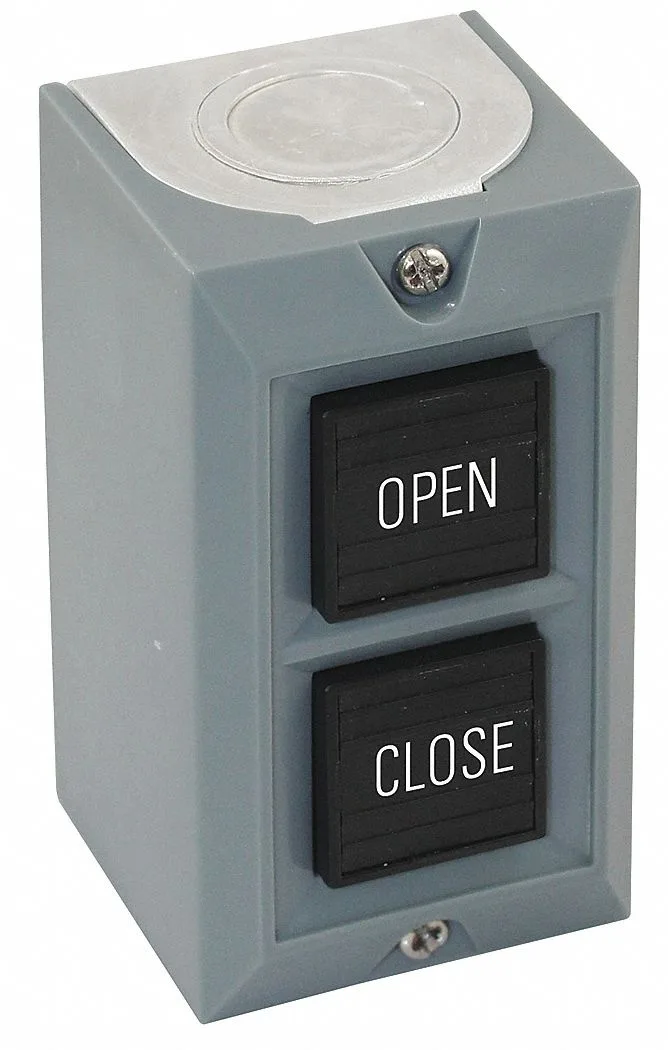

Grey plastic wall-mounted control station with two black push buttons labeled Open and Close

Dayton

Dayton 20C792 2NO Push Button Control Station 25 mm

SKU CH-FF2N-V35HX

A 25 mm wall-mounted control station with two momentary black push buttons for open/close operation and 2NO contacts rated 10A at 600V AC

  • Engine BrandDAYTON
  • Engine Size25 mm
  • Two normally-open contacts for simple start/stop circuits
  • 10 A at 600 V AC rating handles heavy motor loads
  • IP40 enclosure keeps dust out of the contacts
  • 25 mm mounting hole fits standard panel cut-outs
  • Open/Close legend gives instant visual identification

Control Station 25 mm Open/Close

This Dayton 20C792 push-button control station provides two normally-open momentary contacts for basic motor or circuit control. The 25 mm operators are coloured black and carry an Open/Close legend for clear identification in industrial environments. Rated 10 A at 600 V AC and 5 A at 24 V DC, the unit meets NEMA A600/P600 contact designation and IP40 ingress protection. Wall mounting with a 1/2 in to 3/4 in NPT hub suits standard conduit entries.

Installation notes and common issues

The plastic enclosure and head accept wall mounting through the supplied NPT hub range; ensure the conduit size matches 1/2 in to 3/4 in to maintain the IP40 seal. Wiring must respect the 10 A AC and 5 A DC contact ratings — exceeding these values causes premature contact wear. Momentary action on both buttons means the circuit only remains energised while the button is held; verify the control logic requires this behaviour rather than maintained contact.

Pre-order checklist

Confirm the application needs exactly two momentary normally-open contacts with Open/Close legends; other legends or maintained-action types will not suit. Check that the available mounting surface accommodates the 2.19 in height, 3.69 in width and 2.06 in depth dimensions. Verify the supply voltage does not exceed 600 V AC or 24 V DC and that the load current stays within the 10 A AC and 5 A DC limits. The NEMA 1 rating restricts use to indoor, non-hazardous locations.

Highlights

  • Two normally-open contacts for simple start/stop circuits
  • 10 A at 600 V AC rating handles heavy motor loads
  • IP40 enclosure keeps dust out of the contacts
  • 25 mm mounting hole fits standard panel cut-outs
  • Open/Close legend gives instant visual identification

Specifications

Engine BrandDAYTON
Engine Size25 mm

Questions about this item

How can I verify the push button station is operating correctly after mounting it?

Press each button and confirm the connected circuit activates; the momentary action should return the button to its original position when released, and the 2NO contacts will close only while pressed.

What components are included with the 20C792 control station and what must be purchased separately?

The station includes the plastic enclosure with two black 25 mm push buttons labelled Open/Close, internal 2NO contact blocks rated 10A at 600V AC, and a 1/2 in to 3/4 in NPT hub; mounting hardware and wiring are not supplied.

Which version of this control station should I choose for a 24V DC control circuit?

The 20C792 is rated 5A at 24V DC with an A600/P600 contact designation, making it suitable for standard 24V DC control circuits requiring two normally-open momentary contacts.
