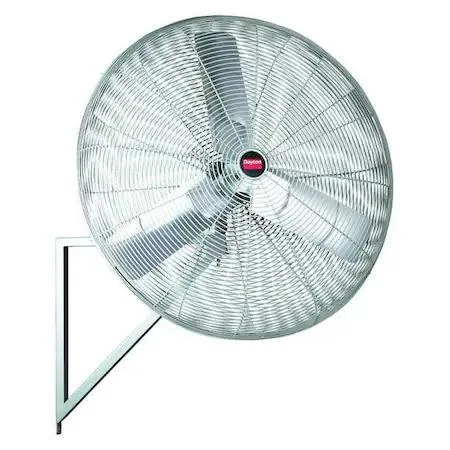

Dayton 30-inch wall-mounted industrial fan in metal finish

Dayton

Dayton 1VCG6 30 in Wall Mount Industrial Fan 277V

SKU CH-AA15-F7WJW

Wall-mount industrial fan with 30 in blades, 9450 CFM airflow, 1/2 hp motor at 277V, and 77 dBA sound level

  • styleNon-oscillating
  • typeIndustrial
  • 30 in blade diameter moves 9450 CFM for powerful air circulation
  • Direct-drive 1/2 hp motor runs at 1100 RPM with 1.8 amps at 277V
  • Non-oscillating stationary design mounts on wall or ceiling for fixed-position airflow
  • 77 dBA sound level at 450 watts suits industrial environments up to 104°F
  • 850 fpm air velocity at 20 ft reaches across large workspaces effectively

30-inch 277 V Wall-Mount Industrial Fan

This stationary Dayton fan is built for warehouses, factories and large commercial spaces that need high-volume air movement from a fixed position. Its direct-drive, permanent-split-capacitor motor runs on 277 V single-phase power and is rated for continuous duty in ambient temperatures up to 104 °F.

9450 CFM Airflow with 850 fpm Reach at 20 Feet

At 1100 RPM the 30-inch blades deliver 9450 CFM on the single high speed, maintaining 850 fpm velocity 20 feet from the unit. The 1/2 hp motor draws 1.8 amps and 450 watts, so output is consistent but limited to one speed setting; there is no variable control or oscillation to broaden coverage.

Wall or Ceiling Mount, 33-Inch Profile, 77 dBA

The housing measures 33 inches square with a maximum depth of 24-1/4 inches, allowing flush installation on walls or ceilings where a 277 V supply is available. Operation at 77 dBA is audible in quiet offices, so the fan suits industrial aisles, loading docks or equipment rooms rather than noise-sensitive areas.

Highlights

  • 30 in blade diameter moves 9450 CFM for powerful air circulation
  • Direct-drive 1/2 hp motor runs at 1100 RPM with 1.8 amps at 277V
  • Non-oscillating stationary design mounts on wall or ceiling for fixed-position airflow
  • 77 dBA sound level at 450 watts suits industrial environments up to 104°F
  • 850 fpm air velocity at 20 ft reaches across large workspaces effectively

Specifications

BrandDayton
styleNon-oscillating
typeIndustrial

Questions about this item

Will the 277V motor run on my existing 277V single-phase circuit without a transformer?

Yes, the fan operates on 277V AC, 1 Phase, 60 Hz and draws 1.8 amps at 450 watts, so it connects directly to a compatible 277V supply.

How can I verify the 30-inch blade assembly is moving the rated 9,450 CFM after installation?

Measure airflow at the discharge; the factory rating is 9,450 CFM at 1,100 RPM with an air velocity of 850 fpm at 20 feet, and the motor should run at 1,100 RPM with a sound level near 77 dBA.

Does the box include the wall-mount bracket and hardware, or must I order a separate mounting kit?

The fan is a standard-duty industrial model with a 33-inch outside diameter, 33-inch height, 33-inch width and 24-1/4-inch max depth; mounting accessories are sold separately.
