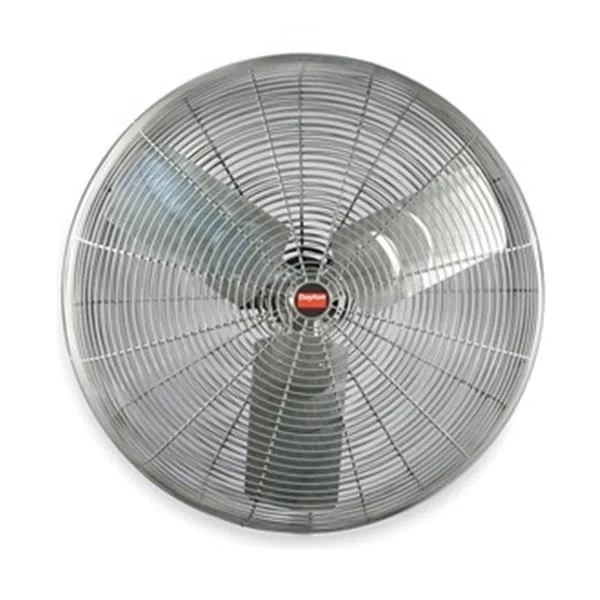

White metal industrial ceiling fan with three blades and central motor housing

Dayton

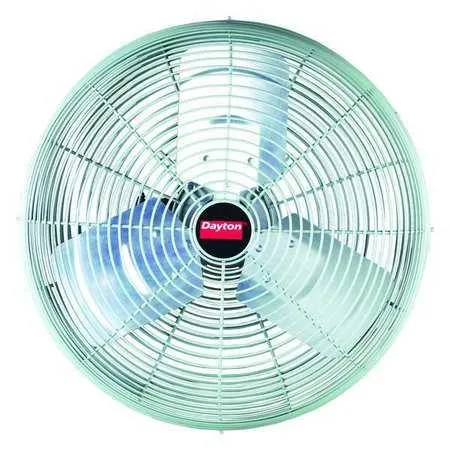

Dayton 1VCE7 20" Non-Oscillating Industrial Ceiling Fan

SKU CH-44RG-QG63N

Moves up to 4,750 CFM on high with a 20-inch blade in a stationary industrial design running on 115 V AC power

  • styleNon-oscillating
  • typeIndustrial
  • 20-inch blade diameter moves up to 4750 CFM for broad coverage
  • Two-speed motor delivers 3080 CFM on low for quieter operation
  • Direct-drive 1/4 HP PSC motor runs at 1100 RPM high / 850 RPM low
  • 72 dBA sound level suits industrial environments without excessive noise
  • 115 V AC single-phase input draws 2.0 A high / 1.4 A low

Product Identity

The Dayton 1VCE7 is a 20 inch non-oscillating industrial ceiling fan built for stationary airflow in commercial or workshop settings. It operates on 115V AC single-phase power with a 1/4 hp permanent split capacitor motor driving the blades directly.

Build and Mounting

The steel construction measures 23 inches in outside diameter, height and width, and mounts by the fan head only. Two-speed operation delivers 4750 CFM at 1100 RPM on high and 3080 CFM at 850 RPM on low, producing 72 dBA sound output while drawing 2.0 amps at 220 watts or 1.4 amps at 160 watts respectively.

Installation Checks

Verify that your supply is 115V AC at 60 Hz and that the circuit can support the rated operating amps. Confirm the mounting location suits a fan-head-only installation and that the 23 inch envelope clears surrounding structures. The unit is rated for ambient temperatures up to 104 degrees F.

Highlights

  • 20-inch blade diameter moves up to 4750 CFM for broad coverage
  • Two-speed motor delivers 3080 CFM on low for quieter operation
  • Direct-drive 1/4 HP PSC motor runs at 1100 RPM high / 850 RPM low
  • 72 dBA sound level suits industrial environments without excessive noise
  • 115 V AC single-phase input draws 2.0 A high / 1.4 A low

Specifications

BrandDayton
styleNon-oscillating
typeIndustrial

Questions about this item

What does the 115V AC single-phase supply mean for wiring this fan?

The fan runs on standard 115V AC single-phase power at 60 Hz, drawing 2.0 amps on high and 1.4 amps on low, so it connects to a regular household circuit without special wiring.

Will the 23-inch square housing fit my ceiling joist spacing?

The fan head measures 23 inches wide, 23 inches deep and 23 inches high with a 20-inch blade diameter, so verify your joist centre-to-centre distance and clearance before mounting.

How do I wire the two-speed motor correctly?

Connect the black lead to high speed, the red lead to low speed, the white lead to neutral and the green lead to ground; a common mistake is swapping the black and red wires, which reverses the speed settings.
