Dayton
Dayton 10E038 Venturi Frame 34x34 Galv
Galvanised steel venturi frame for 30-inch exhaust fans with slotted motor base accepting 48 or 56 frame motors
- typeHigh Temperature
- Galvanised steel frame resists corrosion for long service life
- 34 in square footprint matches 30 in blade diameter installations
- Slotted motor base accepts both 48 and 56 frame motors
- 4 1/4 in venturi depth improves airflow efficiency
- Mounting bolts included for faster installation
Venturi Frame for 30 in Blade
The Dayton 10E038 venturi frame is built for 30 in blade diameter exhaust fans in commercial or industrial ventilation systems. Its galvanised steel construction resists corrosion in damp or outdoor environments. Installers receive mounting bolts and a slotted motor base that accepts 48 or 56 frame motors for straightforward assembly.

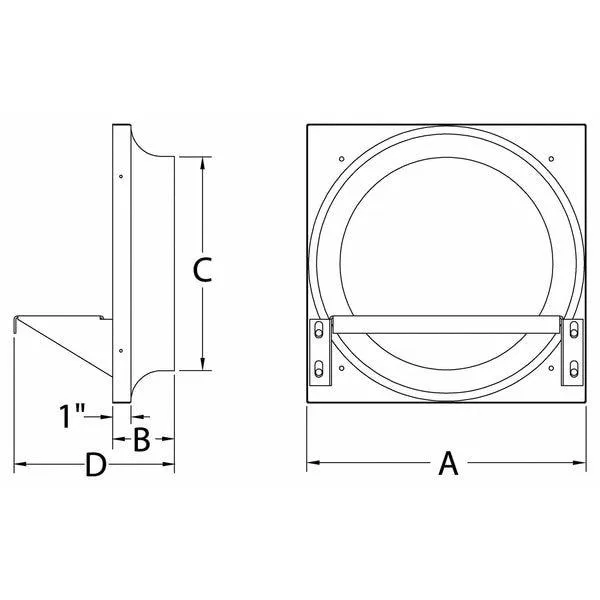

34 in Square Opening with 32 1/2 in Duct
The frame measures 34 in height and width with a 32 1/2 in diameter opening required for duct connection. Venturi depth is 4 1/4 in and maximum overall depth is 9 5/8 in, limiting how far the assembly projects into the plenum. The 1 in flange provides a secure mounting surface against the building structure.
High Temperature Rating for Harsh Air Streams
This model carries a high temperature designation, making it suitable for exhaust streams that would damage standard frames. Buyers needing a frame rated only for ambient temperatures should select a different product.
Highlights
- Galvanised steel frame resists corrosion for long service life
- 34 in square footprint matches 30 in blade diameter installations
- Slotted motor base accepts both 48 and 56 frame motors
- 4 1/4 in venturi depth improves airflow efficiency
- Mounting bolts included for faster installation
Specifications
| Brand | Dayton |
|---|---|
| type | High Temperature |
Questions about this item
Will the 34 in by 34 in galvanized frame fit the 30 in blade diameter I already have?
The frame is built for a 30 in blade diameter with a 32 1/2 in opening, so it matches that size directly.
How can I confirm the motor is seated correctly after installation?
The slotted motor base accepts 48 or 56 frame motors; once the mounting bolts are tightened the motor should sit level and secure in the slots.
Does the package include the motor or only the frame and mounting hardware?
The box contains the venturi frame, mounting bolts and the slotted motor base; a 48 or 56 frame motor must be purchased separately.
