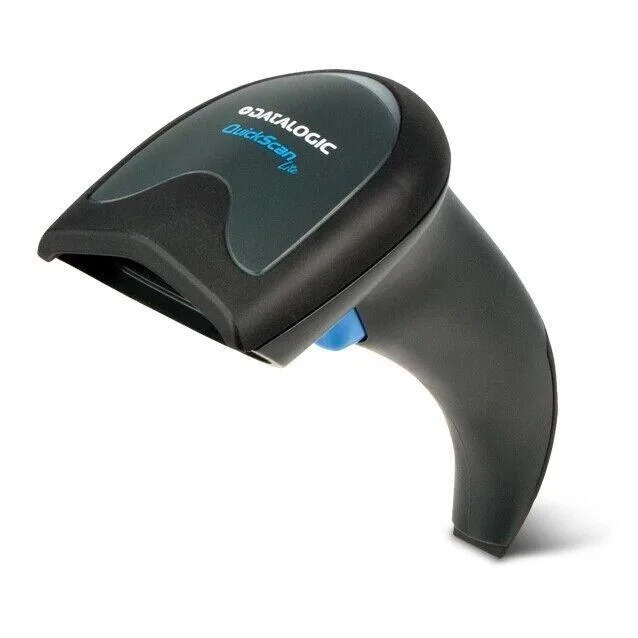

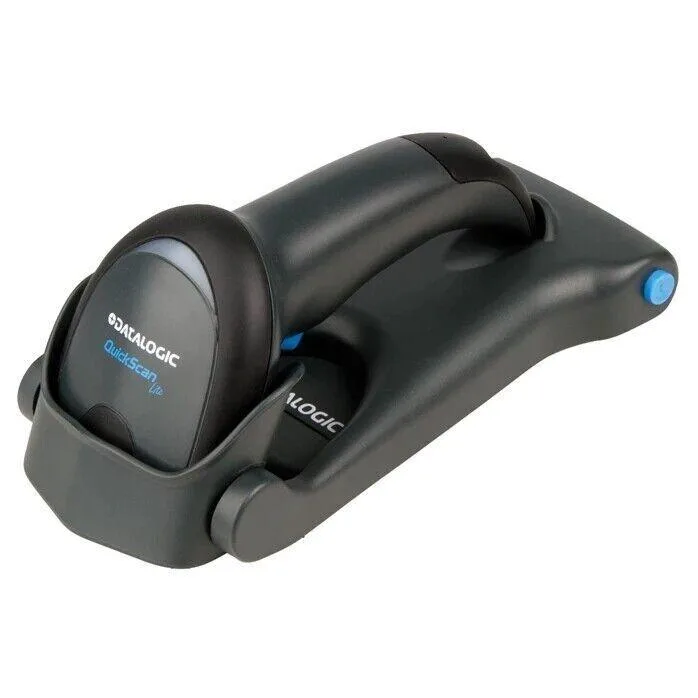

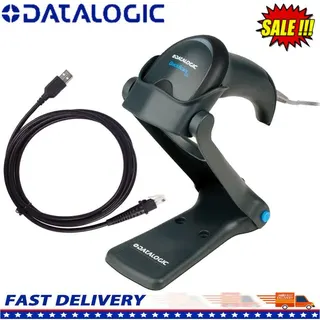

Black handheld barcode scanner with USB cable and collapsible stand

Datalogic

Datalogic QW2120-BKK1S barcode scanner USB kit with stand

SKU CH-TTBQ-DD2X8 MPN QW2120-BKK1S

Handheld 1D linear imager reads standard barcodes at up to 400 scans per second and includes a USB cable and tiltable stand

  • Form FactorHandheld
  • ConnectivityCorded
  • Scan Engine1D Linear Imager
  • Included CablesUSB Cable Included
  • Interfaces SupportedUSB
  • Light SourceLED
  • Fast 1D scanning at 400 reads per second
  • Reads codes as small as 4 mils resolution
  • Wide angular tolerance with ±65° pitch and ±70° yaw
  • Low 190 mA standby current saves power
  • Includes USB cable and adjustable stand

Product Identity

The Datalogic QW2120-BKK1S is a new corded handheld barcode scanner supplied as a USB kit with a collapsible stand. It uses a 1D linear imager engine with LED illumination to read all standard linear codes and GS1 DataBar variants. The unit draws 340 mA while operating and 190 mA in standby from a 5 VDC USB supply. It targets retail, light manufacturing, document processing and finance users who need reliable single-plane scanning at a fixed workstation.

Upgrade Context

This kit replaces older laser or CCD scanners that struggle with truncated or low-contrast 1D symbols. The 400 reads-per-second linear imager handles 4 mil resolution and maintains a 25 percent minimum print contrast ratio. The jump is worth it when bar codes are long, wide or poorly printed, such as utility bills or electronic-part labels, because the extended scanning line captures them without increasing distance. Buyers who need 2D matrix codes or wireless freedom should look elsewhere.

Installation Notes

Plug the included USB cable into a host port; the scanner enumerates as a standard HID device without extra drivers. The lightweight stand folds flat to serve as a holder and its tiltable head adjusts for comfortable presentation angles. Common issues include insufficient USB current on unpowered hubs, which can cause intermittent reads, and glare on highly reflective surfaces that exceeds the 25 percent contrast threshold. Ensure the host port supplies a steady 5 VDC ± 5%.

Highlights

  • Fast 1D scanning at 400 reads per second
  • Reads codes as small as 4 mils resolution
  • Wide angular tolerance with ±65° pitch and ±70° yaw
  • Low 190 mA standby current saves power
  • Includes USB cable and adjustable stand

Specifications

BrandDatalogic
SeriesDatalogic QW2120-BKK1S
ModelQW2120-BKK1S
Form FactorHandheld
ConnectivityCorded
Scan Engine1D Linear Imager
Included CablesUSB Cable Included
Interfaces SupportedUSB
Light SourceLED
Resolution4 mils
Depth of Scan FieldMinimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
5 mils : 2.50 to 15.00 cm / 1.00 to 6.00"
7.5 mils : 0 to 24.00 cm / 0 to 9.40"
10 mils: 0 to 35.00 cm / 0 to 13.80"
13 mils: 0 to 40.00 cm / 0 to 15.70"
20 mils: 0 to 60.00 cm / 0 to 23.60"
Pitch±65 degree
Roll±45 degree
Yaw±70 degree
Scan Speed400 reads/sec.
Print Contrast Ratio (Minimum)25%
Decoding Capability1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Postal Codes: Australian Post; British Post; Canadian Post; China Post; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Input Voltage5 VDC ± 5%
CurrentOperating (Typical): 340 mA 5 VDC
Standby/Idle (Typical): 190 mA 5 VDC
ColorBlack
Dimensions6.70" x 2.50" x 2.70"
Weight0.26 lb.
FeaturesWide scan angle and Field of View (FOV)
Blue aiming dot on white illumination
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Excellent performance in reading bar codes displayed on mobile devices
Built with over-molded rubber to protect the imager when dropped
Compact and multi-position stand
Water and Particulate Sealing Rating: IP42
Drop resistance to 1.5 m / 5.0 ft
Uses the same cables and power supplies as the current QuickScan products.
USB certified kits available.
Remote Host Download lowers service costs and improves operations and is available for all mo
Drop5 feet
Package Contents1X Barcode Scanner
1X USB Cable
1X Stand
1X manual

Questions about this item

What USB cable length does the QW2120-BKK1S kit need to reach my PC?

The kit includes a USB cable that draws 5 VDC ± 5% from the host port; operating current is 340 mA and standby current is 190 mA.

Which step is often missed when installing the QW2120-BKK1S with its stand?

The stand head tilts; set the desired angle before locking it so the 1D linear imager stays aligned with the barcode.

When will the scan window on the QW2120-BKK1S need cleaning?

Clean the window when the LED light source shows reduced contrast on 4 mil codes; the engine reads at 400 reads/sec when the window is clear.
