Black corded handheld 1D barcode scanner with USB cable and stand

Datalogic

Datalogic QuickScan QD2131-BKK1S barcode scanner, corded 1D linear imager, USB kit, black

SKU CH-J0CX-0CQY0 MPN QD2131-BKK1S

Corded handheld 1D linear imager scans at 270 scans per second with extra-wide angle and extended range for retail and inventory tasks

  • Form FactorHandheld
  • ConnectivityCorded
  • Scan Engine1D Linear Imager
  • Interfaces SupportedKeyboard Wedge / OEM (IBM) USB / RS-232 / USB
  • Scan Speed270 scan/s
  • Input Voltage4.75 - 14 VDC +/- 10%
  • Scans 1D barcodes fast with 270 scans per second
  • Reads longer codes close-up via extra-wide scan angle and long scan line
  • Works beyond typical range with extended reading depth of field
  • Comfortable all-day use from lightweight 5.30 oz balanced design
  • Includes 2M USB cable and stand for immediate setup

Purpose and User

The Datalogic QuickScan QD2131-BKK1S is a corded handheld 1D linear imager designed for point-of-sale checkout, inventory tasks and general-purpose scanning. It reads standard linear barcodes and captures codes displayed on mobile phone screens for electronic coupons or tickets. The USB kit includes a 2‑metre cable and a stand for fixed‑position use.

Interface Limits

The scanner supports Keyboard Wedge, OEM USB, RS‑232 and standard USB interfaces, drawing 140 mA typical operating current and 50 mA idle at 5 VDC within a 4.75‑14 VDC range. It achieves 270 scans per second with an extra‑wide scan angle and extra‑long scan line, but it does not decode 2D symbologies. The 2‑metre cable length restricts placement distance from the host.

Installation Notes

Plug the supplied USB Type‑A cable into the host port; the scanner is recognised as a HID keyboard device for immediate use without driver installation. Configuration changes are managed through the Host Download application for remote firmware updates or parameter adjustments. The lightweight 5.30 oz body and included stand reduce operator fatigue, though the fixed cable prevents wireless mobility. Users needing 2D scanning or Bluetooth freedom should consider other form factors.

Highlights

  • Scans 1D barcodes fast with 270 scans per second
  • Reads longer codes close-up via extra-wide scan angle and long scan line
  • Works beyond typical range with extended reading depth of field
  • Comfortable all-day use from lightweight 5.30 oz balanced design
  • Includes 2M USB cable and stand for immediate setup

Specifications

BrandDatalogic
SeriesQuickScan
ModelQD2131
Part NumberQD2131-BKK1S
Form FactorHandheld
ConnectivityCorded
Scan Engine1D Linear Imager
Interfaces SupportedKeyboard Wedge / OEM (IBM) USB / RS-232 / USB
Scan Speed270 scan/s
Input Voltage4.75 - 14 VDC +/- 10%
CurrentOperating (Typical): 140 mA @ 5 VDC
Standby/Idle (Typical): 50 mA @ 5 VDC
ColorBlack
Dimensions6.40" x 3.60" x 1.60"
Weight5.30 oz.
FeaturesLight weight and balanced design
Extra-wide scan angle and extra-long scan line
Extended reading range and depth of field (DOF)
Sharp and highly visible scan line
Decent depth of field reading for general purpose scanning applications
Datalogic's "Green Spot" technology for good-read feedback
IP42 rating for Particulate and Water Sealing
1.5 m / 5.0 ft drop specification
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

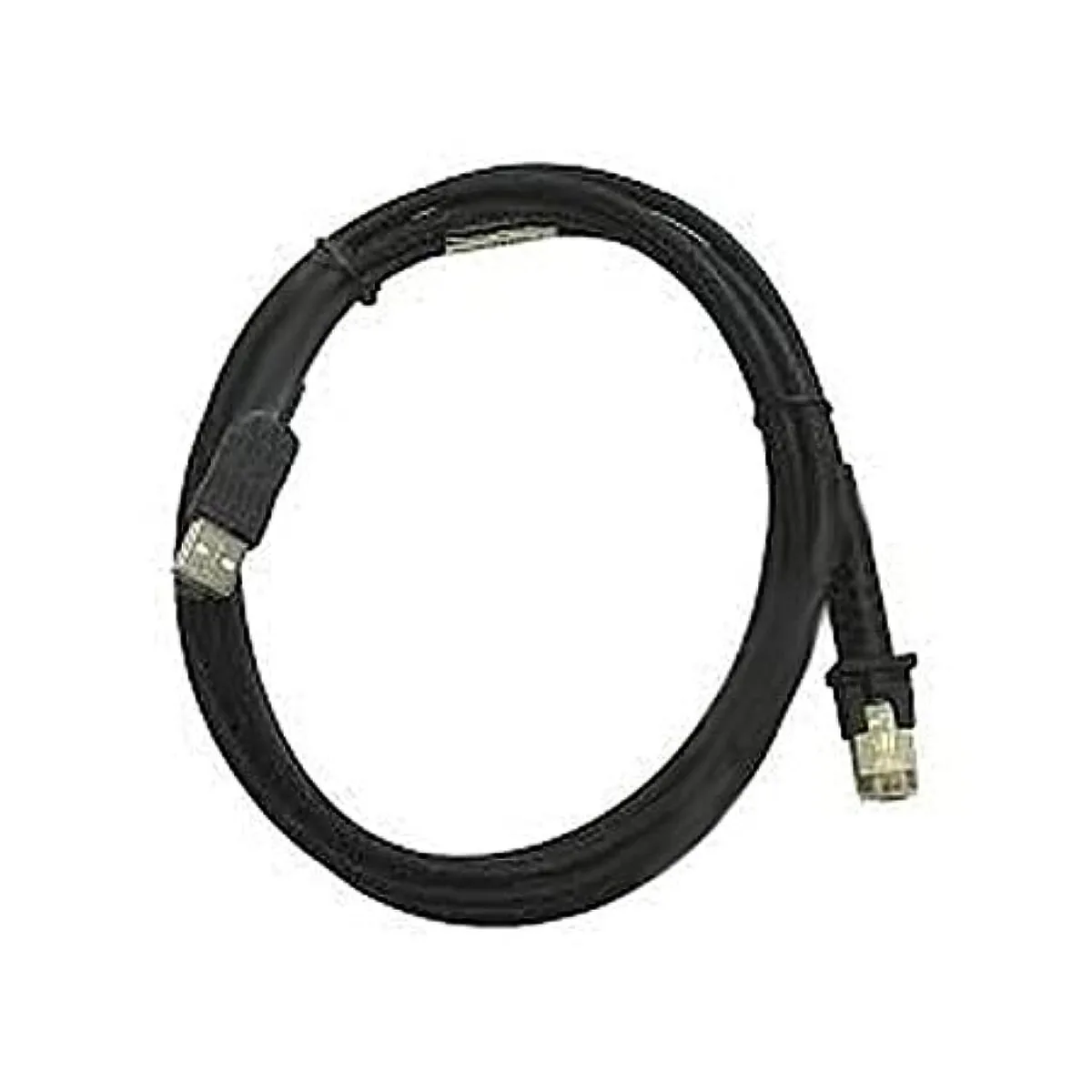

Package ContentsIncludes 90A052258 Cable (USB, Type A, TPUW, Straight, 2M, Black) and Stand
Shipping weight1.36 kg
Package size231 × 180 × 104 mm

Questions about this item

Which kit version of the QD2131 should I choose for a standard USB setup?

The QD2131-BKK1S is a USB kit that includes a 2 metre USB Type A cable and a stand, ready for direct connection to a host PC.

What does the 270 scans per second rating mean at the checkout?

It means the linear imager can capture and decode up to 270 1D barcodes every second, keeping pace with high-volume point-of-sale throughput.

Which interfaces does the scanner support and what limits the data rate?

It supports Keyboard Wedge, OEM USB, RS-232 and standard USB; the active interface is set by the cable used, and USB operation is capped by the host USB port speed.
