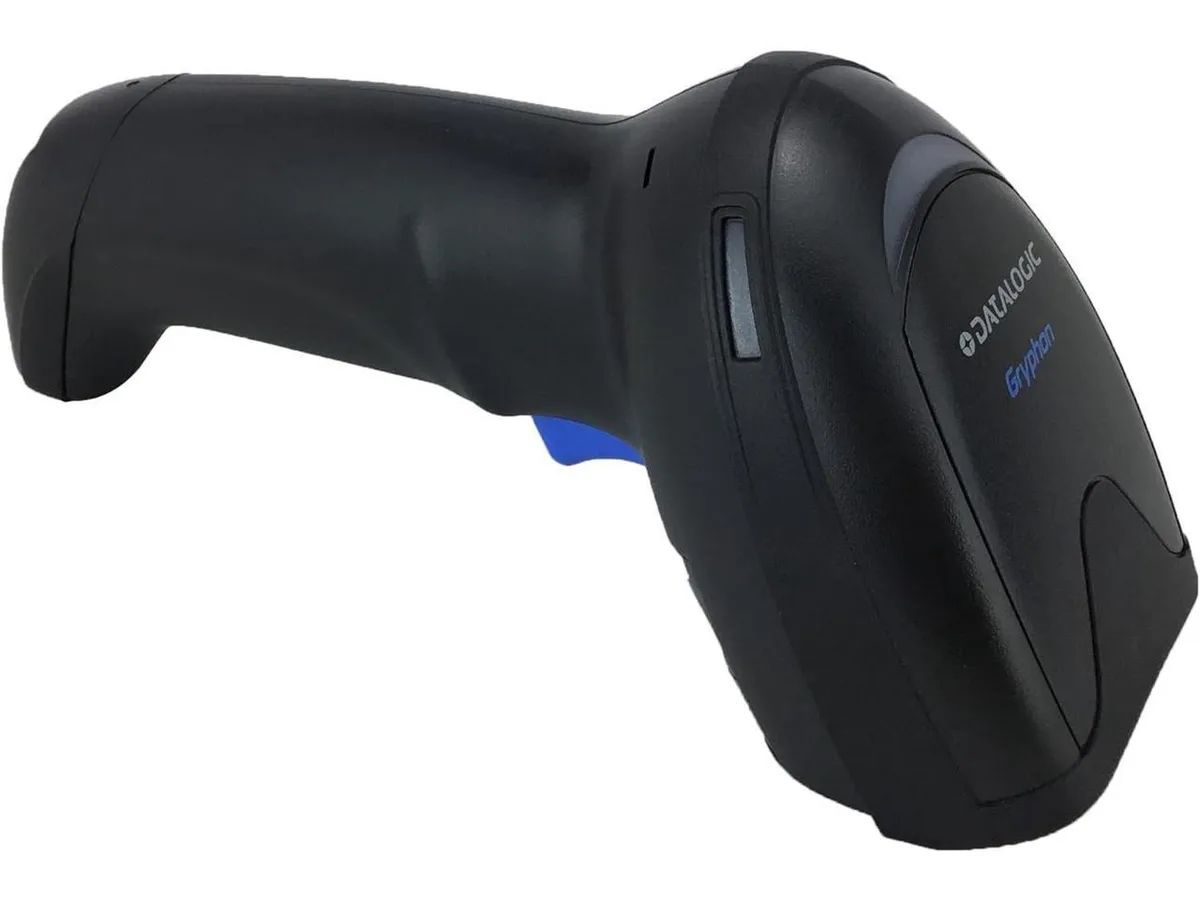

Black handheld corded barcode scanner with matte finish, curved grip and front-facing scan window

Datalogic

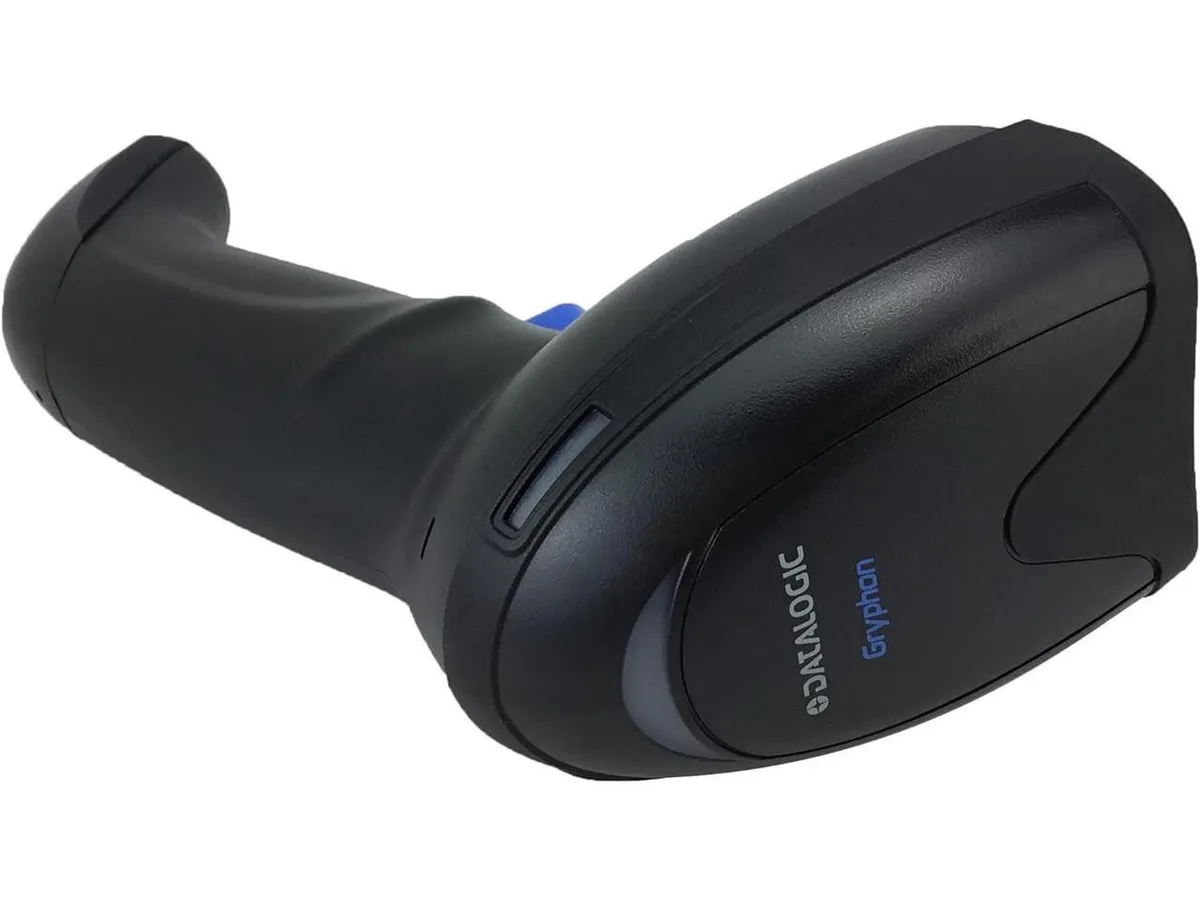

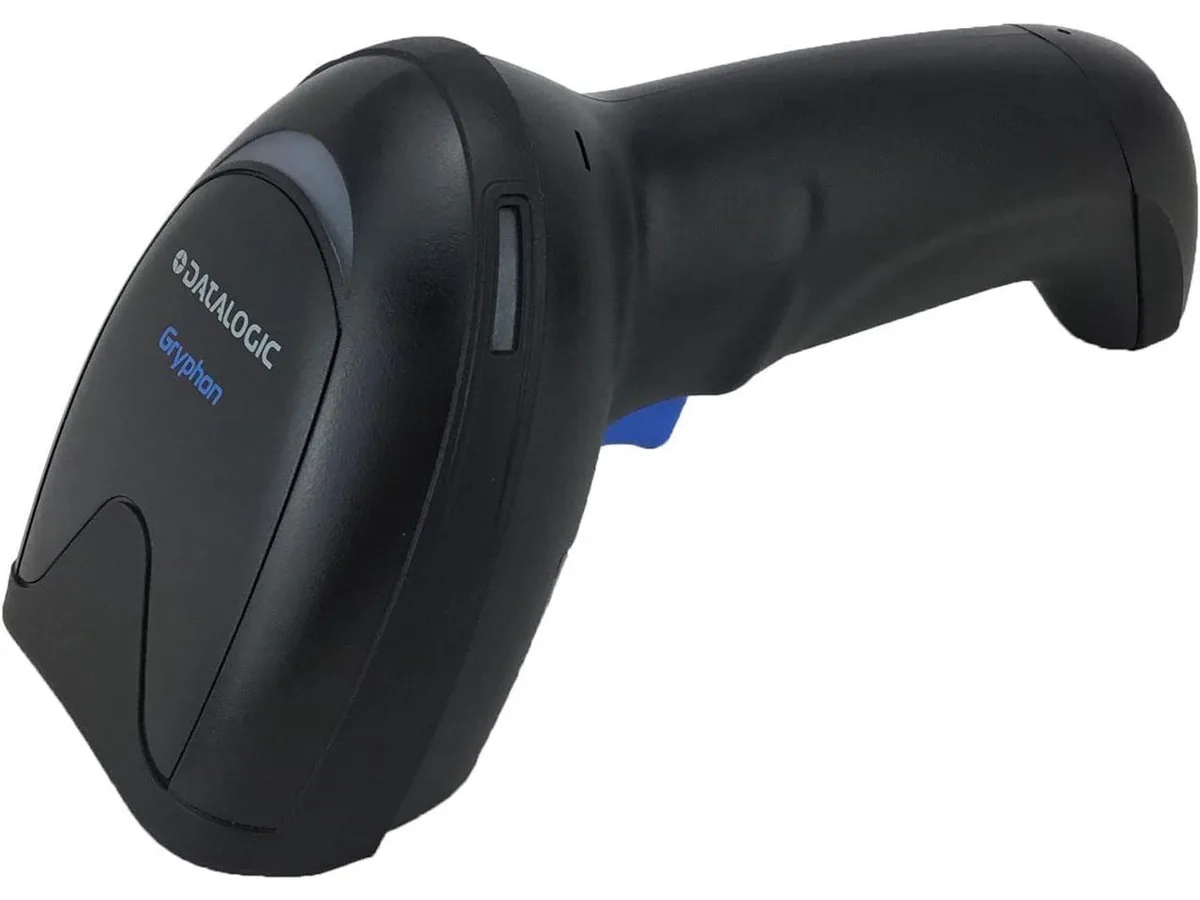

Datalogic GD4290-BK barcode scanner

SKU CH-CXT4-76DM9 MPN GD4290-BK

Handheld corded linear imager reads 1D codes from 2.0 cm to 54 cm, handles damaged or mobile barcodes, and survives 1.8 m drops

  • Light SourceIllumination: Dual LED Array 612 - 630 nm
  • Resolution0.077 mm / 3 mils
  • Depth of Scan FieldMinimum distance determined by symbol length and scan angle.
  • Print Contrast Ratio (Minimum)15%
  • Input VoltageGD4220: 5 VDC +/- 5% GD4290: 4.5 - 14.0 VDC
  • CurrentOperating (Typical): <350 mA @ 5V; <150 mA @ 12V Standby/Idl
  • Enhanced linear imaging reads high-density and low-resolution 1D codes
  • Soft line viewfinder targets codes accurately in multi-label environments
  • Green Spot and 3GL feedback confirms good reads instantly
  • Motionix motion sensing switches scanning modes automatically
  • Withstands repeated 1.8 m drops onto concrete

Premium Handheld Linear Imager

The Datalogic Gryphon GD4290-BK is a corded 1D barcode scanner built for high-volume point-of-sale and document-handling environments. Enhanced linear imaging technology reads high-density and low-resolution codes, including damaged labels and barcodes displayed on mobile screens. A soft-line viewfinder helps operators target the correct symbol quickly, while patented Green Spot and 3GL feedback confirm every good read. Motionix motion-sensing automatically switches between handheld and presentation modes for seamless workflow transitions.

Check Power and Interface Compatibility

The scanner operates on 4.5 to 14.0 VDC and draws less than 350 mA at 5 V or 150 mA at 12 V during use, with idle current below 60 mA at 5 V or 30 mA at 12 V. Verify that your host system can supply this voltage range through the USB Type-C connection. Multi-interface firmware supports USB only or USB plus additional interfaces, so confirm which configuration matches your terminal before ordering. No external power adapter is included; power is delivered over the USB cable.

Sustained-Shift Durability

Designed for continuous daily use, the unit withstands repeated drops from 1.8 m onto concrete without failure. Operating current remains stable at typical loads, and standby draw drops to minimal levels between scans, reducing thermal stress during long shifts. The scanner weighs 163.0 g and measures 16.6 x 6.8 x 10.9 cm, balancing rugged construction with ergonomic comfort for all-day handheld operation.

Highlights

  • Enhanced linear imaging reads high-density and low-resolution 1D codes
  • Soft line viewfinder targets codes accurately in multi-label environments
  • Green Spot and 3GL feedback confirms good reads instantly
  • Motionix motion sensing switches scanning modes automatically
  • Withstands repeated 1.8 m drops onto concrete

Specifications

BrandDatalogic
ModelGD4290-BK
Light SourceIllumination: Dual LED Array 612 - 630 nm
Resolution0.077 mm / 3 mils
Depth of Scan FieldMinimum distance determined by symbol length and scan
angle. Printing resolution, contrast, and ambient light
dependent.
GD4200
Code 39: 5 mils: 5 to 37 cm / 2.0 to 14.6 in
Code 39: 7.5 mils: 5 to 54 cm / 2.0 to 21.3 in
Code 39: 10 mils: 5 to 73.5 cm / 2.0 to 28.9 in
Code 39: 20 mils: 2.5 to 147 cm / 1 to 57.9 in
EAN/UPC: 13 mils: 3.5 to 90 cm / 1.4 to 35.4 in
Print Contrast Ratio (Minimum)15%
Input VoltageGD4220: 5 VDC +/- 5%
GD4290: 4.5 - 14.0 VDC
CurrentOperating (Typical): <350 mA @ 5V; <150 mA @ 12V
Standby/Idle (Typical): <60 mA @ 5V; <30 mA @ 12V
ColorBlack
DimensionsScanner: 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in
In Stand: 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in
Weight163.0 g / 5.75 oz (scanner only)
Features• Enhanced linear imaging technology for superior scanning and Depth of Field
• Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged
codes and bar codes from mobile devices
• Datalogic’s distinctive ‘soft line viewfinder’ to easily target the code to be read
• Datalogic’s patented ‘Green Spot’ technology and exclusive 3GL™ (3 Green Lights)
for superior good-read feedback
•Motionix motion-sensing technology for seamless reading mode transitions
•Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /
RS-232 / Keyboard Wedge Multi-
DropWithstands repeated drops from 1.8 m / 6.0 ft onto a
concrete surface.

Questions about this item

Does the Datalogic GD4290-BK include the USB cable in the box, or must it be purchased separately?

The scanner ships with a USB cable included, so no separate cable purchase is required.

The GD4290 operates on 4.5–14.0 VDC while the GD4220 uses 5 VDC; which version should I choose?

Choose the GD4290 when the host supplies 4.5–14.0 VDC, or the GD4220 for a strict 5 VDC supply.

What does the 0.077 mm resolution mean when scanning a 5-mil Code 39 label in practice?

At 5 mils the scanner reads from 5 to 37 cm away, so the 0.077 mm spec translates to reliable near-to-mid-range capture.
