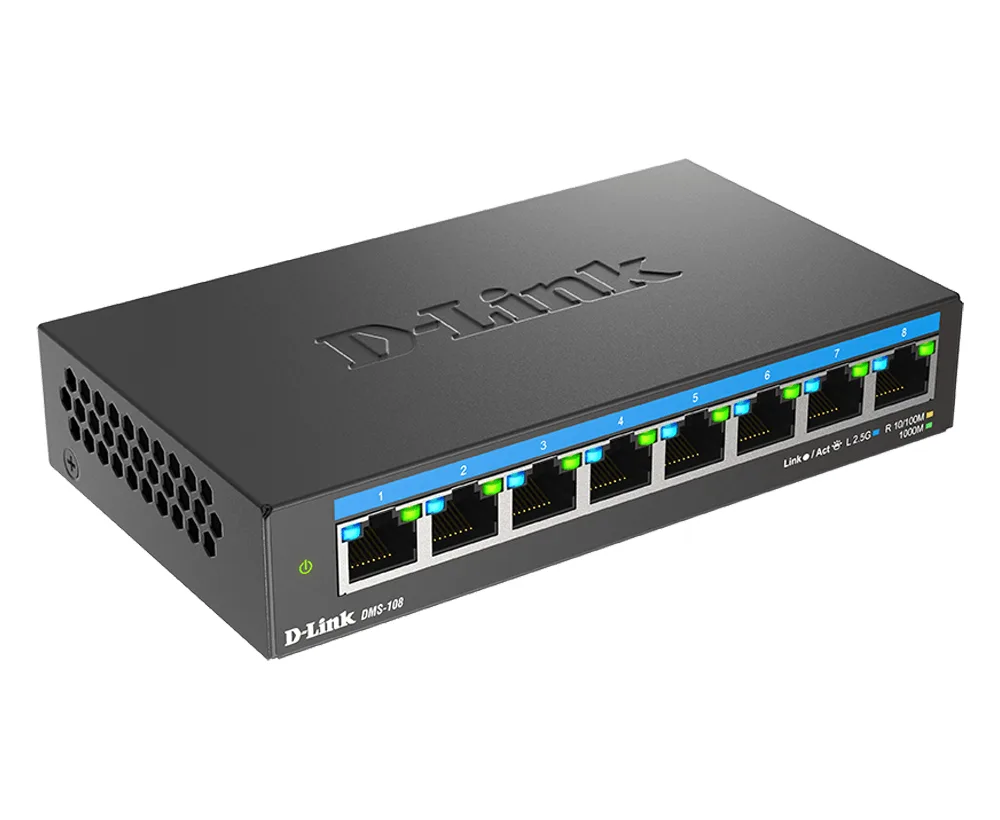

Compact metal desktop switch with eight RJ45 ports and fanless design

D-Link

D-Link DMS108 8-Port 2.5Gb Unmanaged Network Switch

SKU CH-GASN-Q2F7P MPN DMS108

Eight 2.5 Gbps ports deliver up to 40 Gbps switching capacity in a fanless metal chassis

  • FormatDesktop
  • StandardsIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000
  • Network MediaAuto MDI/MDIX adjustment for all ports
  • Network Management TypeUnmanaged
  • Uplink Ports8
  • Uplink InterfaceRJ45
  • Eight 2.5 Gbps ports deliver up to 40 Gbps switching capacity for high-bandwidth tasks

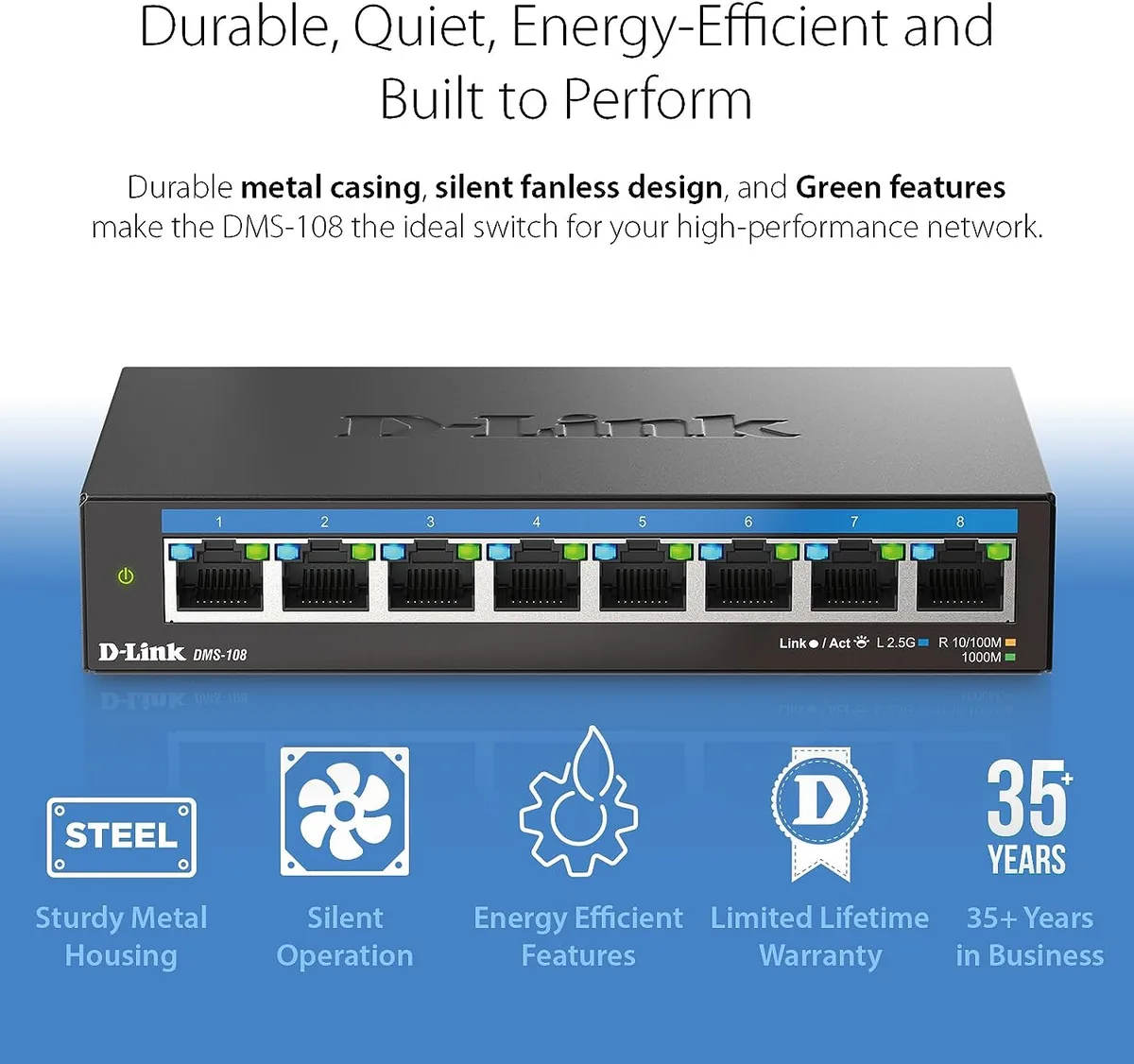

  • Fanless metal housing runs silently in desktop or rack environments
  • Auto-negotiation selects 100 Mbps, 1 Gbps or 2.5 Gbps per device for optimal throughput
  • Plug-and-play unmanaged operation requires no software or configuration
  • IEEE 802.3az Energy-Efficient Ethernet reduces power draw during low-traffic periods

Eight 2.5G ports for multi-gig networks

The D-Link DMS108 is an eight-port unmanaged switch delivering 2.5 Gbps per RJ45 port. It targets gamers, home offices and small businesses that need a simple, fanless upgrade to multi-gig bandwidth without configuration. The metal desktop chassis runs silently and supports plug-and-play deployment.

Standards limit cabling and distance

Ports auto-negotiate at 100 Mbps, 1 Gbps or 2.5 Gbps and comply with IEEE 802.3, 802.3u, 802.3ab and 802.3bz. Flow control follows 802.3x and QoS uses 802.1p. Energy-Efficient Ethernet to 802.3az reduces idle power. Maximum segment length remains the 100 metre limit of twisted-pair copper, so longer runs need fibre or additional switches.

40 Gbps switching capacity with 4K MAC table

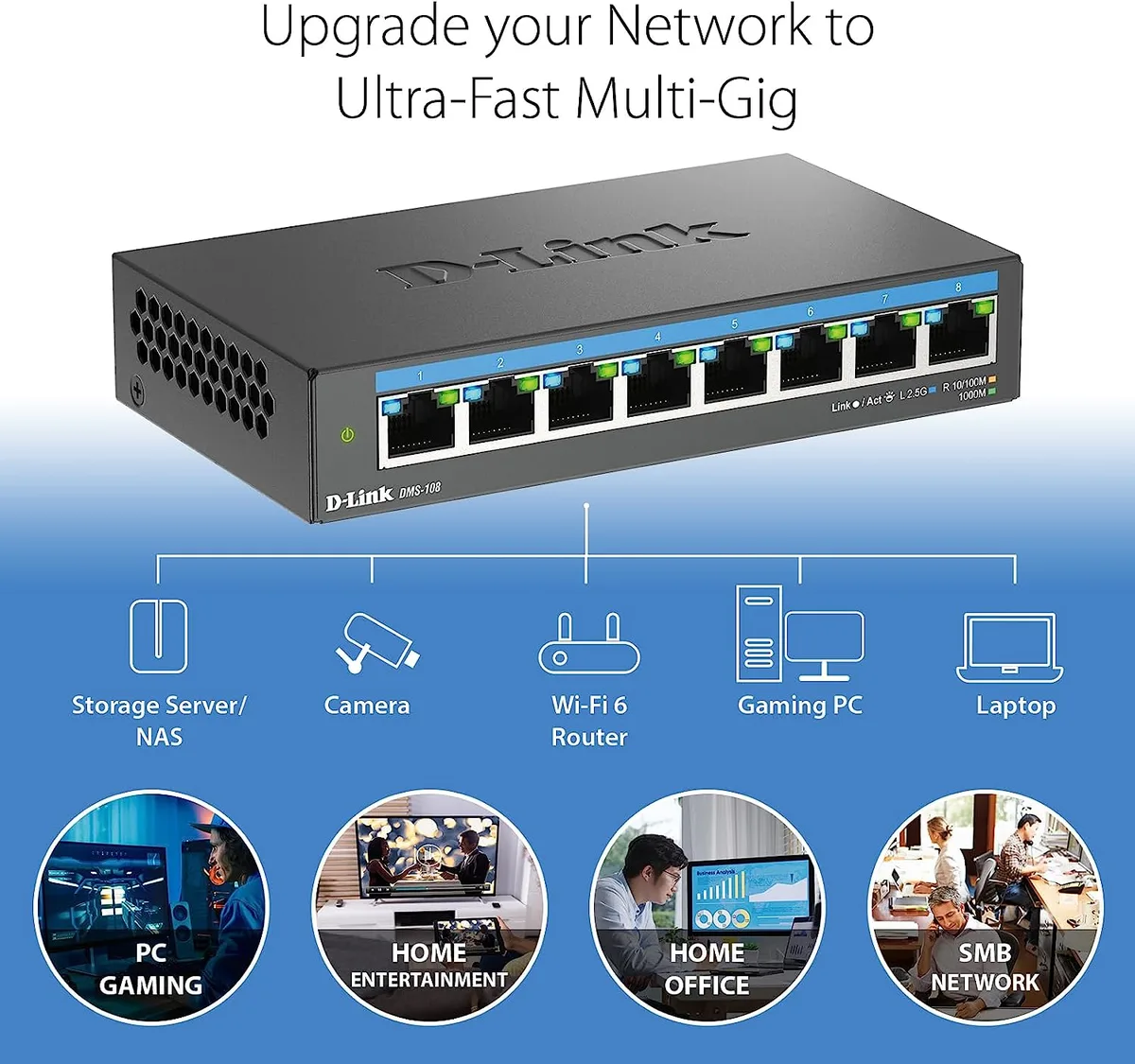

The non-blocking fabric handles 40 Gbps total throughput, enough for multiple 2.5G NAS units, Wi-Fi 6 access points and gaming PCs simultaneously. The 4K MAC address table covers typical SOHO device counts. Networks that exceed 4K entries or require managed features such as VLANs, link aggregation or remote monitoring will need a managed switch instead.

Highlights

  • Eight 2.5 Gbps ports deliver up to 40 Gbps switching capacity for high-bandwidth tasks
  • Fanless metal housing runs silently in desktop or rack environments
  • Auto-negotiation selects 100 Mbps, 1 Gbps or 2.5 Gbps per device for optimal throughput
  • Plug-and-play unmanaged operation requires no software or configuration
  • IEEE 802.3az Energy-Efficient Ethernet reduces power draw during low-traffic periods

Specifications

BrandD-Link
SeriesProSafe
ModelDMS108
Part NumberDMS-108
FormatDesktop
StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3x Flow Control1
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Network MediaAuto MDI/MDIX adjustment for all ports
Network Management TypeUnmanaged
Uplink Ports8
Uplink InterfaceRJ45
Uplink Speed10/100 Mbps
Uplink Speed/TypeRJ45
Primary Port Count8
Primary Ports8 x RJ45
Primary Port Speed2.5 Gbps
Primary Port TypeRJ45
Management InterfaceRJ45
Management FeatureDevice, Power Supply, QIG
MAC Address Table4K
Switching MethodStore and Forward
Packet Forwarding Rate8.1 Mbits
Buffer Memory768KB
IPv4 Features8 Port Multi-Gig
SNMPNo
Layer1
Layer 2 FeaturesRJ45, 40 gigabits_per_second, 8
Layer 3 FeaturesDMS-108
CablingRJ45
LEDsPower (per unit)
Link/Activity (per port)
PoE Power Budget8 Port Multi-Gig
Power12V/1A
Max Power Consumption8.586W
Dimensions5.71" x 3.23" x 1.1"
Weight0.76 lb.
CertificationSafety
- LVD
- BSMI
EMI/EMC
- CE Class B
- RCM Class B
- FCC Class B
- VCCI Class B
- IC Class B
- BSMI Class B
Max Heat Dissipation29.30 BTU/h
TemperatureOperating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
HumidityOperating: 10% to 90% RH
Storage: 5% to 90% RH
Features8, RJ45, Device, Power Supply, QIG, 40 gigabits_per_second, Metal, Black
Package ContentsDevice, Power Supply, QIG
Shipping weight0.91 kg
Package size160 × 97 × 94 mm

Questions about this item

Should I pick the 8-port model or a different port count?

The DMS108 provides eight 2.5G RJ45 ports, giving you 40Gbps total switching capacity. If you need more than eight wired connections, you would need a larger switch; if you need fewer, this model still runs fanless and silent with unused ports.

What does the 40Gbps switching capacity mean for my actual network?

It means the internal fabric can handle full 2.5Gbps line-rate traffic on all eight ports simultaneously without blocking, so multiple 2.5G NAS units, Wi-Fi 6 access points or gaming PCs can transfer data at full speed at the same time.

Which Ethernet standard do the ports use and what speed does it cap at?

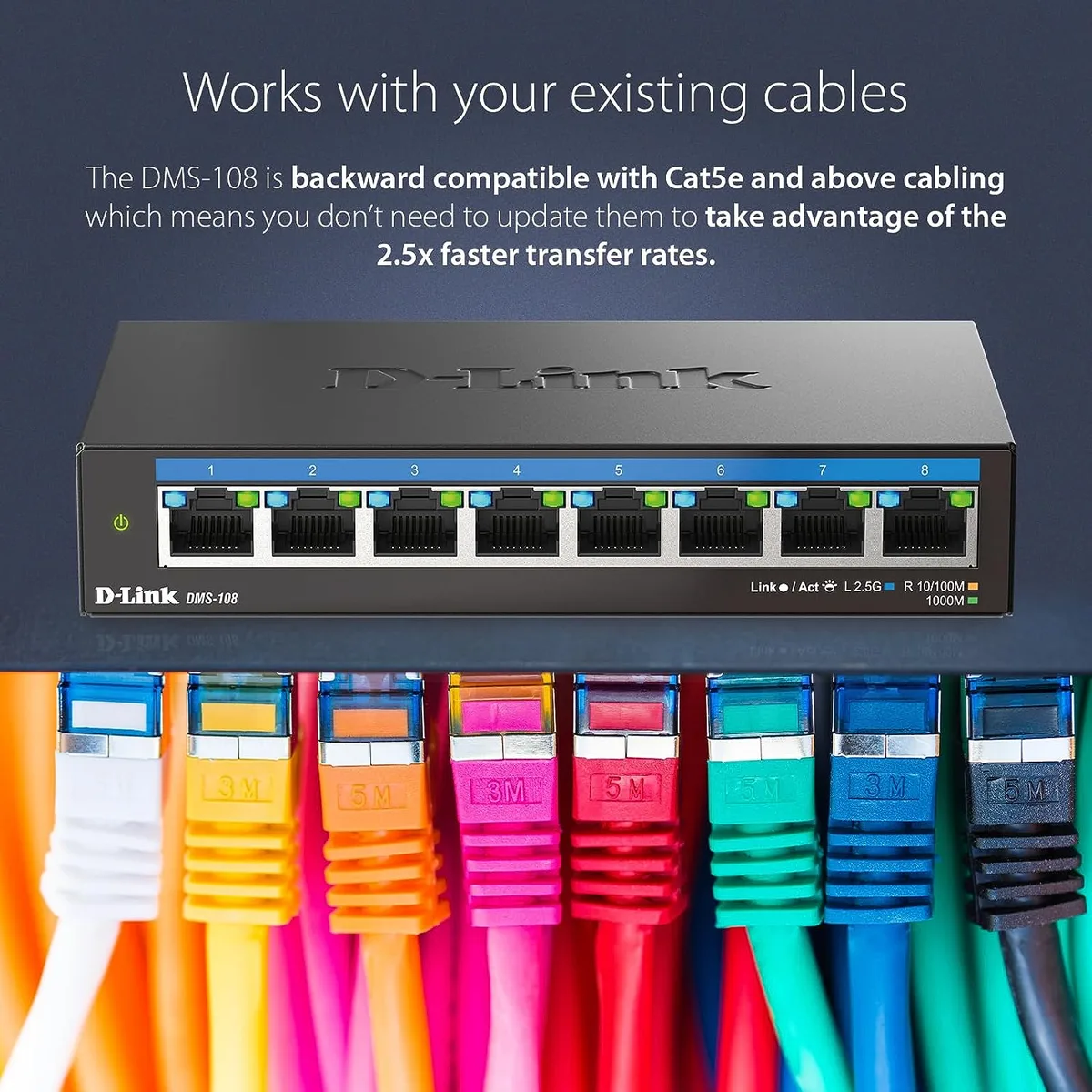

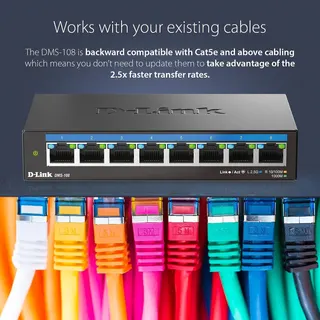

Each port follows IEEE 802.3bz 2.5GBASE-T and auto-negotiates down to 1Gbps or 100Mbps, so the practical ceiling per port is 2.5Gbps when connected with Cat5e or better cabling.
