D-Link
D-Link DKVM-16 16-port KVM switch with daisy-chain to 128 computers
16-port PS/2 and VGA KVM switch supporting 1920 x 1440 resolution with daisy-chain expansion to 128 computers
- TypeD-Sub, PS/2
- PC Connectors16 x 6-pin Mini-DIN Female PS/2 16 x 6-pin Mini-DIN Female P
- Console Connectors6-pin Mini-DIN Female PS/2 6-pin Mini-DIN Female PS/2 15-pin
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video Resolution1920 x 1440
- Control 16 computers from one console with 16 PS/2 and VGA ports
- Expand to 128 systems using the built-in daisy-chain port
- Switch instantly via push buttons, hot keys or on-screen display
- Auto-scan monitors at adjustable 5 to 99 second intervals
- Supports video resolutions up to 1920 x 1440 on VGA, SVGA, XGA and MultiSync displays
16-port KVM with daisy-chain expansion

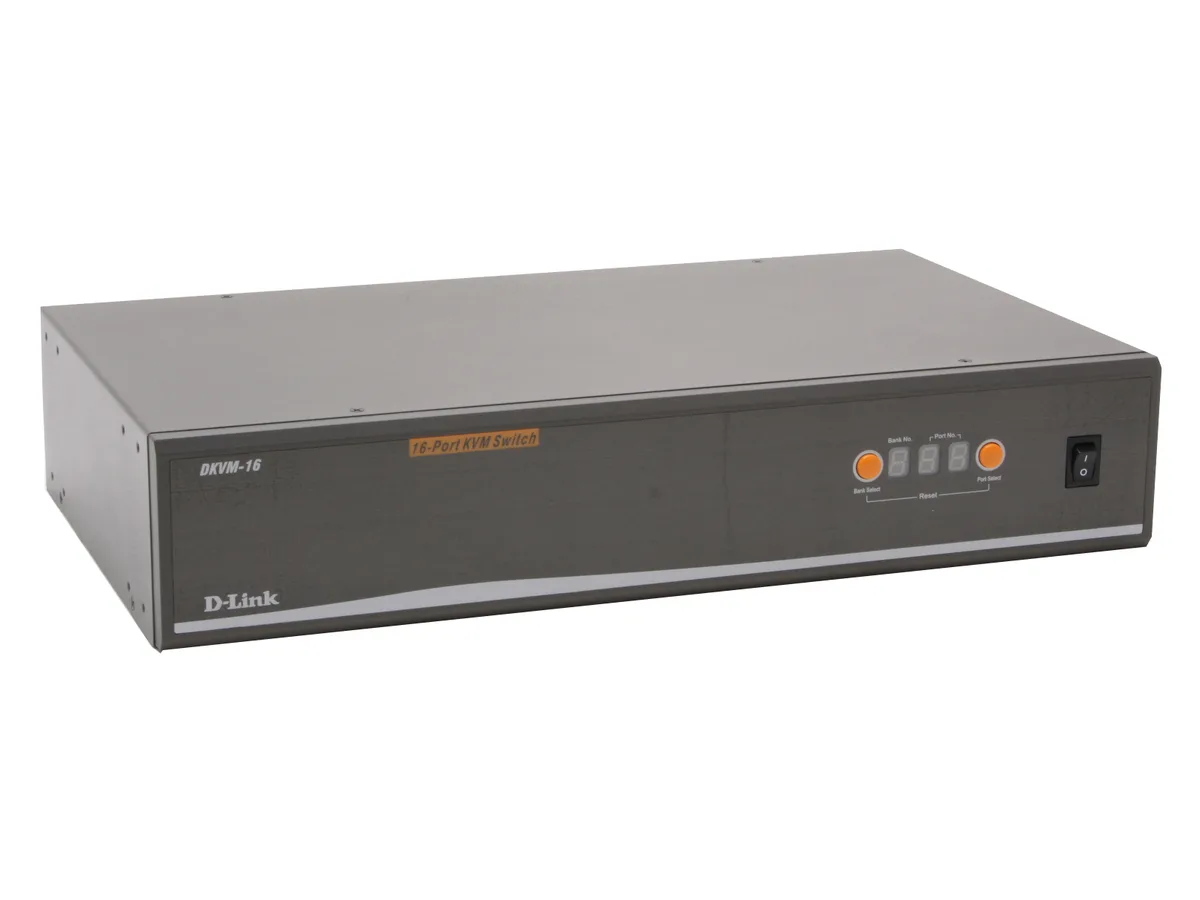

The D-Link DKVM-16 is a rackmount KVM switch that lets a single keyboard, monitor and mouse control up to sixteen PS/2 computers. It is built for server rooms and labs where administrators need direct hardware access to multiple legacy systems without extra peripherals.
PS/2 and VGA connectors with rackmount kit

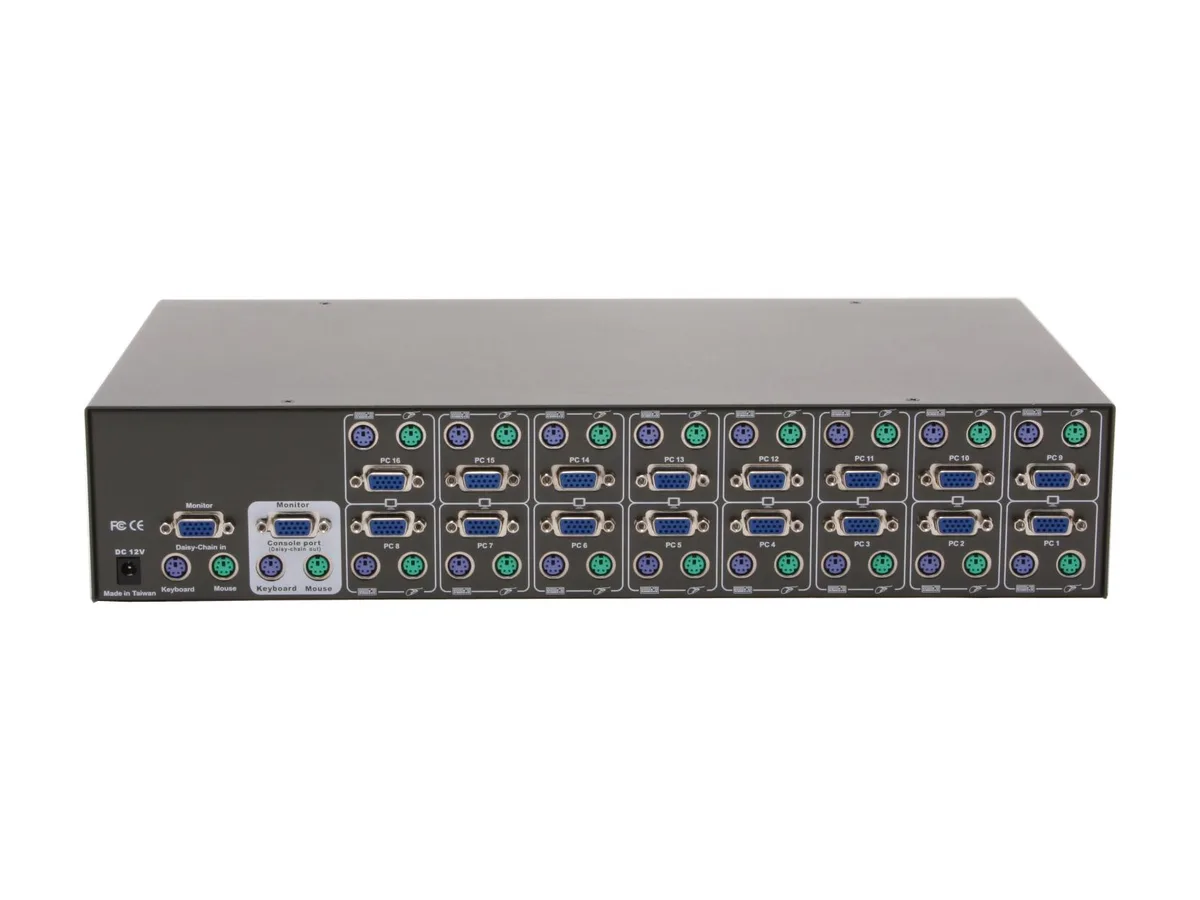

The unit provides sixteen sets of 6-pin Mini-DIN and 15-pin HDDB ports for computer links, plus one matching console set. A 12 V power adapter and rackmount brackets are included, so the switch fits a standard 19-inch rack and draws power from a wall outlet rather than the attached machines.
Video limited to 1920 x 1440 and PS/2-only consoles
The analogue VGA path tops out at 1920 x 1440, so modern high-resolution displays will downscale. Keyboard and mouse must use PS/2 plugs; USB or serial devices are not supported. Daisy-chaining extends control to 128 computers, yet the single console port remains a bottleneck for simultaneous work.
Highlights
- Control 16 computers from one console with 16 PS/2 and VGA ports
- Expand to 128 systems using the built-in daisy-chain port
- Switch instantly via push buttons, hot keys or on-screen display
- Auto-scan monitors at adjustable 5 to 99 second intervals
- Supports video resolutions up to 1920 x 1440 on VGA, SVGA, XGA and MultiSync displays
Specifications
| Brand | D-Link |
|---|---|
| Model | DKVM-16 |
| Type | D-Sub, PS/2 |
| PC Connectors | 16 x 6-pin Mini-DIN Female PS/2 16 x 6-pin Mini-DIN Female PS/2 16 x 15-pin HDDB Female VGA,SVGA, XGA, MultiSync |
| Console Connectors | 6-pin Mini-DIN Female PS/2 6-pin Mini-DIN Female PS/2 15-pin HDDB Female VGA,SVGA, XGA, MultiSync |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1440 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 5-99 seconds |
| Monitors Supported | VGA, SVGA, XGA and MultiSync |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | 12V 1A AC Adapter |
| Features | Daisy Chain Port Allows Control of Up to 128 Computers Password Protected Security Convenient Hot Keys and Push Buttons |
| Dimensions | 16.0" x 9.0" x 3.3" |
| Weight | 7.72 lbs. |

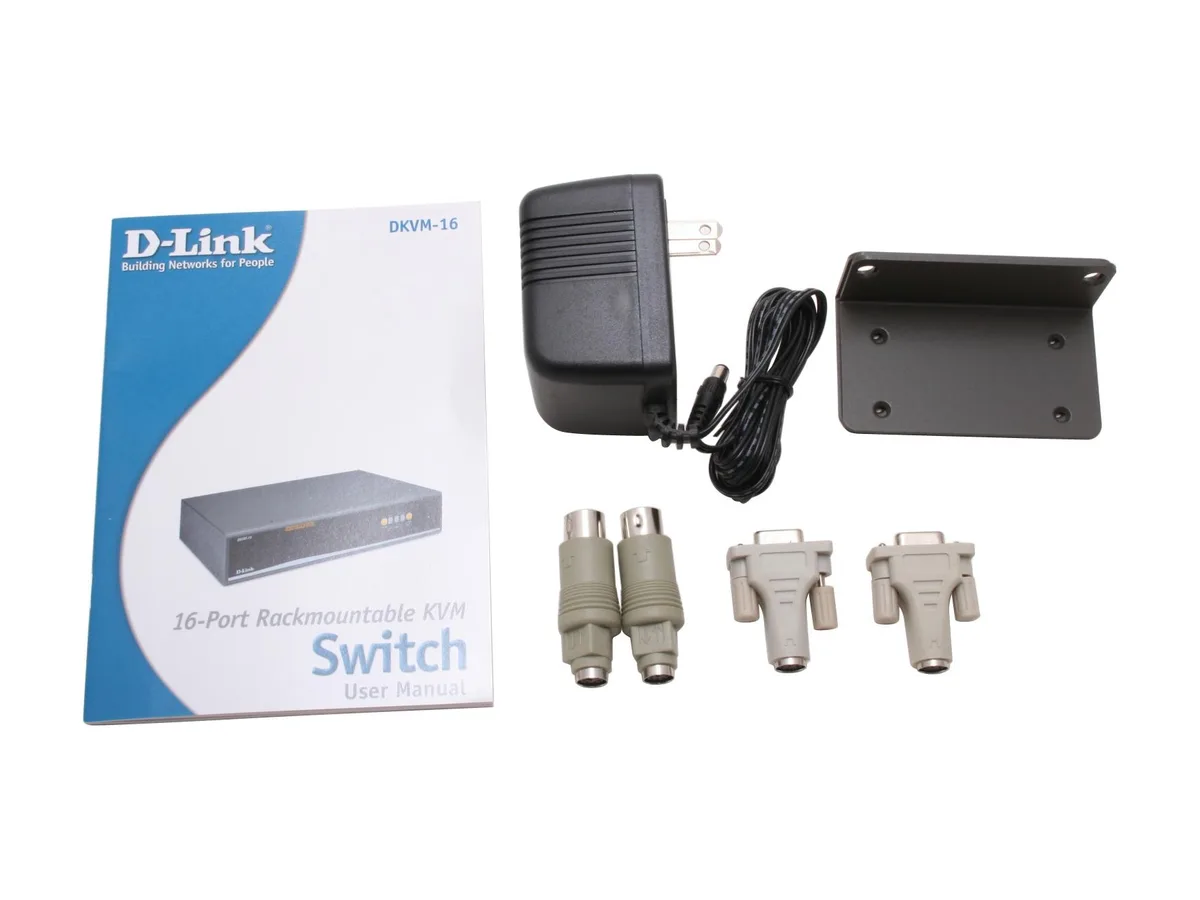

| Package Contents | DKVM-16 KVM Switch User Manual Power Adapter Rackmount Kit |
| Shipping weight | 8.17 kg |
| Package size | 406 × 229 × 76 mm |
Questions about this item
What video resolution does the DKVM-16 support on its VGA console port?
The console VGA port supports up to 1920 x 1440 resolution for VGA, SVGA, XGA and MultiSync monitors.
What rack space and clearance does the 16-port chassis require?
The unit measures 16.0" wide, 9.0" deep and 3.3" high, weighs 7.72 lbs, and includes a rackmount kit for standard 19-inch racks.
How do you expand the switch beyond 16 computers using the daisy-chain port?
Connect the daisy-chain port to another compatible KVM switch using a proprietary cable; the combined system can address up to 128 computers via OSD or hot keys.
