Two compact white powerline adapters with Ethernet ports and status LEDs

D-Link

D-Link DHP-309AV Powerline Networking AV500 Mini Adapter Starter Kit

SKU CH-60HY-WSXEM MPN DHP-309AV

A two-adapter kit that turns household wiring into a 500 Mbps network link with 128-bit AES encryption and 10/100 Ethernet ports

  • StandardsIEEE802.3/3u, HomePlug AV
  • Encryption128-bit AES Encryption
  • Ports10/100Base RJ-45
  • LEDsPower, PowerLine, Ethernet
  • CertificationsFCC, CE, UL, LVD
  • Powerline SpeedsUp to 500Mbps
  • Extend network reach using existing electrical wiring
  • Plug-and-play setup with no configuration required
  • 128-bit AES encryption secures data across the line
  • Two compact adapters fit discreetly in any outlet
  • Up to 500 Mbps powerline speed for wired devices

Powerline AV500 starter kit

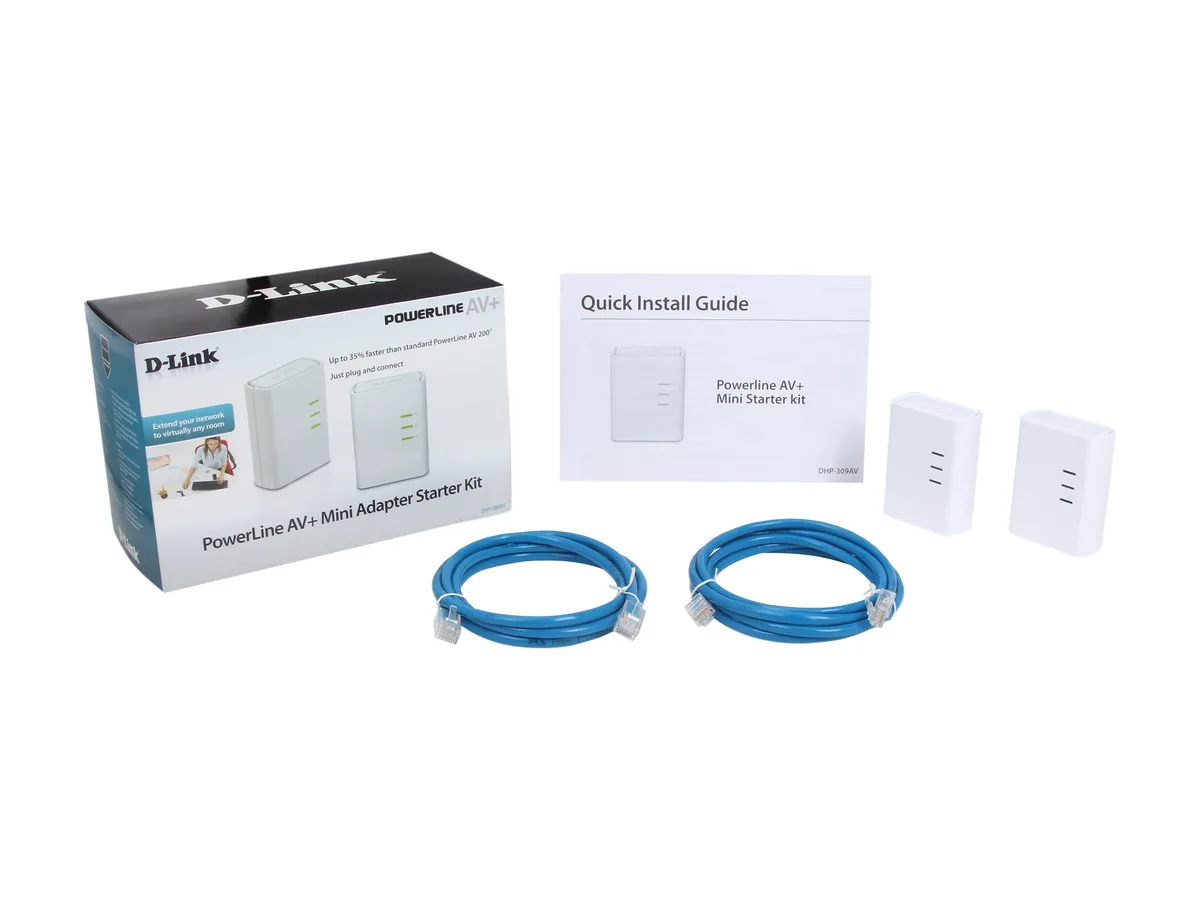

The D-Link DHP-309AV kit contains two compact PowerLine AV+ Mini Adapters and two Ethernet cables. It uses existing electrical wiring to extend a network without new cabling. Adapters support HomePlug AV with up to 500Mbps powerline speeds and 128-bit AES encryption.

Homes without Ethernet runs

Suits households that need a wired link in rooms where Wi-Fi is unreliable and running cable is impractical. Not for buyers who need gigabit wired throughput or who want more than two endpoints without purchasing extra adapters.

10/100 Ethernet port limit

Each adapter provides a single 10/100Base RJ-45 port, capping wired throughput at 100Mbps even though the powerline link is rated at 500Mbps. This port speed decides whether the kit matches the required local network performance.

Highlights

  • Extend network reach using existing electrical wiring
  • Plug-and-play setup with no configuration required
  • 128-bit AES encryption secures data across the line
  • Two compact adapters fit discreetly in any outlet
  • Up to 500 Mbps powerline speed for wired devices

Specifications

BrandD-Link
ModelDHP-309AV
StandardsIEEE802.3/3u, HomePlug AV
Encryption128-bit AES Encryption
Ports10/100Base RJ-45
LEDsPower, PowerLine, Ethernet
CertificationsFCC, CE, UL, LVD
Powerline SpeedsUp to 500Mbps
Connection TypeRJ45
Connection Speeds10/100M
Kit TypeDouble
Power Supply100~240VAC, 50~60Hz
System RequirementFor Internet Access:
Cable or DSL Modem
Router
Subscription with an Internet Service Provider (ISP)
For Network: 2 or more PowerLine AV Devices.
Temperature0°C ~ 40°C
Humidity10% ~ 90% Non-condensing
FeaturesCreate a PowerLine Network right out of the box
Uses your home's existing electrical wiring by plugging into existing power outlets
Compact elegant design
Speeds up to 200Mbps
Power Saving Mode
Push and Secure encryption button
Supports 128-bit AES encryption for network security
Plug & Play Installation.
Dimensions2.7" x 2.1" x 1.0"
Weight0.23 lbs.
Package Contents2 PowerLine AV+ Mini Adapters (DHP-308AV)
2 Ethernet Cables
Shipping weight0.30 kg
Package size142 × 109 × 97 mm

Questions about this item

How do I pair the two adapters and which step do people often skip?

Plug both units directly into wall sockets, connect each to your router or device with the supplied Ethernet cables, then press the encryption button on one adapter and within two minutes press the button on the second; the step most users miss is waiting for the PowerLine LED to turn solid before releasing the button.

What part will need attention or replacement after extended use?

The RJ-45 ports and internal power supply are the only components that can degrade; keep the adapters in the 0°C to 40°C operating range and avoid power strips to maximise their service life.

What is the first performance limit I will hit during a long file transfer?

The 10/100 Mbps Ethernet port caps sustained throughput well below the 500 Mbps powerline rating, so wired speed becomes the bottleneck before the HomePlug AV link does.
