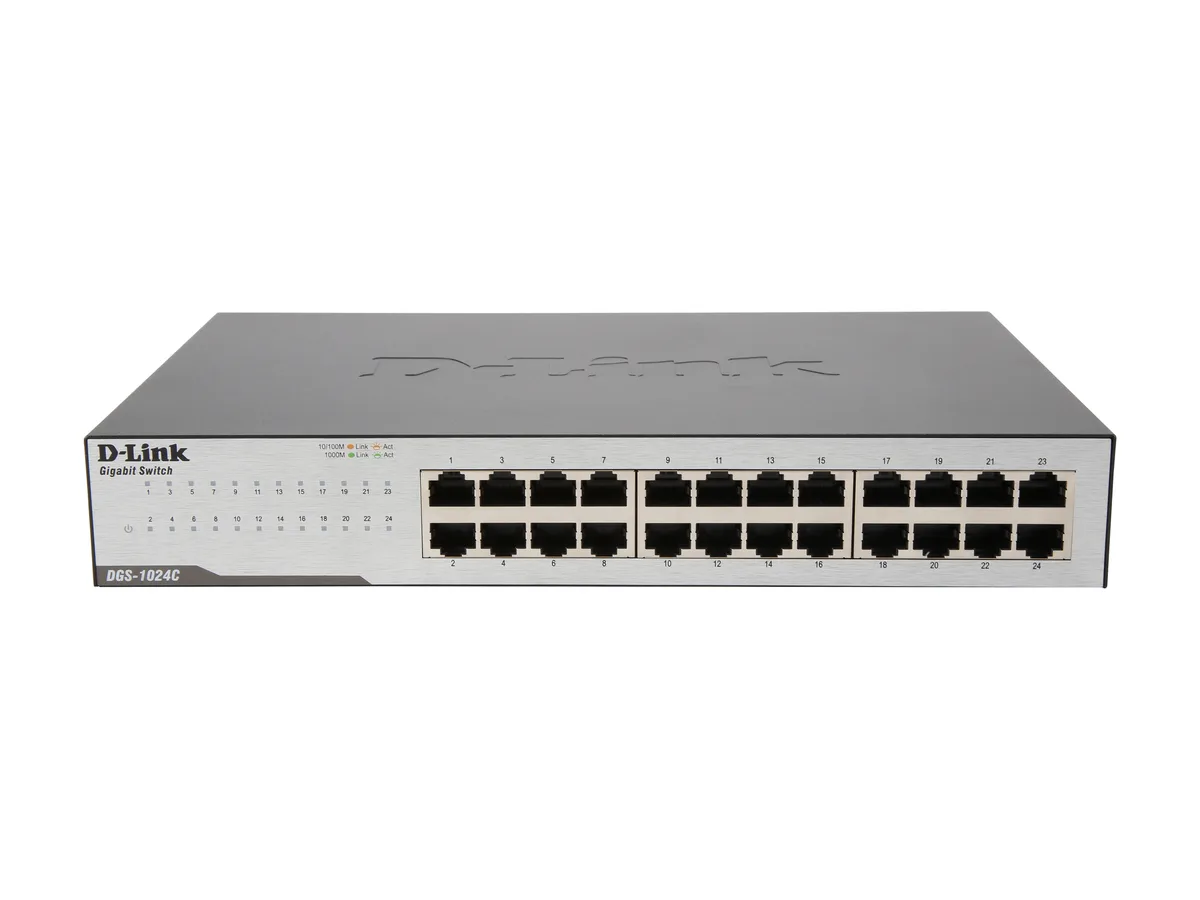

Silver metal rectangular box with 24 RJ45 ports and LED indicators on the front

D-Link

D-Link DGS-1024C 24-port Gigabit unmanaged network switch

SKU CH-WA2B-3FS94 MPN DGS-1024C

A 24-port Gigabit unmanaged switch with QoS and Energy-Efficient Ethernet for SOHO networks

  • StandardsIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000
  • Network Management TypeUnmanaged
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • Switching MethodStore and Forward
  • 24 Gigabit ports connect up to 24 devices for fast file transfers
  • Plug-and-play unmanaged operation requires no configuration to start working
  • IEEE 802.3az Energy-Efficient Ethernet reduces power consumption automatically when ports are idle
  • 8K MAC address table and store-and-forward switching handle traffic efficiently
  • Per-port LED indicators show link, activity and speed status at a glance

24-Port Gigabit Unmanaged Switch

The D-Link DGS-1024C is a 24-port unmanaged network switch designed for small offices and home offices that need simple, high-speed wired connectivity. It provides 24 RJ45 ports operating at 10/100/1000 Mbps, allowing up to 24 devices to connect for fast file transfers and smooth media streaming. Plug-and-play installation requires no configuration, making it an economical choice for expanding a local area network without management overhead.

Suits growing SOHO networks.

This switch suits small to medium businesses and home offices that want to add many Gigabit connections instantly without software setup. QoS support prioritises latency-sensitive traffic such as VoIP calls and streaming media. Buyers who need VLAN segmentation, SNMP monitoring, port mirroring or any Layer 2 management features should look at a managed switch instead, as this model offers no configuration interface.

8K MAC address table capacity

The switch uses a store-and-forward switching method with a 512 KB buffer and an 8K-entry MAC address table to handle frame forwarding across all 24 ports. IEEE 802.3az Energy-Efficient Ethernet automatically reduces power on inactive or short-cable links, with maximum consumption of 15.4 W and standby draw of 4.4 W. Per-port LEDs show link, activity and speed status, while a single power LED confirms the unit is live.

Highlights

  • 24 Gigabit ports connect up to 24 devices for fast file transfers
  • Plug-and-play unmanaged operation requires no configuration to start working
  • IEEE 802.3az Energy-Efficient Ethernet reduces power consumption automatically when ports are idle
  • 8K MAC address table and store-and-forward switching handle traffic efficiently
  • Per-port LED indicators show link, activity and speed status at a glance

Specifications

BrandD-Link
ModelDGS-1024C
StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Network Management TypeUnmanaged
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
Buffer Memory512KB
ProtocolsTCP/IP
LEDsPer port: Link / Activity / Speed
Per device: Power
PowerPower Input: 100 to 240V AC
Power Consumption:
Standby: 4.4W
Maximum: 15.4W
FeaturesGigabit High-Speed Networking
Gigabit ports allow you to connect up to 24 devices for fast file transfers and smooth media streaming
Intelligent Data Streaming
QoS support enables uninterrupted VoIP calls, smooth streaming video, and quick file transfers over your network
Energy Efficient
Uses 802.3az Energy-Efficient Ethernet to reduce power usage automatically without sacrificing performance
Dimensions1.73" x 11.02" x 7.01"
Weight2.98 lbs.
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Shipping weight2.16 kg
Package size439 × 246 × 79 mm

Questions about this item

What limits throughput when all 24 ports run at full speed for hours?

The 512 KB buffer and 8K MAC table handle burst traffic, but sustained line-rate loads across every port can exceed internal bandwidth.

How loud and hot does the DGS-1024C get during all-day operation?

Fanless design keeps it silent; maximum draw is 15.4 W and the chassis is rated for 0–40 °C operating temperature.

What cables and power source must I already have to use this switch?

Standard Ethernet cables (Cat 5e or better) for each device and a 100–240 V AC mains outlet for the built-in power supply.
