Slim metal desktop switch with sixteen RJ45 ports

D-Link

D-Link DGS-1016S 16-Port Gigabit Unmanaged Switch

SKU CH-KA8E-FR6PW

Sixteen Gigabit RJ45 ports in a fanless metal desktop switch with 768 KB buffer and IEEE 802.3az efficiency

  • FormatDesktop
  • StandardsPassive PoE
  • Network MediaRJ45
  • Network Management TypeUnmanaged
  • Uplink Ports8
  • Uplink InterfaceRJ45
  • 16 Gigabit ports connect up to 16 devices for fast transfers
  • Fanless metal chassis runs silently in noise-sensitive spaces
  • IEEE 802.3az Energy Efficient Ethernet lowers power use and heat
  • QoS prioritises VoIP and surveillance traffic during heavy loads
  • 768 KB buffer and 1000 Mbps forwarding rate keep data moving smoothly

Compact 16-Port Gigabit Switch

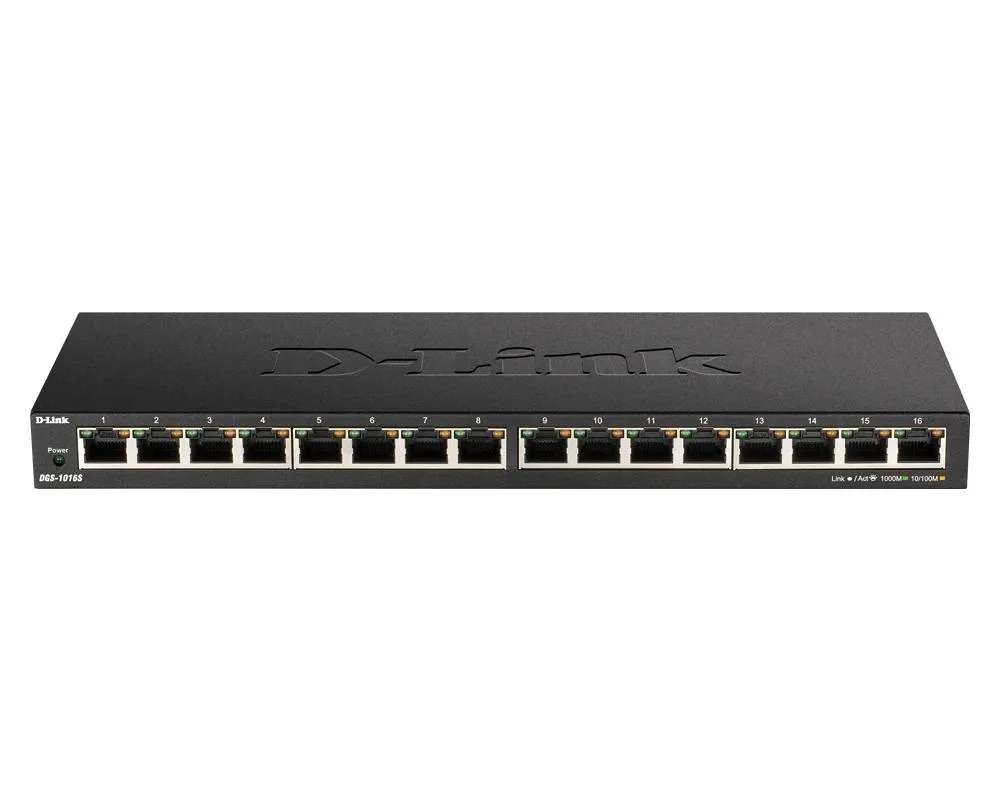

The D-Link DGS-1016S is a desktop unmanaged switch with sixteen RJ45 ports operating at 10, 100 and 1000 Mbps. It targets small offices or home networks that need silent, plug-and-play connectivity for up to sixteen wired devices. The fanless metal chassis keeps operation quiet in noise-sensitive rooms. No configuration is required to start passing traffic.

Sustained Load Behaviour

A 768 KB buffer absorbs bursty traffic while QoS prioritises time-sensitive streams such as VoIP or surveillance footage during congestion. IEEE 802.3az Energy Efficient Ethernet reduces power draw and heat when ports are idle or lightly loaded. The fanless design relies on passive cooling, so continuous full-rate forwarding on all sixteen ports stays within thermal limits without audible noise. Packet forwarding rate is rated at 1000 megabits per second.

Upgrade Context

This unit replaces older 10/100 switches or smaller port-count hubs when more Gigabit endpoints are needed. The jump is worth it when a network has outgrown an 8-port device and requires silent, unmanaged expansion without adding managed complexity. It does not suit installations that need PoE power delivery, fibre uplinks or VLAN segmentation. Buyers needing rack-mount brackets or redundant power should look elsewhere.

Highlights

  • 16 Gigabit ports connect up to 16 devices for fast transfers
  • Fanless metal chassis runs silently in noise-sensitive spaces
  • IEEE 802.3az Energy Efficient Ethernet lowers power use and heat
  • QoS prioritises VoIP and surveillance traffic during heavy loads
  • 768 KB buffer and 1000 Mbps forwarding rate keep data moving smoothly

Specifications

BrandD-Link
SeriesProSafe
Part NumberDGS-1016S
FormatDesktop
StandardsPassive PoE
Network MediaRJ45
Network Management TypeUnmanaged
Uplink Ports8
Uplink InterfaceRJ45
Uplink Speed10/100 Mbps
Uplink Speed/TypeRJ45
Primary Port Count16
Primary Ports16 x SFP + 8 x RJ45
Primary Port Speed10/100Mbps + 1000Mbps
Primary Port TypeRJ45
Management InterfaceRJ45
Management Feature1x switch, 1x QIG, 1x power adapter
Packet Forwarding Rate1000 megabits_per_second
Buffer Memory768KB
IPv4 Features16-Port Gigabit Ethernet Switch
SNMPNo
Layer1
Layer 2 FeaturesRJ45, 1000 megabits_per_second, 16
Layer 3 FeaturesDGS-1016S
CablingRJ45
PoE Power Budget16-Port Gigabit Ethernet Switch
PowerAC 120/230 V ( 50/60 Hz )
Max Power Consumption1 amps, 12 volts_of_direct_current
Dimensions14.33in W x 12.83in H x 9.06in D
Weight1.4 pounds
Certificationtrue, not_applicable
Features16, RJ45, 1x switch, 1x QIG, 1x power adapter, 1000 megabits_per_second, Metal, Black
Package Contents1x switch, 1x QIG, 1x power adapter

Questions about this item

Does the fanless DGS-1016S stay quiet and cool when running all day?

Yes, the fanless design provides silent operation and the IEEE 802.3az Energy Efficient Ethernet compliance reduces heat and power consumption during continuous use.

What cables and power source are needed to start using the 16 RJ45 ports?

You need standard Ethernet cables with RJ45 connectors for each device and a mains socket for the included external power adapter.

Will the 10/100/1000 Mbps ports work with my older 10/100 Mbps devices?

Yes, each of the 16 ports auto-negotiates speed so legacy 10/100 Mbps gear connects at its maximum rate while Gigabit devices run at 1000 Mbps.
