Compact metal desktop network switch with five RJ45 ports

D-Link

D-Link DGS-1005P 5-Port Gigabit Desktop Network Switch with 4 PoE Ports

SKU CH-W4XB-42H2F MPN DGS-1005P

A five-port Gigabit desktop switch supplies power over Ethernet to four connected devices

  • FormatDesktop
  • StandardsIEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table2K
  • Switching MethodStore and Forward
  • Four PoE ports power devices without extra cables
  • Five Gigabit ports deliver 10/100/1000 Mbps wired speed
  • Store-and-forward switching with 802.3x flow control ensures reliable data transfer
  • Compact metal desktop design fits tight spaces at 1.10 x 3.94 x 3.86 inches
  • Silent fanless operation runs 0 to 40 °C with 64.5 W max PoE budget

5-Port Gigabit Switch with 4 PoE Ports

The D-Link DGS-1005P is an unmanaged desktop switch providing five 10/100/1000 Mbps RJ45 ports. Four ports deliver Power over Ethernet with a 64.5 W maximum power budget. It uses store-and-forward switching with a 2K MAC address table and 64 KB buffer memory. A metal enclosure and external 53.5 V power adapter complete the unit.

Ideal for IP Cameras and Access Points

This switch suits installers connecting PoE devices such as IP cameras, VoIP phones or wireless access points without separate power supplies. It requires no configuration and operates silently at 0 to 40 °C. Buyers needing managed features, SFP uplinks or a larger PoE budget for many high-power devices should consider other options.

64.5 W Total PoE Power Budget

The single specification that decides suitability is the 64.5 W maximum PoE power consumption across all four PoE ports. Each connected device draws from this shared pool so the total demand must stay within this limit. The external adapter supplies 53.5 V at 1.2 A to support this budget.

Highlights

  • Four PoE ports power devices without extra cables
  • Five Gigabit ports deliver 10/100/1000 Mbps wired speed
  • Store-and-forward switching with 802.3x flow control ensures reliable data transfer
  • Compact metal desktop design fits tight spaces at 1.10 x 3.94 x 3.86 inches
  • Silent fanless operation runs 0 to 40 °C with 64.5 W max PoE budget

Specifications

BrandD-Link
ModelDGS-1005P
FormatDesktop
StandardsIEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x flow control
IEEE 802.1p QoS
ANSI / IEEE 802.3 NWay auto-negotiation
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table2K
Switching MethodStore and Forward
Buffer Memory64KB
ProtocolsTCP/IP
PoEYes

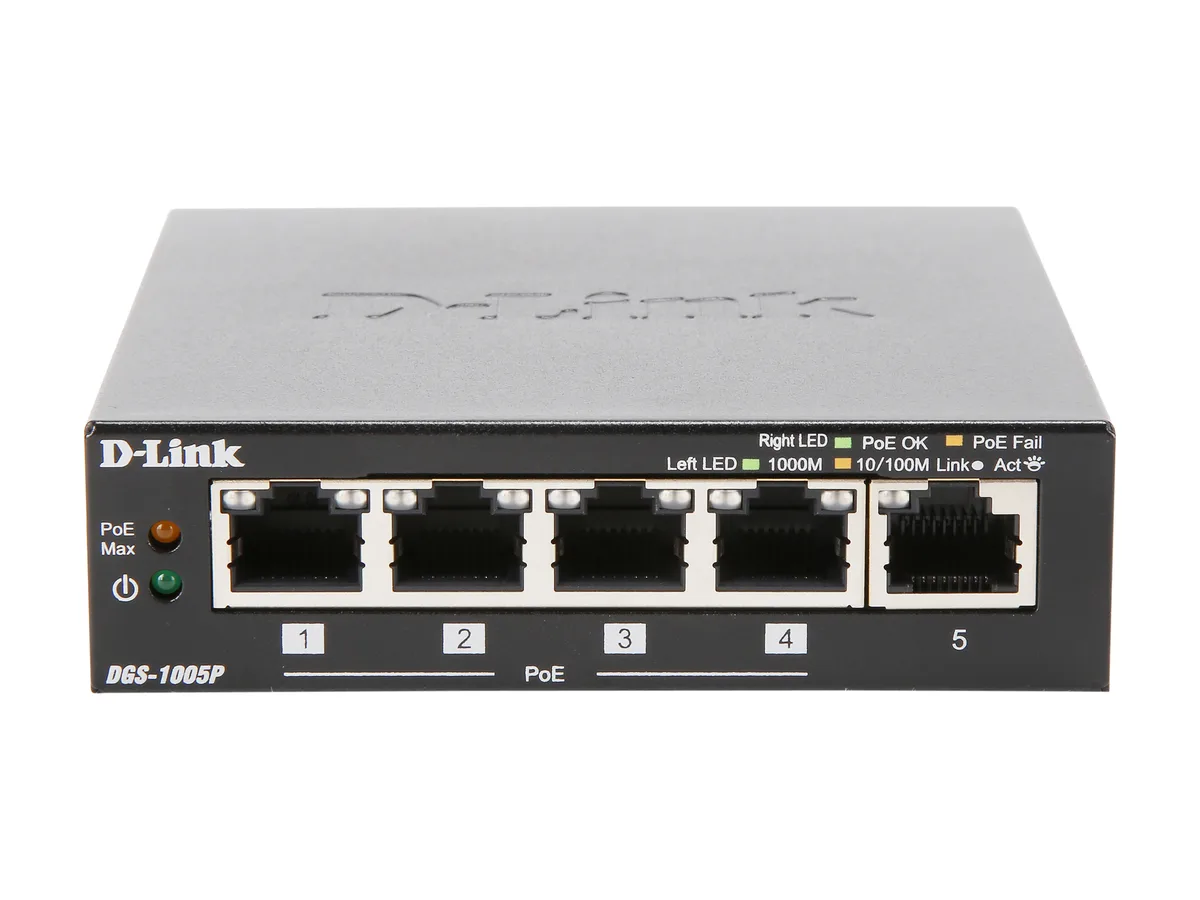

LEDsPower
Power / PoE Max (per unit)
Power / Status (per port)
Activity / Link and Speed (per port)

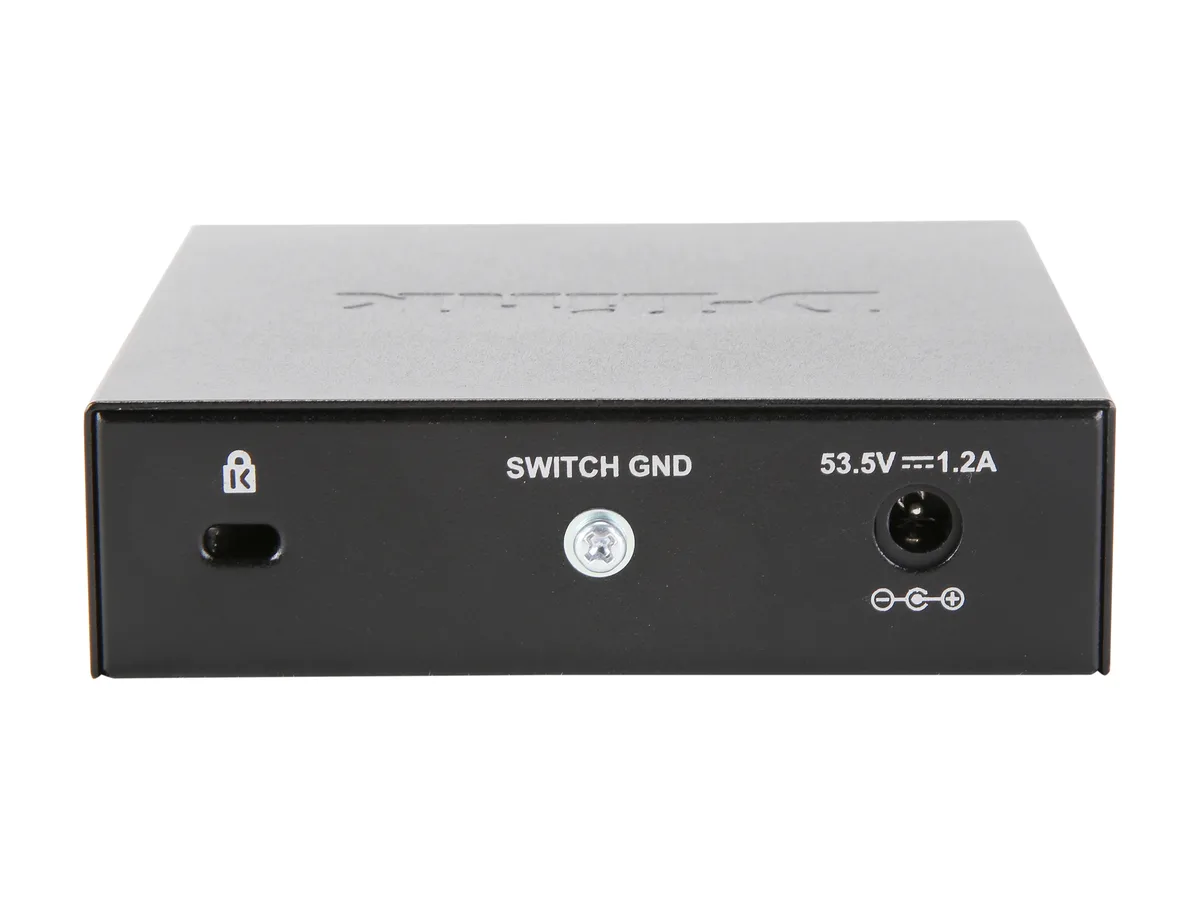

PowerDC Input: External 53.5V / 1.2A power adapter
Power Consumption:
64.5 W maximum (PoE on)
3.08 W maximum (PoE off)
0.54 W (standby)
Dimensions1.10" x 3.94" x 3.86"
Weight0.57 lb.
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 0% to 95% RH non-condensing
Storage Humidity: 0% to 95% RH non-condensing
Shipping weight0.92 kg
Package size251 × 208 × 71 mm

Questions about this item

How do I confirm the DGS-1005P is operating correctly after connecting devices?

The front panel shows a Power LED for the unit, plus per-port LEDs for Power/PoE Max, Power/Status, and Activity/Link with Speed. All five ports lit for link and activity, and no PoE Max warning, means the switch is passing traffic and delivering power normally.

What comes with the DGS-1005P and what must I source separately?

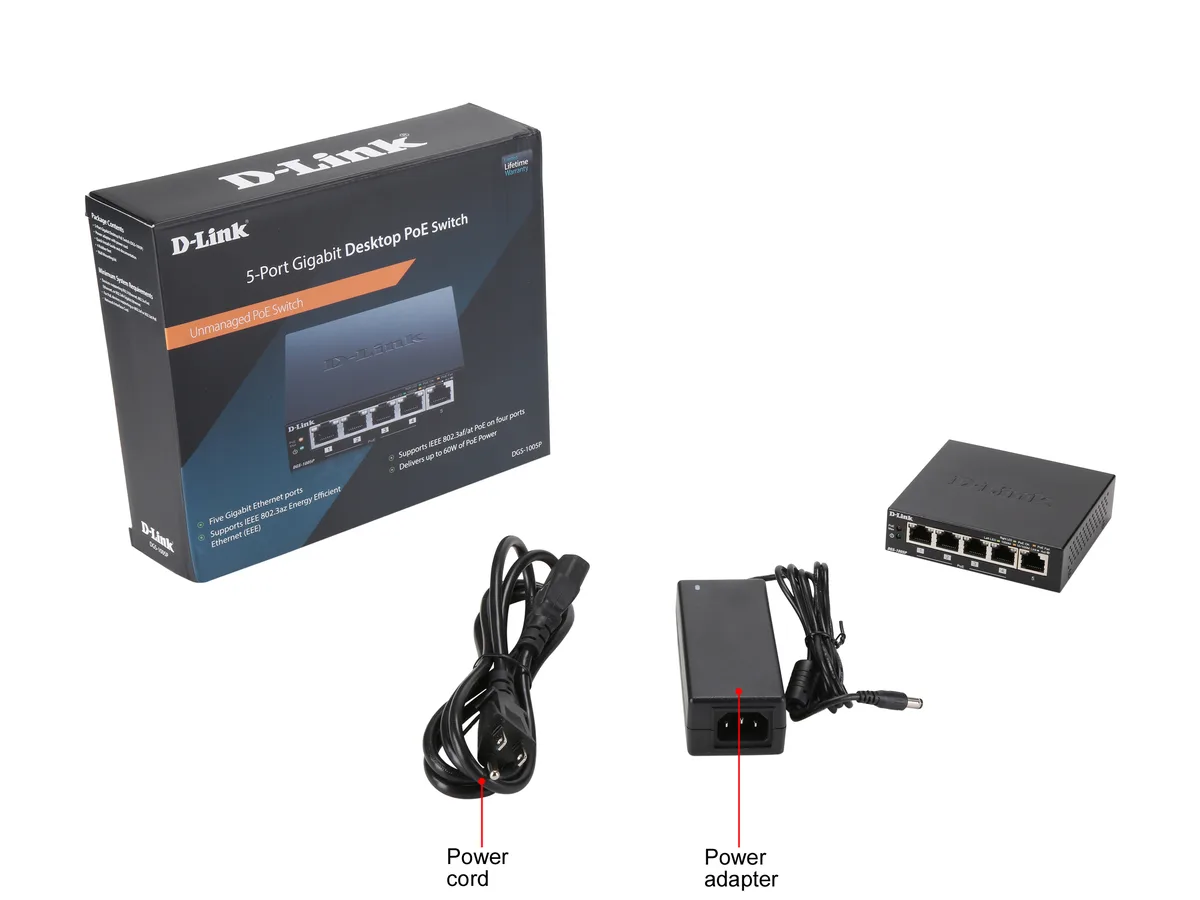

The box includes the metal desktop switch and an external 53.5 V / 1.2 A DC power adapter. Ethernet patch cables for the five RJ45 ports and any PoE-powered devices such as cameras or access points are not included.

The DGS-1005P is a single model — how do I decide if this 5-port version with 4 PoE ports suits my needs?

Choose this model when you need up to four PoE devices powered from one switch with a 64.5 W total PoE budget. If you require more ports, a higher PoE budget, or managed features, a different switch is required.
