Compact white desktop switch with five RJ45 ports and status LEDs

D-Link

D-Link DES-1005E 5-port 10/100 desktop network switch

SKU CH-DJ51-9GM0Q MPN DES-1005E

A 5-port unmanaged switch connects up to five wired devices at 10/100 Mbps with auto-negotiation and energy-efficient operation

  • FormatDesktop
  • StandardsIEEE 802.3 10BaSE-t Ethernet (twisted-pair copper) IEEE 802.

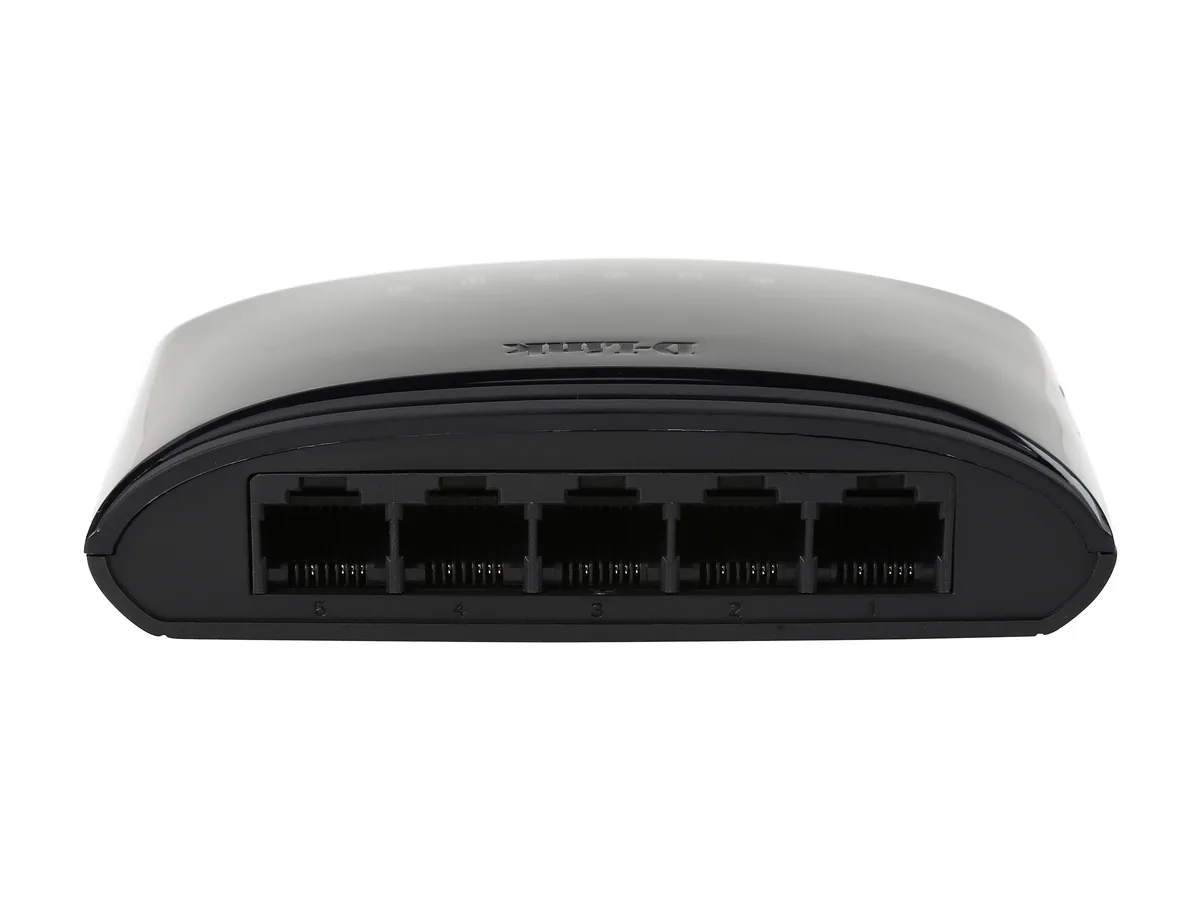

  • Primary Ports5 x RJ45
  • Primary Port Speed10/20/100/200 Mbps
  • MAC Address Table2K
  • Switching MethodStore and Forward
  • 5 ports connect up to five devices at 10/100 Mbps
  • Auto MDI/MDIX on every port removes the need for crossover cables
  • Store-and-forward switching with 2K MAC table and 96KB buffer ensures reliable frame delivery
  • IEEE 802.3az Energy-Efficient Ethernet cuts power to as low as 0.6 W on standby
  • Compact desktop or wall-mountable design fits tight spaces at 2.34" × 1.07" × 4.09

Compact 5-port Fast Ethernet switch

The D-Link DES-1005E is an unmanaged desktop switch with five RJ45 ports that operate at 10/100 Mbps. It suits home offices or small businesses that need a simple way to connect up to five wired devices such as PCs, printers or network storage. The metal enclosure can sit on a desk or be wall-mounted. No configuration is required.

10/100 Mbps port speed

Every port supports IEEE 802.3 and 802.3u standards with auto-negotiation and auto MDI/MDIX crossover, so straight-through or crossover cables work interchangeably. Full-duplex operation yields up to 200 Mbps per port while the 2K MAC address table and 96 KB buffer handle traffic using store-and-forward switching. IEEE 802.3az Energy-Efficient Ethernet reduces power draw when links are idle.

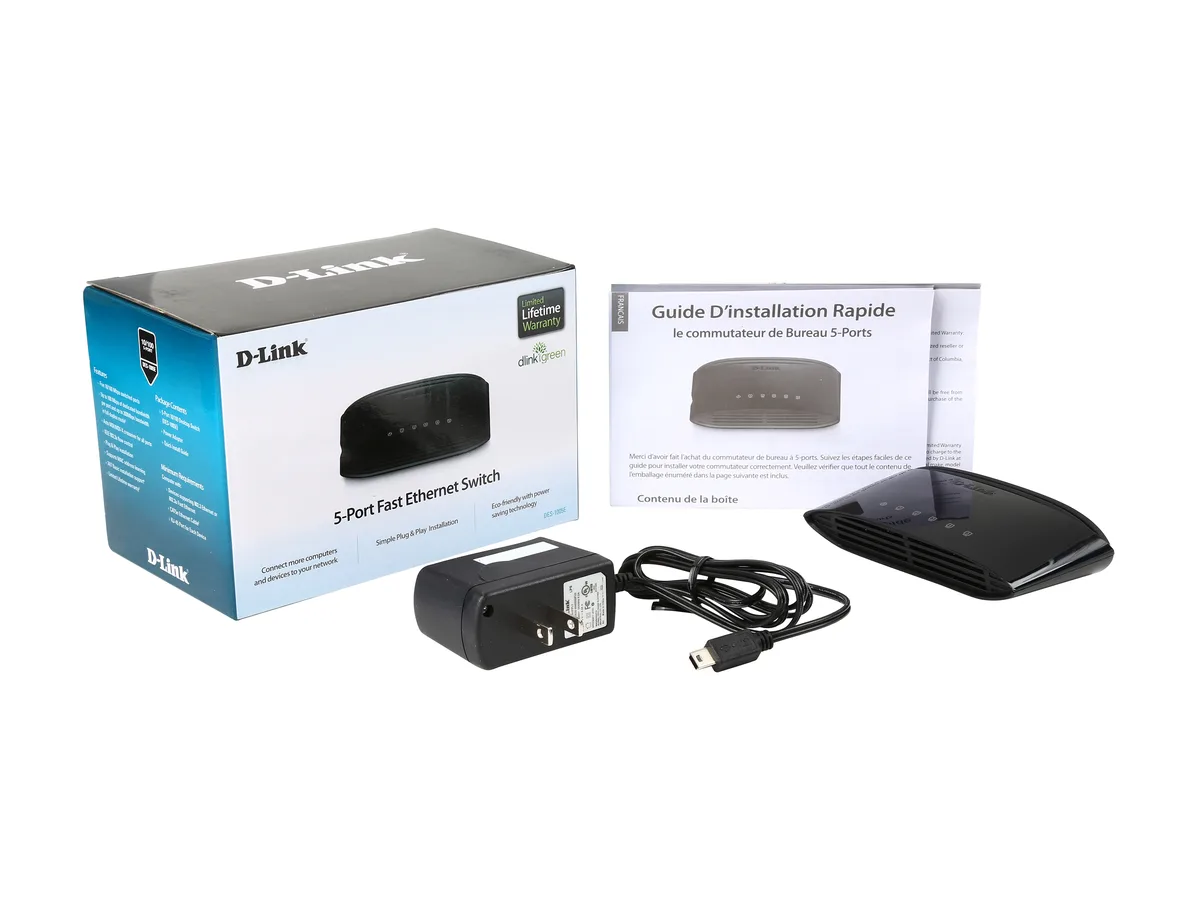

External 5 V power adapter included

The bundle supplies a 5 V 0.55 A DC adapter, so the unit draws only 0.6 W on standby and 3.3 W at maximum load from the DC side. Per-port LEDs show link, activity and speed while a single power LED confirms the adapter is live. Buyers who need Gigabit throughput or managed features such as VLANs or QoS should choose a different model.

Highlights

  • 5 ports connect up to five devices at 10/100 Mbps
  • Auto MDI/MDIX on every port removes the need for crossover cables
  • Store-and-forward switching with 2K MAC table and 96KB buffer ensures reliable frame delivery
  • IEEE 802.3az Energy-Efficient Ethernet cuts power to as low as 0.6 W on standby
  • Compact desktop or wall-mountable design fits tight spaces at 2.34" × 1.07" × 4.09

Specifications

BrandD-Link
ModelDES-1005E
FormatDesktop
StandardsIEEE 802.3 10BaSE-t Ethernet (twisted-pair copper)
IEEE 802.3u 100BaSE-tX Fast Ethernet (twisted-pair copper)
ANSI / IEEE 802.3 Nway autonegotiation
IEEE 802.3x flow control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Primary Ports5 x RJ45
Primary Port Speed10/20/100/200 Mbps
MAC Address Table2K
Switching MethodStore and Forward
Buffer Memory96KB
ProtocolsCSMA/CD

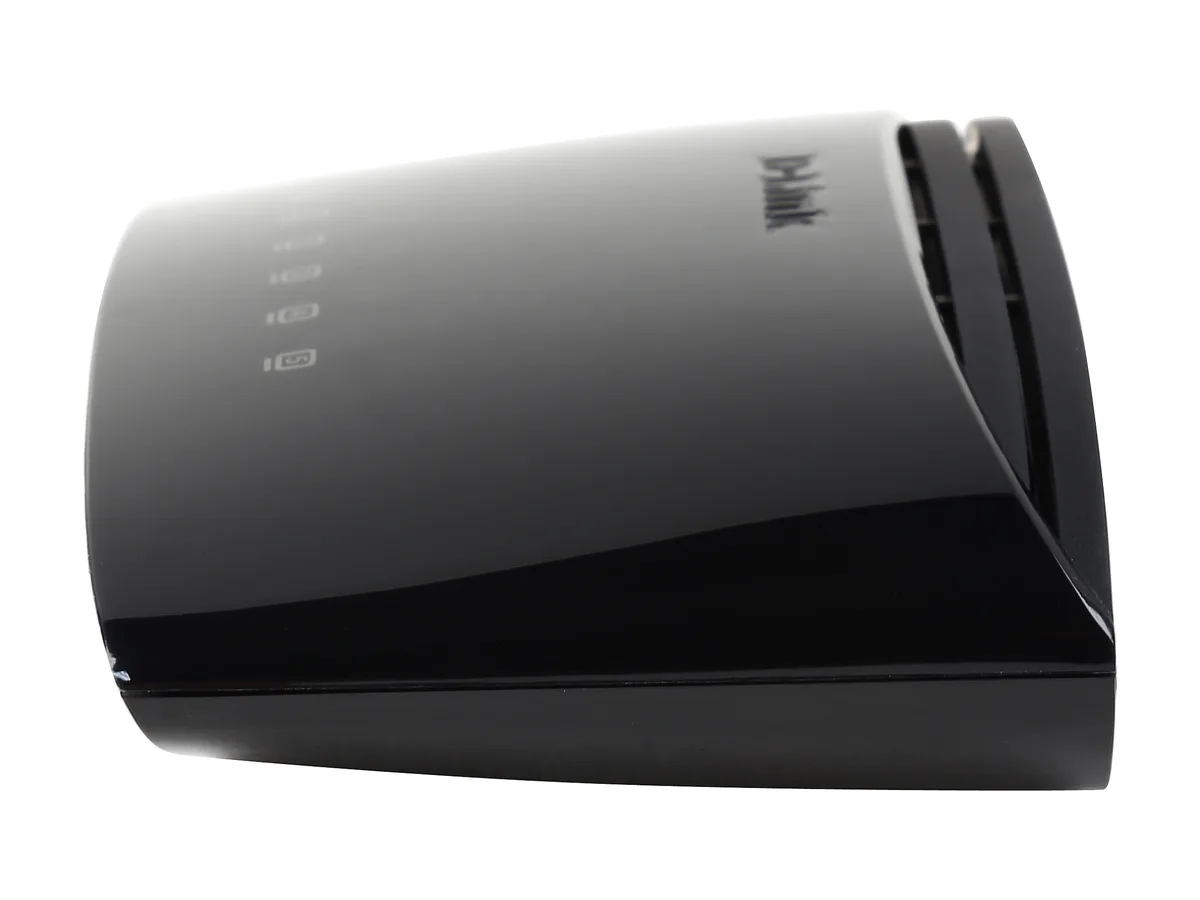

LEDsPer port: Link / Activity / Speed
Per device: Power
PowerDC Input
External 5V/.55 A Level “V” Power Adapter
Power Consumption
Power on (Standby):
DC input: 0.6 watts
AC input: 1.6 watts
Maximum:
DC input: 3.3 watts
AC input: 5.2 watts
FeaturesInexpensive Fast Ethernet solution for home/SOHO
5 10/100 Mbps Fast Ethernet ports
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow control
Plug-and-play installation
RoHS compliant
Dimensions2.34" x 1.07" x 4.09"
Weight0.12 lb.
TemperatureOperating Temperature: 32 to 104 degree F (0 to 40 degree C)
Storage Temperature: 14 to 158 degree F (-10 to 70 degree C)
HumidityOperating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Shipping weight0.21 kg
Package size163 × 104 × 89 mm

Questions about this item

What does the 200 Mbps full-duplex rating mean for a typical home network?

Each of the five RJ45 ports can send and receive simultaneously at up to 200 Mbps, so a file transfer between two connected PCs can run at full Fast Ethernet speed without collisions.

Which IEEE standards limit the practical throughput of this switch?

The switch follows IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX, so maximum wired throughput is capped at 100 Mbps per direction per port.

What are the exact dimensions and mounting options for the DES-1005E?

The unit measures 2.34" x 1.07" x 4.09" and is designed for desktop use or wall mounting with the included slots.
