CUTLER-HAMMER
CUTLER-HAMMER 10250T46LB selector switch 4 position 30 mm black
30 mm four-position selector switch with maintained action, 10 A 600 V AC contacts and IP68 sealing
- Four maintained positions for flexible control
- 10 A at 600 V AC contact rating
- IP68 and NEMA 4X rated for harsh environments
- Polymer operator head with zinc bezel for durability
- 30 mm panel mount fits standard cutouts
30 mm 4-position selector switch

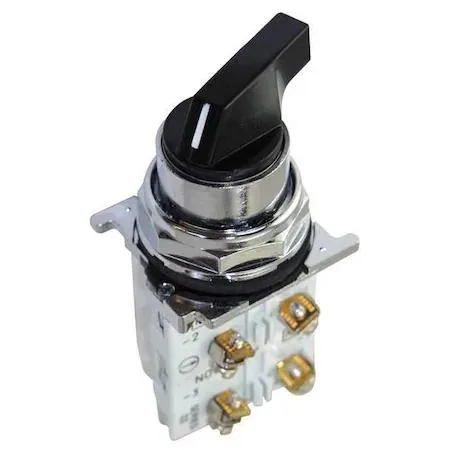

The CUTLER-HAMMER 10250T46LB is a 30 mm non-illuminated selector switch with four maintained positions. It provides a 2NO/2NC contact form rated at 10A @ 600V AC for industrial control circuits. The operator head uses a black polymer lever on a metal body with a zinc bezel. NEMA ratings 12, 13, 3, 3R, 4, 4X and IP68 suit harsh environments.
Verify mounting cut-out and contact logic
Confirm the panel cut-out matches the 30 mm operator size before ordering. Check that the cam 3 switching sequence XOOO, OXOO, OOXO across positions A, B, C matches your control logic. Ensure the A600/P600 contact rating suits the load voltage and current in your application. The maintained action in all four positions must fit the required operating sequence.
Lever operator and sealed construction
The black lever operator gives clear manual position indication without illumination. Polymer head and zinc bezel resist corrosion while the IP68 rating protects against dust and water ingress. NEMA 4X rating adds hose-down and corrosion resistance for wash-down areas. No key removal feature means the lever stays in place during operation.
Highlights
- Four maintained positions for flexible control
- 10 A at 600 V AC contact rating
- IP68 and NEMA 4X rated for harsh environments
- Polymer operator head with zinc bezel for durability
- 30 mm panel mount fits standard cutouts
Specifications
| Brand | EATON |
|---|
Questions about this item
Does the 10250T46LB come with mounting hardware or a legend plate included?
The selector switch is supplied as the operator head only; mounting hardware and legend plates are sold separately.
How do I choose between the four maintained positions for my control circuit?
Each position closes one normally-open contact and opens the other three, giving a single active circuit per position as shown by the cam 3 switching sequence XOOO, OXOO, OOXO, OOOX.
What does the 10 A at 600 V AC rating mean when the switch is installed in a panel?
It means the contacts can carry 10 amps continuously at up to 600 volts AC, matching the A600/P600 NEMA designation for pilot-duty and control-circuit applications.
