CUTLER-HAMMER 10250T3053 Long Handle Selector Switch 30mm 3-Position
30 mm three-position selector switch with maintained-maintained-momentary action, metal lever operator, anodised aluminium chrome bezel, NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings, CSA and UL listed
- 30 mm mounting fits standard panels
- Three-position selector enables flexible control
- Maintained and momentary actions suit varied sequences
- Metal operator head with anodized aluminium bezel resists wear
- NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings protect against harsh environments
Eaton 10250T3053 30 mm Selector Switch

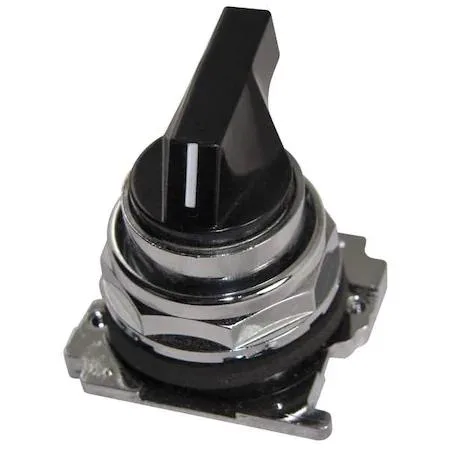

The Eaton 10250T3053 is a 30 mm long-handled selector switch designed for industrial control panels and machinery interfaces. It provides a three-position maintained-maintained-momentary action with a black metal lever operator and chrome anodised aluminium bezel. The unit carries NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings for dust-tight and wash-down environments.
Suited For Panel Builders Needing Three-Position
This switch suits panel builders and maintenance teams who require a rugged three-position selector with maintained and momentary functions in a single 30 mm cut-out. Buyers needing a two-position switch, a key-operated version, or a different cam configuration should look at other models in the 10250T range.
Cam 3 Determines Contact Sequence
The defining specification is Cam 3, which sets the contact block sequencing for the three maintained-maintained-momentary positions. Confirm that Cam 3 matches your control logic before ordering, as other cam codes produce different switching patterns.
Highlights
- 30 mm mounting fits standard panels
- Three-position selector enables flexible control
- Maintained and momentary actions suit varied sequences
- Metal operator head with anodized aluminium bezel resists wear
- NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings protect against harsh environments
Specifications
| Brand | EATON |
|---|
Questions about this item
What does the IP65 rating on this 30 mm selector switch protect against in practice?
IP65 means the operator is dust-tight and withstands low-pressure water jets from any direction, so the switch remains operable in wash-down or dusty industrial environments.
What panel cut-out and mounting hardware does the 30 mm bezel require?
The switch fits a standard 30 mm panel hole and uses the threaded metal operator head with anodized aluminium bezel to secure from the front; no separate mounting bracket is needed.
How is the maintained/maintained/momentary cam action wired, and what is the common wiring mistake?
Cam 3 provides maintained contact in the left and centre positions and momentary contact in the right position; the frequent error is wiring all three positions as maintained, which prevents the spring-return function from working.
