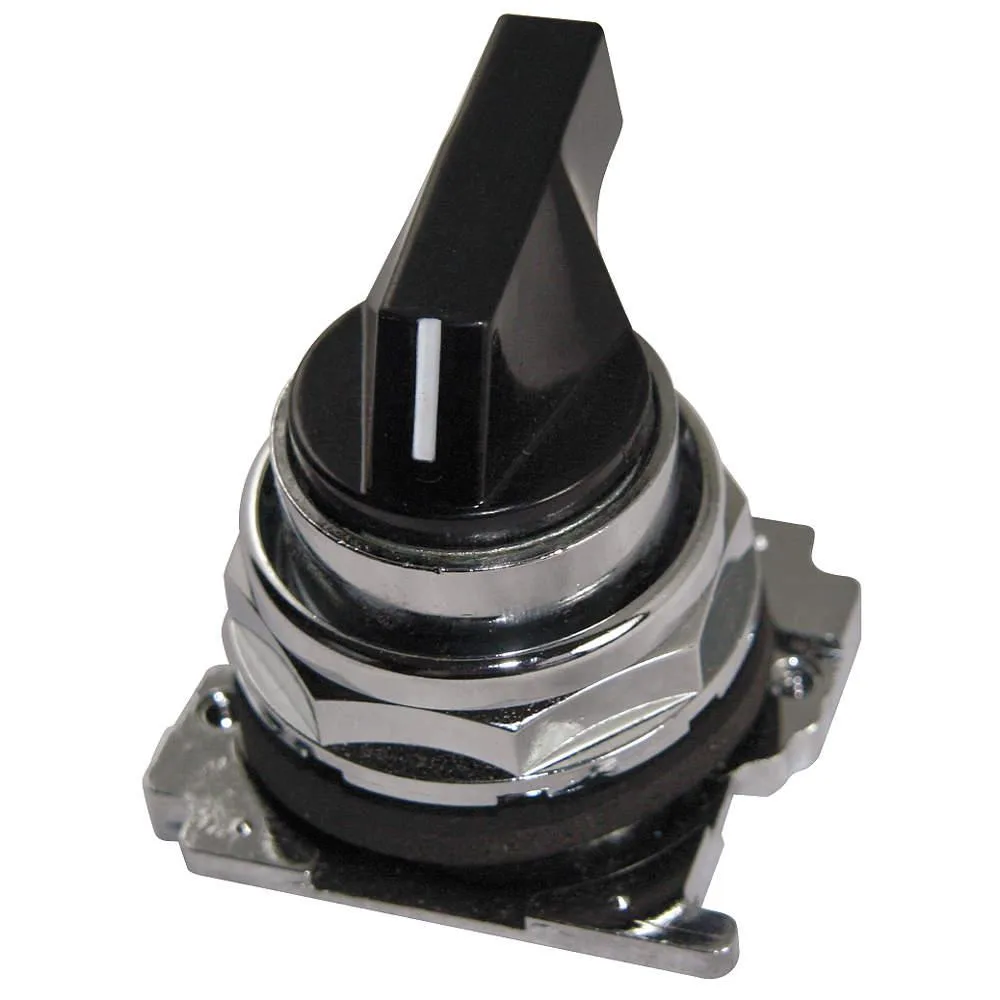

CUTLER-HAMMER 10250T3043 30mm 3-position selector switch
30 mm three-position selector switch with momentary-maintained-momentary lever action, metal head, anodized aluminium bezel, NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings
- 30 mm mounting fits standard panels
- Three-position momentary/maintained/momentary action
- Lever operator with black metal head
- NEMA 12, 13, 3, 3R, 4, 4X rated
- IP65 protection against dust and water jets
30 mm 3-position selector switch
The CUTLER-HAMMER 10250T3043 is a 30 mm non-illuminated selector switch designed for industrial control panels. It suits operators who need a lever-type actuator with momentary and maintained positions in a single device.
Panel mounting and wiring
The switch fits a standard 30 mm panel cut-out and uses a metal operator head with an anodised aluminium bezel. Lever operation is straightforward, but the cam 3 configuration must match the contact block sequence to avoid incorrect switching logic.
Environmental ratings and standards
Rated NEMA 12, 13, 3, 3R, 4, 4X and IP65, the switch withstands dust, water jets and corrosion in indoor or outdoor enclosures. It carries CSA and UL listings, but it is not suited for applications requiring key-operated security or illuminated status indication.
Highlights
- 30 mm mounting fits standard panels
- Three-position momentary/maintained/momentary action
- Lever operator with black metal head
- NEMA 12, 13, 3, 3R, 4, 4X rated
- IP65 protection against dust and water jets
Specifications
| Brand | EATON |
|---|
Questions about this item
How can I verify the 30 mm selector switch operates correctly after installation?
Confirm the lever moves through all three positions — momentary, maintained, momentary — and that the cam 3 mechanism engages each detent without binding.
What components are included with the 10250T3043 and what must be sourced separately?
The switch ships with the metal operator head, anodized-aluminium chrome bezel and mounting hardware; contact blocks and any wiring are not included and must be ordered separately.
Which NEMA and IP ratings suit the environment where I will mount this 30 mm switch?
The unit carries NEMA 12, 13, 3, 3R, 4 and 4X plus IP65, so it fits indoor dust-tight, outdoor rain-tight and wash-down locations.
