CUTLER-HAMMER
CUTLER-HAMMER 10250T3042 Long Handle Selector Switch 30mm 3Pos Black
A 30 mm, three-position selector switch with momentary-maintained-momentary action, NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings
- 3-position selector offers flexible control
- 30 mm mounting fits standard panels
- IP65 and NEMA 12/13/3/3R/4/4X ratings protect against dust and water
- Metal operator head with anodised aluminium bezel ensures durability
- UL listed and CSA certified for safety compliance
30 mm 3-Position Selector Switch

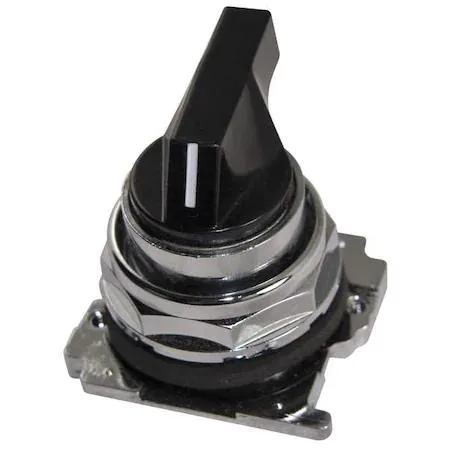

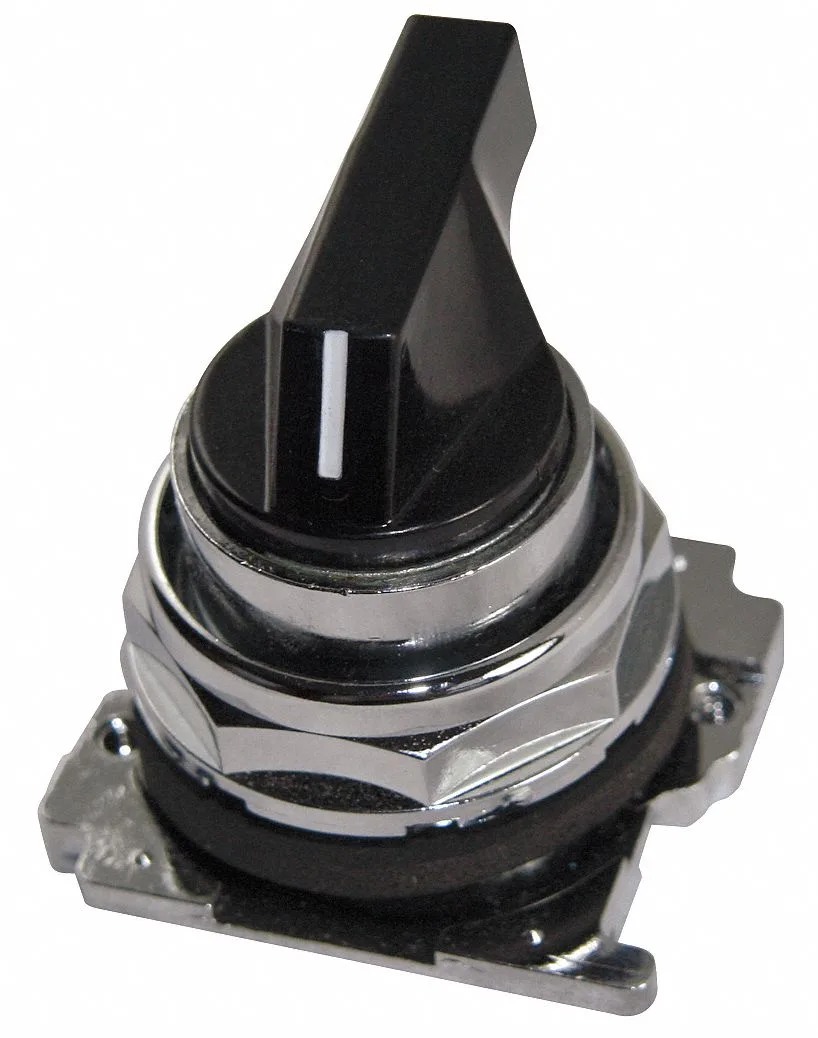

This Cutler-Hammer 10250T3042 selector switch fits a standard 30 mm panel cut-out and provides three positions with a momentary-maintained-momentary cam action. The long black metal lever operates inside a chrome anodised aluminium bezel. It carries NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings plus CSA and UL listings for industrial control panels.
Panel builders needing three-position lever control
The switch suits machines that require a centre-maintained position with spring return from both sides. It is not suited for applications that demand a key-operated mechanism or a maintained position in all three detents. Installations requiring a different cam sequence or a shorter operator should select an alternative model.
Cam 2 momentary-maintained-momentary action
The defining specification is the Cam 2 configuration, which delivers momentary contact on the left and right positions with a maintained centre position. This sequence determines whether the switch matches the control logic specified for the starter or contactor circuit. Verify the required cam code before ordering.
Highlights
- 3-position selector offers flexible control
- 30 mm mounting fits standard panels
- IP65 and NEMA 12/13/3/3R/4/4X ratings protect against dust and water
- Metal operator head with anodised aluminium bezel ensures durability
- UL listed and CSA certified for safety compliance
Specifications
| Brand | EATON |
|---|
Questions about this item
What panel cut-out size does the 30 mm selector switch require?
The operator is designed for a standard 30 mm mounting hole in the panel.
Will the chrome anodized aluminum bezel withstand the same NEMA 4X and IP65 conditions as my existing enclosure?
Yes, the bezel material and finish meet NEMA 4X and IP65 ratings alongside the switch body.
How can I verify the cam 2 contact sequence matches my wiring after installation?
Operate the lever through all three positions and confirm the momentary-maintained-momentary action at each detent.
