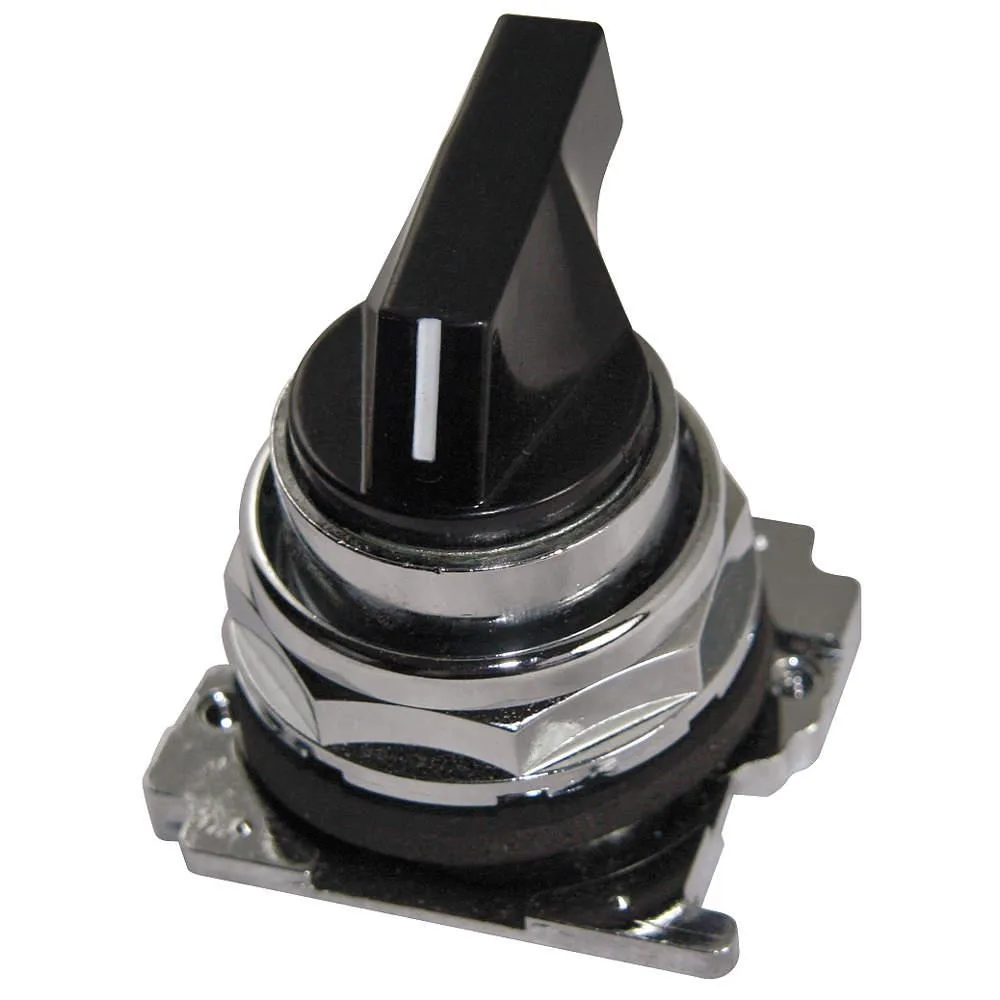

CUTLER-HAMMER 10250T3033 selector switch 30mm 3 position lever
30 mm three-position lever selector switch with momentary, maintained and maintained action, NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings
- 30 mm mounting fits standard panels
- Three-position lever gives momentary, maintained, maintained action
- NEMA 12, 13, 3, 3R, 4, 4X ratings suit harsh environments
- IP65 ingress protection resists dust and water jets
- UL listed and CSA certified for code compliance
30 mm Three-Position Lever Switch
This Cutler-Hammer selector switch fits a standard 30 mm panel cut-out and provides three distinct lever positions. It is built for operators who need a durable manual control on industrial machinery or motor starter panels. The momentary, maintained and maintained action sequence suits jog, run and hold functions without requiring a key.
NEMA and IP Environmental Ratings
The operator carries NEMA 12, 13, 3, 3R, 4 and 4X ratings alongside IP65 ingress protection. These certifications confirm the switch withstands dust, splashing water, hose-directed water and corrosion in indoor or outdoor enclosures. Buyers whose panels must meet only lower ratings should verify that the higher specs are not required by their specification.
Metal Head with Anodised Aluminium Bezel
The lever head is metal and the bezel is anodised aluminium in a chrome finish, giving mechanical strength and a clean appearance on the panel. No key mechanism is included, so the switch cannot be locked in any position. Installers who need keyed security or illuminated indication must source a different operator model.
Highlights
- 30 mm mounting fits standard panels
- Three-position lever gives momentary, maintained, maintained action
- NEMA 12, 13, 3, 3R, 4, 4X ratings suit harsh environments
- IP65 ingress protection resists dust and water jets
- UL listed and CSA certified for code compliance
Specifications
| Brand | EATON |
|---|
Questions about this item
What does the 30 mm mounting diameter mean when I install this selector switch?
The 30 mm figure is the standard panel cut-out size required for this Cutler-Hammer switch to fit securely in your control panel.
How do the NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings limit where I can use this switch?
Those ratings confirm the switch enclosure resists dust, water jets, oil and corrosion, so it suits indoor and outdoor industrial environments.
What panel thickness and hole pattern does the 30 mm metal operator head need to mount properly?
The 30 mm metal operator with anodised aluminium bezel mounts in a standard 30 mm cut-out; panel thickness follows the series 10250 installation guidelines.
