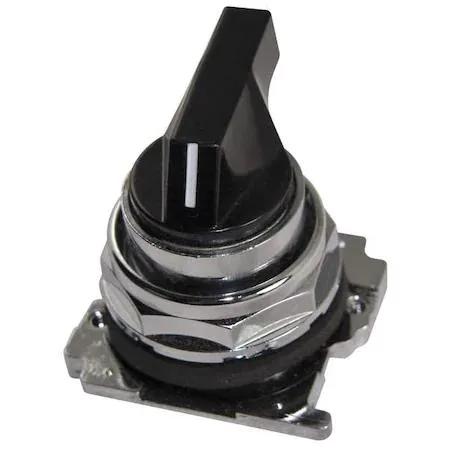

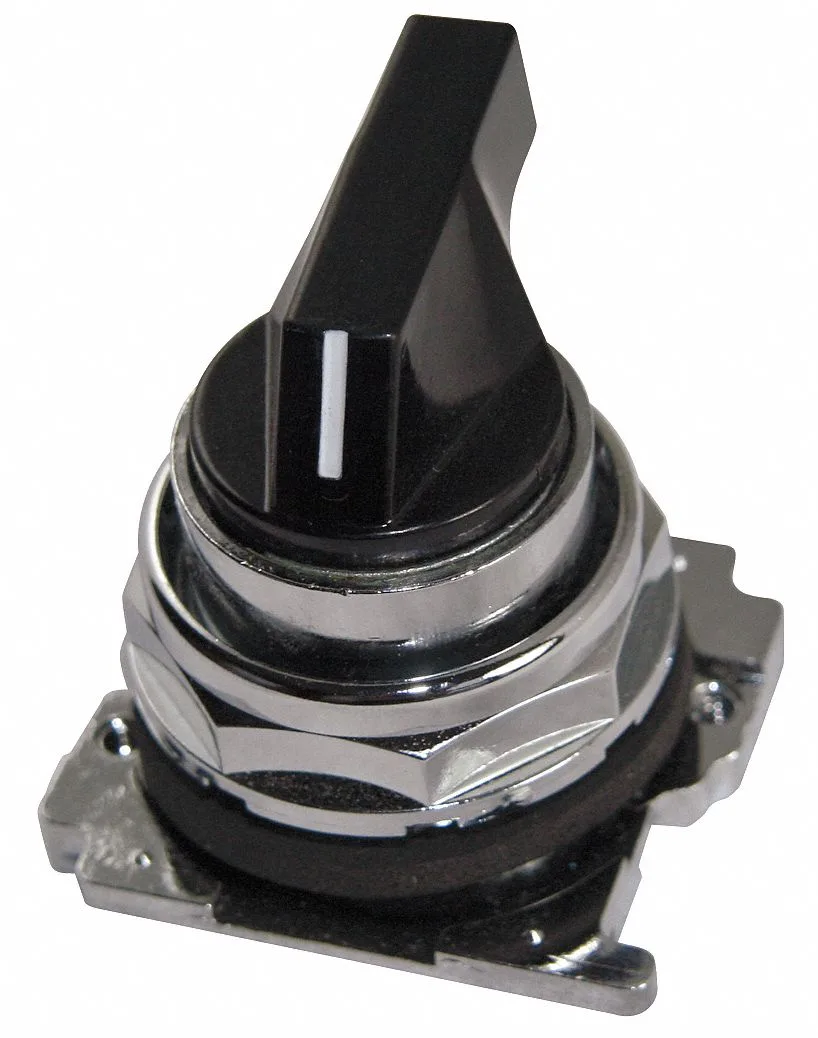

CUTLER-HAMMER 10250T3022 30mm 3-position selector switch
30 mm three-position maintained lever selector switch with anodised aluminium bezel, rated NEMA 12, 13, 3, 3R, 4, 4X and IP65
- 30 mm mounting fits standard panels
- Three maintained positions for reliable control
- Lever operator with metal head for durability
- NEMA 12, 13, 3, 3R, 4, 4X rated protection
- IP65 sealed against dust and water jets
30 mm 3-position selector switch
The CUTLER-HAMMER 10250T3022 is a 30 mm non-illuminated selector switch designed for industrial control panels. It suits operators who need a lever-style actuator with three maintained positions for machinery start, stop or changeover functions.
Maintained action with NEMA and IP ratings
The switch uses a maintained action in all three positions so the lever stays where it is placed without spring return. Its metal operator head and anodized aluminium bezel meet NEMA 12, 13, 3, 3R, 4 and 4X plus IP65, allowing use in dusty, wet or hose-down environments.
Cam 2 configuration defines contact sequence
Cam 2 determines the contact block sequence across the three positions, limiting the switching logic to that specific cam pattern. The device carries CSA and UL Listed markings, so it cannot be used where those approvals are not accepted or where a different cam arrangement is required.
Highlights
- 30 mm mounting fits standard panels
- Three maintained positions for reliable control
- Lever operator with metal head for durability
- NEMA 12, 13, 3, 3R, 4, 4X rated protection
- IP65 sealed against dust and water jets
Specifications
| Brand | EATON |
|---|
Questions about this item
How much heat does the 30 mm selector switch generate when it stays in one position all day?
The switch is a passive mechanical device with no coil or electronics, so it produces no measurable heat during continuous operation.
What mounting hardware must I already have to install this 30 mm lever operator?
You need a standard 30 mm panel cut-out and the matching 10250T series contact block or mounting latch that accepts the cam 2 operator.
Will the anodized aluminum bezel and IP65 rating hold up next to older NEMA 12 equipment in the same panel?
Yes, the bezel is chrome anodized aluminum and the operator carries NEMA 12, 13, 3, 3R, 4, 4X plus IP65, matching or exceeding legacy NEMA 12 enclosures.
