CUTLER-HAMMER

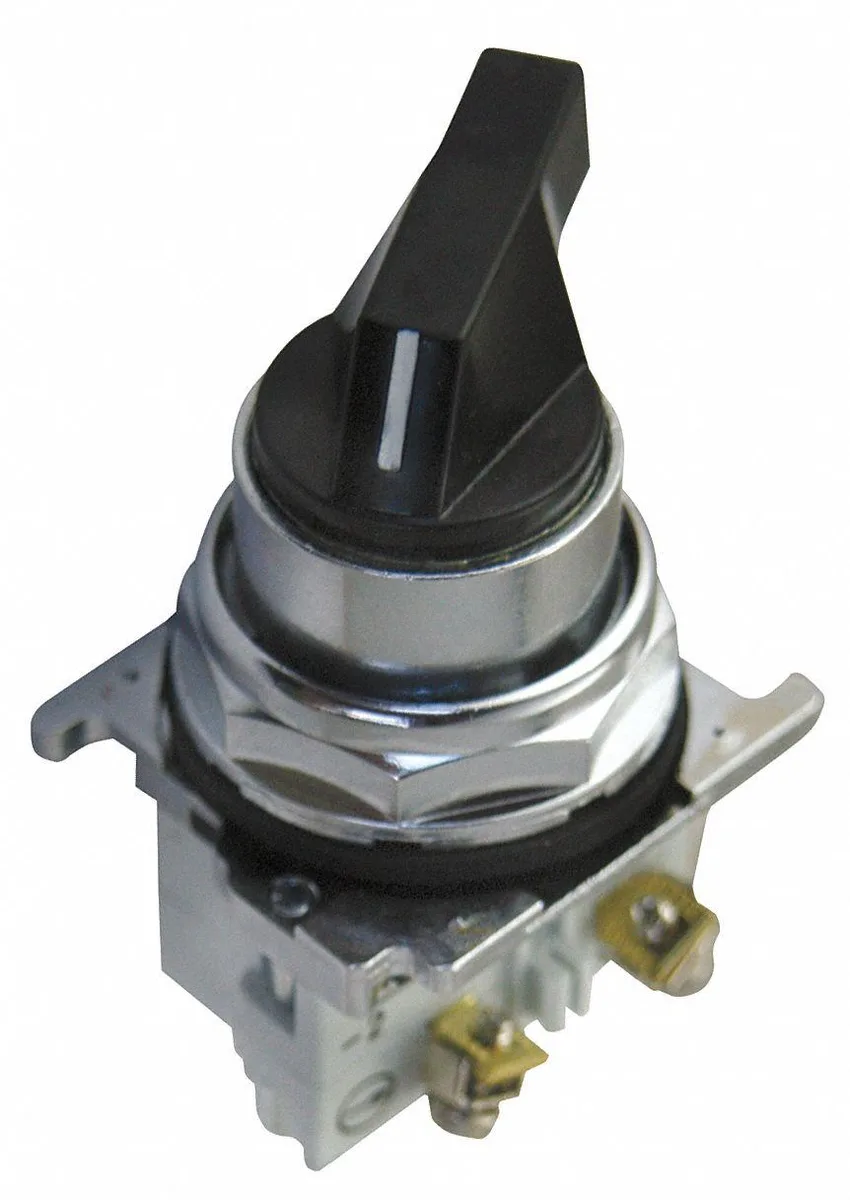

CUTLER-HAMMER 10250T20LB selector switch 30 mm 2 position black
30 mm two-position selector switch with maintained action, 10 A at 600 V AC rating, IP68 and NEMA 12, 13, 3, 3R, 4, 4X protection, black polymer lever
- 30 mm mounting fits standard panels
- 2-position maintained action holds each setting
- 10 A at 600 V AC contact rating
- NEMA 12, 13, 3, 3R, 4, 4X and IP68 sealing
- Polymer lever with zinc chrome bezel
30 mm Two-Position Selector Switch
This Cutler-Hammer selector switch provides manual control for industrial circuits. It fits a standard 30 mm panel cut-out and uses a maintained lever action that stays in the chosen position. The operator head is black polymer with a chrome zinc bezel. Rated for 10 A at 600 V AC, it carries NEMA A600/P600 contact ratings.
Suited for Maintained Control Panels
This unit suits panels needing a simple on-off or mode-change function where the lever must remain in place without spring return. The IP68 and NEMA 4X ratings allow use in wet, dusty or corrosive environments. It is not for momentary circuits that require automatic return to centre. Buyers needing three or more positions, keyed operation or illuminated handles should look elsewhere.
1NO/1NC Contact Block with Cam 3
The decisive specification is the single contact block offering one normally open and one normally closed circuit operated by cam 3. Position A closes the NO contact while Position B closes the NC contact, giving a clear XO/OX switching sequence. Verify this contact arrangement matches your control schematic before ordering.
Highlights
- 30 mm mounting fits standard panels
- 2-position maintained action holds each setting
- 10 A at 600 V AC contact rating
- NEMA 12, 13, 3, 3R, 4, 4X and IP68 sealing
- Polymer lever with zinc chrome bezel
Specifications
| Brand | EATON |
|---|
Questions about this item
What does the 10A @ 600V AC rating mean for my control circuit?
The contacts can switch up to 10 amps at 600 volts AC, matching NEMA A600/P600 duty for standard industrial control loads.
How does the 30 mm mounting and NEMA 4X/IP68 rating limit where I can install it?
It fits a standard 30 mm panel cut-out and the NEMA 4X/IP68 seal withstands wash-down, dust and temporary submersion.
What panel thickness and cut-out does the 30 mm operator head require?
Designed for a 30 mm diameter cut-out in typical industrial panels; the metal bezel and polymer lever secure with the supplied mounting nut.
