CUTLER-HAMMER 10250T1323 30mm 3-position selector switch
30 mm three-position selector switch with maintained action, metal operator head, chrome anodised aluminium bezel, NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings, UL and CSA listed
- 30 mm mounting fits standard panels
- Three maintained positions for reliable control
- IP65 and NEMA 4X ratings resist dust and water
- Metal operator with anodised aluminium bezel for durability
- UL listed and CSA certified for safety compliance
30 mm Three-Position Selector Switch

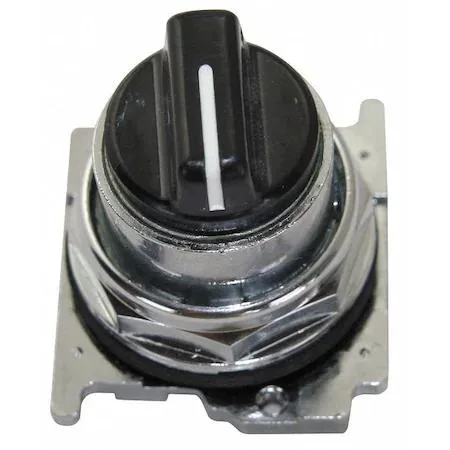

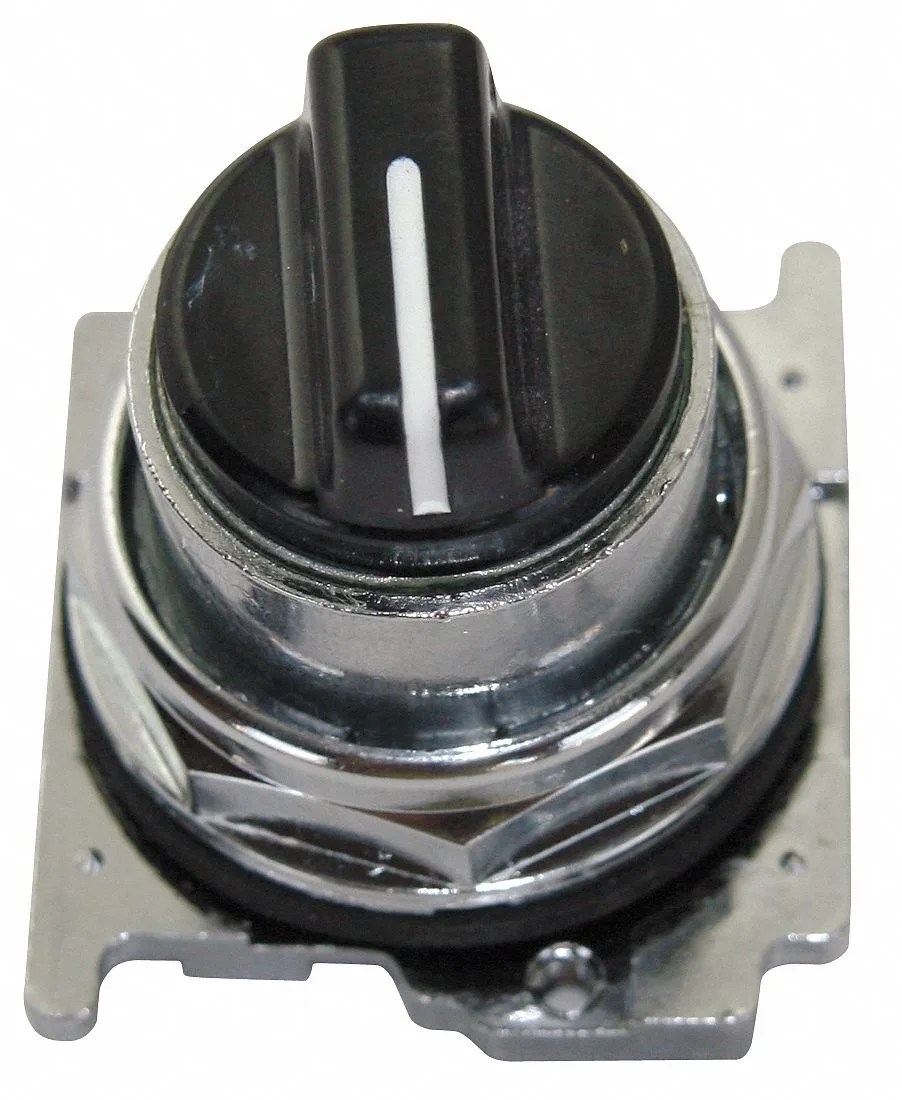

This 30 mm selector switch provides three maintained positions for machine control panels. The knob operator is black with a chrome anodized aluminum bezel and a metal head. It carries NEMA 12, 13, 3, 3R, 4 and 4X ratings plus IP65 protection for indoor and outdoor industrial use.
Cam 3 Contact Sequence and Environmental Headroom
Cam 3 defines the contact sequence across the three maintained positions, suitable for standard selector duties. The NEMA and IP ratings give reliable sealing against dust, water spray and hose-directed water, but the device is not rated for submersion or prolonged high-pressure wash-down beyond the listed classes.
UL and CSA Listed Panel Mounting
The switch meets UL and CSA standards for industrial control equipment, supporting compliance in North American panels. It mounts in a standard 30 mm cut-out without a key-operated option, so it suits applications where key security is not required.
Highlights
- 30 mm mounting fits standard panels
- Three maintained positions for reliable control
- IP65 and NEMA 4X ratings resist dust and water
- Metal operator with anodised aluminium bezel for durability
- UL listed and CSA certified for safety compliance
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the 30 mm cutout of this selector switch fit the same panel opening as my existing 30 mm push buttons?
Yes, the 30 mm mounting diameter matches standard 30 mm panel cutouts, so it installs in the same openings as other 30 mm operators.
How can I confirm the switch is operating correctly once it is wired and mounted?
Rotate the black knob through all three maintained positions and verify the cam 3 contact blocks change state at each detent; the NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings mean the seal remains intact during operation.
Does the 10250T1323 come with contact blocks or must they be ordered separately?
The switch ships as the operator only — knob, metal head, anodised aluminium bezel and cam 3 mechanism — so you must purchase the appropriate contact blocks separately.
