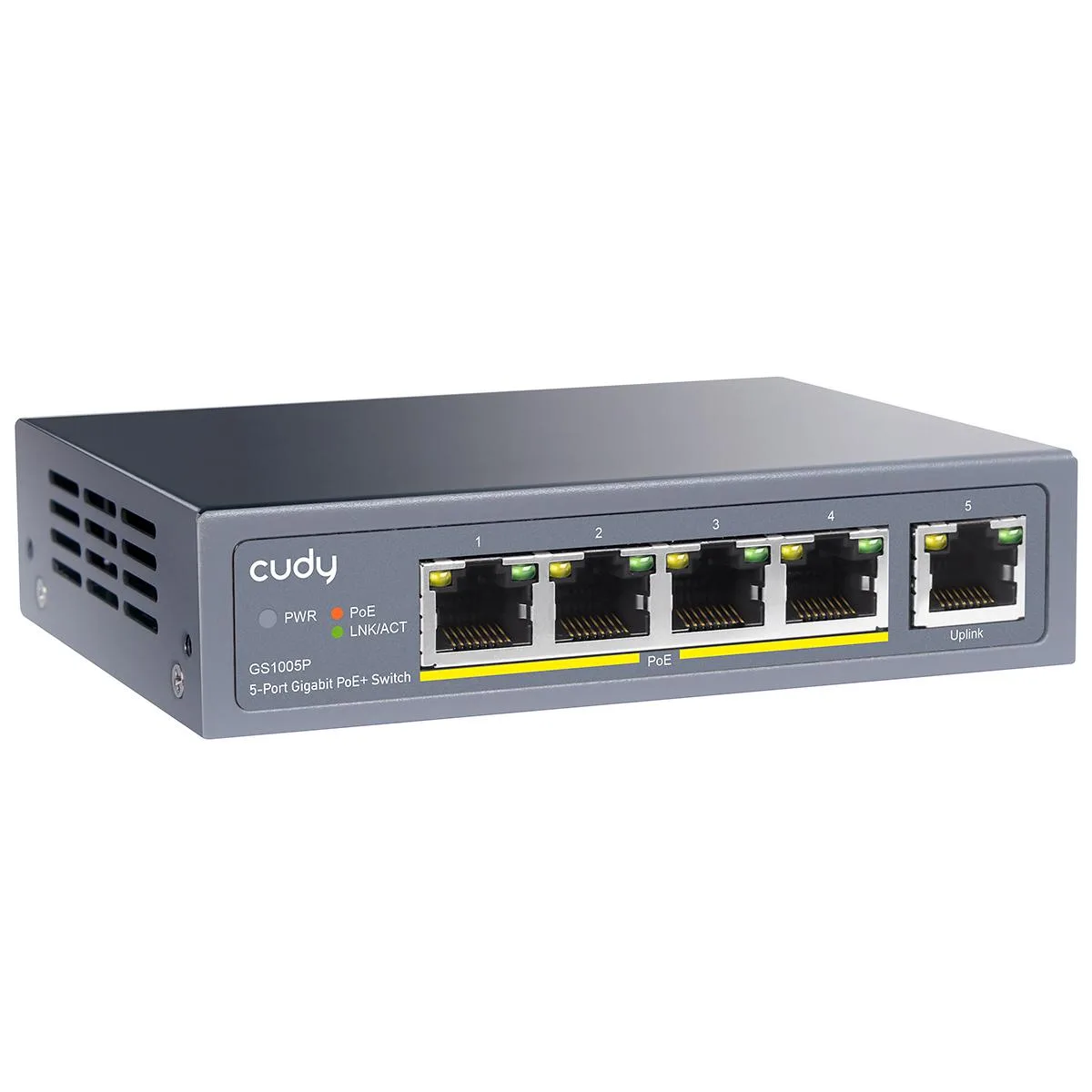

Compact metal desktop switch with five RJ45 ports and wall-mount slots

Cudy

Cudy GS1005P 5-port Gigabit PoE+ switch 60W

SKU CH-5SQP-VM8DM MPN GS1005P

Five-port Gigabit PoE+ switch delivers 60 W total power, up to 30 W per port, with VLAN isolation, 250 m extend mode and watchdog auto-recovery

  • Switch Typemanaged, fixed configuration
  • Formatdesktop, wall mountable
  • Standardsieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3af, ieee 8
  • Network Management Typesmart
  • Uplink Ports1
  • Uplink InterfaceRJ45
  • Powers IP cameras and APs with 30 W per port
  • 60 W total PoE budget runs multiple devices simultaneously
  • Extend mode reaches 250 m at 10 Mbps
  • VLAN isolation blocks client-to-client traffic
  • Plug-and-play desktop or wall-mount setup

Five-port PoE+ switch for small networks

The Cudy GS1005P 2.0 is a desktop or wall-mountable smart switch that delivers power and data over four Gigabit RJ45 PoE+ ports. It targets installers who need to run access points, IP cameras or digital signage without separate power adapters. A single non-PoE uplink port connects the switch to the router or core network.

Plug-and-play integration with VLAN and Extend modes

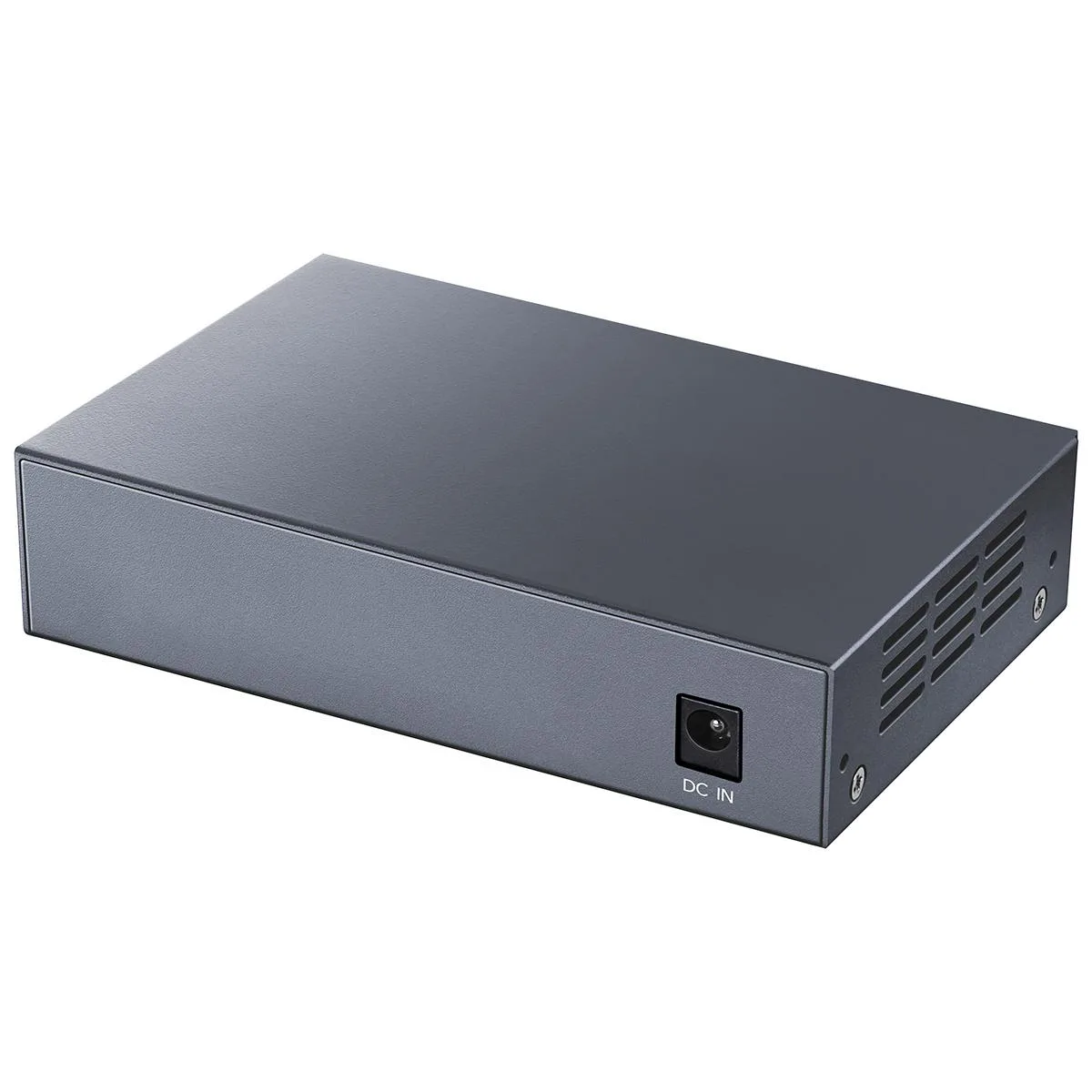

The unit draws its own power from an external supply and provides a 60 W total PoE budget across the four primary ports. Enable VLAN mode to isolate downlink ports so clients only talk to the uplink, or switch to Extend mode to reach devices up to 250 m away at 10 Mbps. No management software is required for basic operation.

30 W per port with 60 W total headroom

Each PoE+ port can supply up to 30 W, enough for most IEEE 802.3at devices, while the 60 W aggregate limit means four fully loaded ports will exceed the budget. The 0.375 MB packet buffer and 10 Gbps back-plane bandwidth handle burst traffic, but the switch lacks SNMP and offers only smart management features.

Highlights

  • Powers IP cameras and APs with 30 W per port
  • 60 W total PoE budget runs multiple devices simultaneously
  • Extend mode reaches 250 m at 10 Mbps
  • VLAN isolation blocks client-to-client traffic
  • Plug-and-play desktop or wall-mount setup

Specifications

BrandCudy
ModelGS1005P 2.0
Part NumberGS1005P
Switch Typemanaged, fixed configuration
Formatdesktop, wall mountable
Standardsieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3af, ieee 802.3at
Network Management Typesmart
Uplink Ports1
Uplink InterfaceRJ45
Uplink Speed1 gbps
Primary Port Count4
Primary Ports4 x Gigabit RJ45 PoE + 1 x Gigabit RJ45
Primary Port Speed10/100/1000 Mbps
MAC Address Table2048
VLAN SupportYes
Jumbo Frames15360
Buffer Memory0.375 MB
Protocols802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
PoEYes
SNMPno
QoSNo
LACPNo
Layerlayer 2
Port MirroringNo
Module SupportNo
Cloud AccessNo
Sports Team20 packs
Sports LeagueCudy
PoE Ports4 x PoE
PowerDC 54V
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, non-condensing
Shipping weight0.72 kg
Package size203 × 178 × 102 mm

Questions about this item

How much total PoE power does the GS1005P provide before ports start limiting?

The switch supplies 60 W of total PoE budget across its four powered ports.

Does the GS1005P have a fan that runs continuously during all-day operation?

The unit is fanless, so it operates silently with passive cooling.

What uplink connection does the switch need from my existing router?

A single Gigabit RJ45 uplink port connects the switch to your router.
