Long dark-grey soundbar with a central camera lens and rubber feet

Crestron Electronics, Inc

Crestron Electronics, Inc 6511281 UC-SB1-CAM conferencing device

SKU CH-TDWV-B6N7Q MPN 6511281

Combines a 12-megapixel 150-degree camera with quad microphones reaching 15 ft and dual 3-inch woofers plus tweeters for full-room conferencing

  • TypeUC Video Conference Smart Soundbar & Camera
  • CameraModel: Huddly IQ (mounted internally) Image Sensor: 12 megap
  • SpecificationAudio: DSP: Acoustic echo cancellation, dereverberation, aut
  • MicrophoneMicrophone: Linear quad-element far-field adaptive beamformi
  • SpeakerphoneSpeakers: Woofers: (2) 3 in. (76 mm) polypropylene cone w/ru
  • PowerPower Consumption: 22 W
  • Ultra-wide 150º diagonal view captures everyone in the room
  • 12 megapixel sensor with Genius Framing auto-zooms to frame participants
  • Quad-element beamforming mics pick up voices from 15 ft away
  • Dual woofers, passive radiators and tweeters deliver full-range conference audio
  • 22 W power draw with 3.5 mm audio in/out for simple integration

Crestron UC-SB1-CAM Smart Soundbar & Camera

The Crestron UC-SB1-CAM combines a Huddly IQ camera with a quad-element microphone array and stereo speakers in a single 43.60 in. bar. It is built for meeting rooms that need a unified audio and video device without separate components. The 12 megapixel sensor captures a 150º diagonal field of view.

Integrated Huddly IQ camera and audio DSP

The internally mounted Huddly IQ camera adds Genius Framing autozoom, people counting, and dynamic light optimisation. The DSP provides acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, and adaptive beamforming across a 15 ft. pickup range. Audio I/O uses 3.5 mm TRS jacks for line-level signals.

USB 2.0 bandwidth and fixed speaker EQ

The USB 2.0 connection limits video throughput to the capabilities of that interface, constraining maximum frame rates at full resolution. Speaker equalisation and limiting are fixed in the DSP, so tonal balance cannot be adjusted per room. The 22 W power draw and 13.56 lbs weight require secure mounting on a suitable surface.

Highlights

  • Ultra-wide 150º diagonal view captures everyone in the room
  • 12 megapixel sensor with Genius Framing auto-zooms to frame participants
  • Quad-element beamforming mics pick up voices from 15 ft away
  • Dual woofers, passive radiators and tweeters deliver full-range conference audio
  • 22 W power draw with 3.5 mm audio in/out for simple integration

Specifications

BrandCrestron
ModelUC-SB1-CAM (6511281)
TypeUC Video Conference Smart Soundbar & Camera
CameraModel: Huddly IQ (mounted internally)
Image Sensor: 12 megapixel 1/2.3 CMOS sensor
Lens: High precision, ultra wide angle, six element aspherical glass lens
Field of View: 150º diagonal, 120º horizontal, 90º vertical
Aperture: f/2.8
Processor: Neural Compute Engine based on Intel Movidius Myriad X video processing unit
Pan/Tilt/Zoom: 4x lossless digital zoom, pan, and tilt
Autozoom: Genius Framing automatic lossless digital zoom intelligently frames people in the room
Dynamic Light Optimization: Auto-adjusts light levels and white balance
Noise Reduction: 3D noise reduction, bias com
SpecificationAudio:
DSP: Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed);
Full-duplex IEEE 1329 Type 1 compliant
NOTE: DSP affects USB audio in/out only unless noted otherwise
USB Audio In/Out: USB 3.0, UAC 1.0 & HID, AEC-enabled USB speakerphone, 2-channel stereo far-end/content signal input, 2-channel mono microphone signal output;
Plug & play compatible with the computer, or other USB Audio Class host
Analog Input: 2-Channel stereo, fixed level (bypasses DSP), for in-ro
MicrophoneMicrophone: Linear quad-element far-field adaptive beamforming microphone array
Pickup Range: 15 ft. (4.6m)
Pickup Angle: 180° horizontal and 180° vertical
Frequency Response: 20 Hz to 8 kHz
SpeakerphoneSpeakers:
Woofers: (2) 3 in. (76 mm) polypropylene cone w/rubber surround
Passive Radiators: (2) 3 x 4-3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
Tweeters: (2) 1 in. (25 mm) polyester dome
Amplifier Power: 20 W RMS per channel, stereo
Frequency Response: 80 Hz to 20 kHz (+/-3 dB)
Effective Output Level: 91 dB SPL @ 1 m, both channels driven at full power
PowerPower Consumption: 22 W
ConnectionsConnectors:
AUDIO IN:
(1) 3.5 mm TRS mini-phone jack;
Unbalanced stereo line-level audio input;
Input Level: 1 Vrms maximum;
Input Impedance: 10k Ohms
AUDIO OUT:
(1) 3.5 mm TRS mini-phone jack;
Unbalanced stereo line-level audio output;
Output Level: 1 Vrms maximum;
Output Impedance: 100 Ohms
PC:
(1) USB 3.0 Type-B connector, female;
USB 3.0 device port;
Connects to computer;
6 ft (1.83 m) USB 3.0 Type B to Type A cable included
CAMERA:
(1) USB 3.0 Type-A connector, female;
USB 3.0 host port;
Connects to the internal camera output via a 6 in. (13 cm) USB Type-C to USB 3.0 Type A cabl

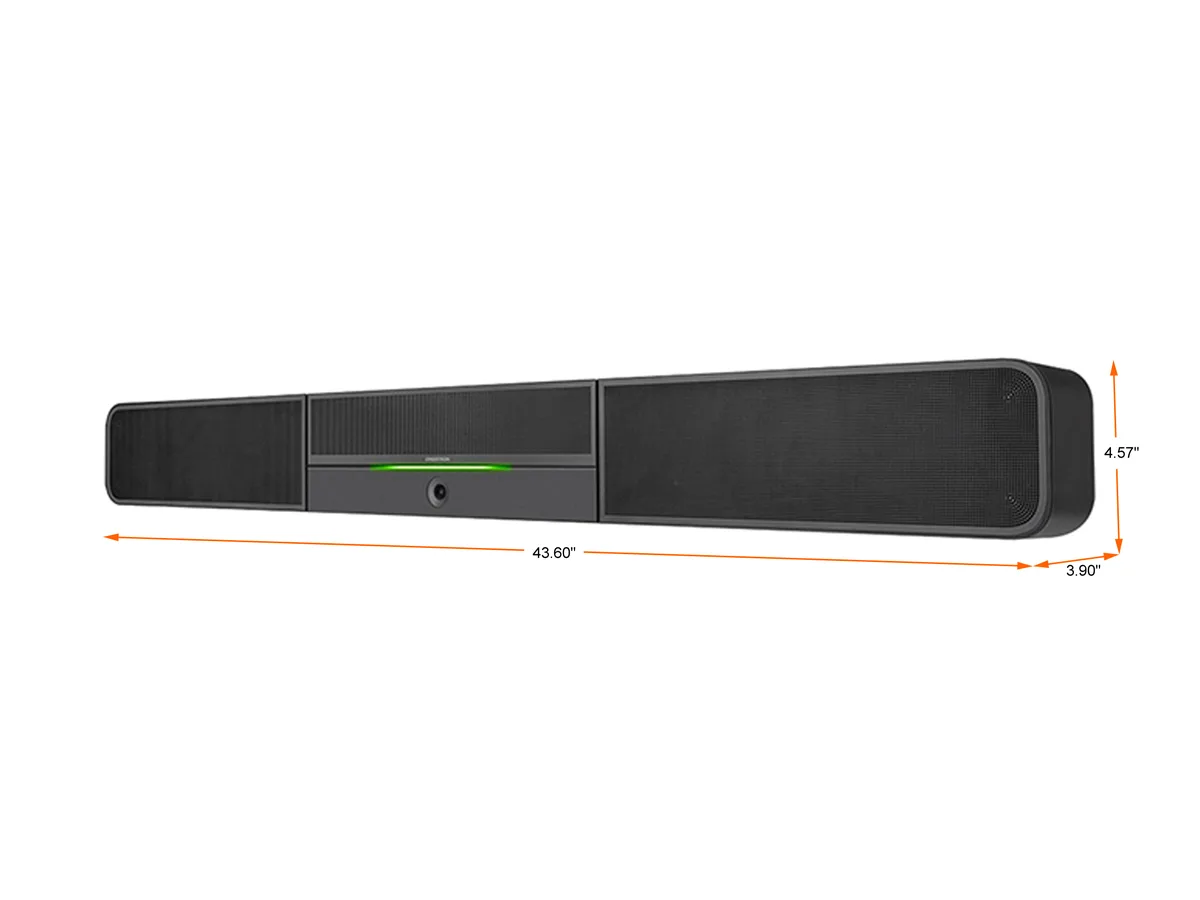

DimensionsHeight: 4.57 in. (117 mm), 4.64 in. (118 mm) with feet
Width: 43.60 in. (1108 mm)
Depth: 3.90 in. (100 mm)
Weight13.56 lbs.
Shipping weight3.94 kg
Package size1270 × 203 × 203 mm

Questions about this item

Will the 12 megapixel Huddly IQ camera sensor need cleaning or replacement over time?

The internally mounted 12 megapixel sensor has no user-serviceable parts; keep the glass lens clear of dust for optimal 150° diagonal imaging.

What limits continuous operation first — the 22 W power draw or the speaker amplifiers?

The 22 W power budget supplies both DSP processing and the dual 76 mm woofers with passive radiators; thermal limits on the amplifier stage appear before the power ceiling.

How much fan noise or heat does the Intel Movidius Myriad X processor add during all-day meetings?

The spec lists no active cooling; the Myriad X neural engine runs passively within the 22 W envelope, so audible noise stays at the level of the quad-element microphone array self-noise.
