Compact handheld 3D scanner dark grey finish four front lenses

Creality

Creality Sermoon S1 3D Scanner 4008050063

SKU CH-98HS-NEM1Y MPN 4008050063

A versatile professional 3D scanner combining 1+7+34 blue laser lines with NIR structured light for up to 0.02mm accuracy and 90fps scanning speed

  • Supported OSSystem Support Windows/macOS Android/iOS (Requires Wireless
  • Dimensional AccuracyAccuracy Blue Laser Lines: Up to 0.02mm Infrared Structured
  • DistanceSingle Blue Laser Line - 200mm-600mm 7 Parallel Blue Laser L
  • Scan SpeedBlue Laser Lines - Up to 90fps Infrared Structured Light - U
  • CalibrationCalibration board: High-precision glass calibration board
  • Capture DensityMin. scan volume Blue Laser Lines - 5mm x 5mm x 5mm Infrared
  • Metrology-grade precision up to 0.02mm accuracy for high-precision inspection
  • Multi-light versatility with 1+7+34 blue laser lines plus NIR structured light
  • High-speed capture up to 90fps delivering 1,428,000 points per second

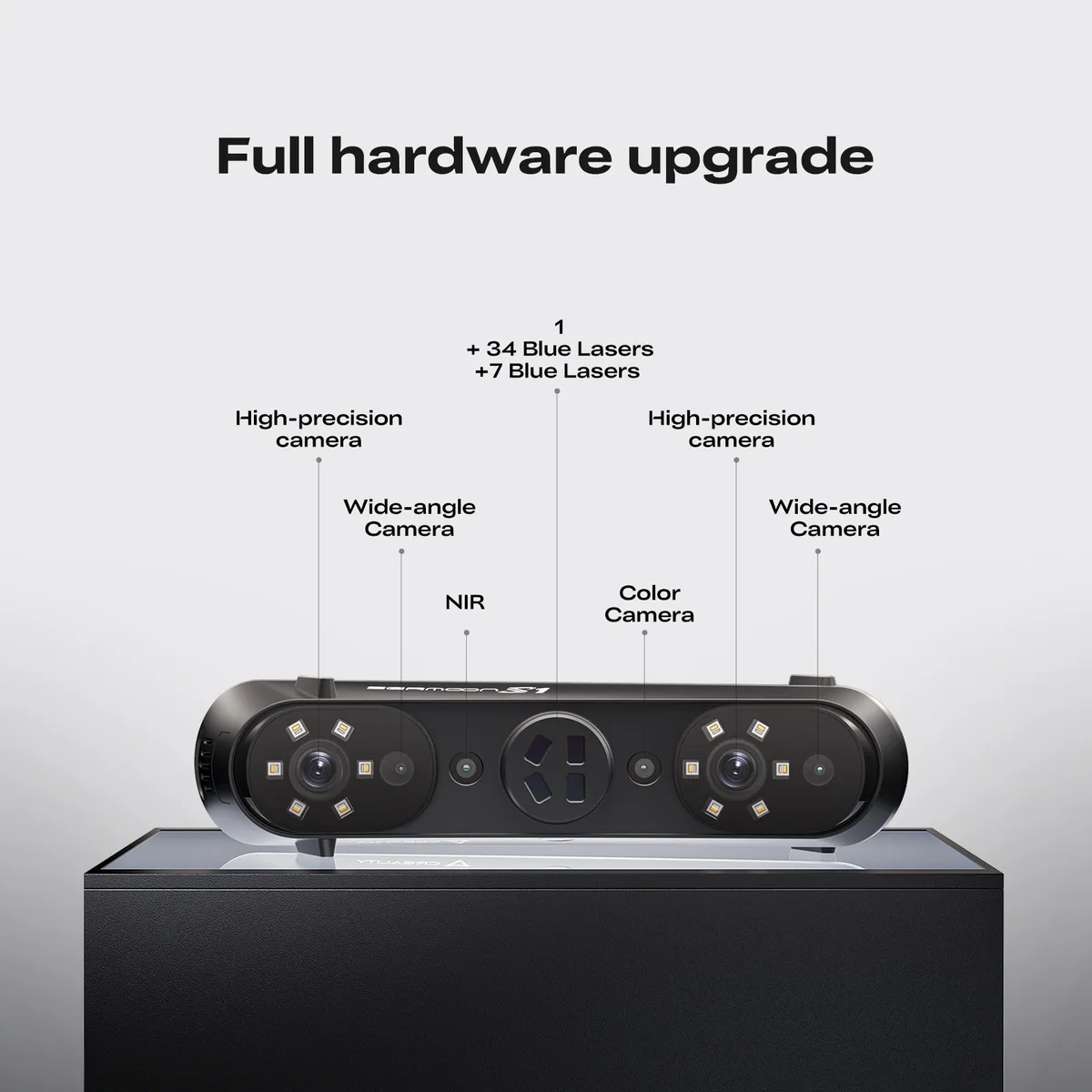

  • Innovative 4-lens design enables marker-free scanning of large objects
  • Spray-free scanning on black and metal surfaces even in 100,000 lux outdoor light

Professional metrology-grade 3D scanner

The Creality Sermoon S1 is a professional 3D scanner built for metrology-grade precision. It combines a 1+7+34 blue laser line system with NIR structured light to handle diverse scanning tasks. Accuracy reaches up to 0.02mm with volumetric accuracy of 0.02mm + 0.08mm/m. It suits engineers, manufacturers and reverse-engineering specialists needing non-destructive inspection.

Suits precision inspection and versatile capture

This scanner serves users who need deep-hole scanning, fine surface detail down to 0.1mm resolution and fast coverage of medium to large objects. The 4-lens design enables marker-free scanning of large objects and the human body. Buyers who only need occasional hobbyist scans or lack a compatible Windows or macOS workstation with an Nvidia GPU and 8GB VRAM should look elsewhere.

0.02mm accuracy with multi-light versatility

The defining specification is the up to 0.02mm accuracy delivered by the blue laser lines alongside 0.075mm from infrared structured light. Volumetric accuracy reaches 0.02mm + 0.08mm/m for laser and 0.075mm + 0.1mm/m for infrared. This precision level determines whether the S1 meets your inspection or reverse-engineering requirements.

Highlights

  • Metrology-grade precision up to 0.02mm accuracy for high-precision inspection
  • Multi-light versatility with 1+7+34 blue laser lines plus NIR structured light
  • High-speed capture up to 90fps delivering 1,428,000 points per second
  • Innovative 4-lens design enables marker-free scanning of large objects
  • Spray-free scanning on black and metal surfaces even in 100,000 lux outdoor light

Specifications

BrandCreality
ModelSermoon S1
SeriesSermoon
Supported OSSystem Support
Windows/macOS
Android/iOS (Requires Wireless Scanning Accessories)
Computer Configuration Requirements
Windows: The following or higher configurations are recommended: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB RAM, Windows 10/11 (64-bit). Minimum configuraiton: i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows 10/11 (64-bit)
macOS:M1/M2/M3/M4 series, 16GB RAM
Dimensional AccuracyAccuracy
Blue Laser Lines: Up to 0.02mm
Infrared Structured Light: Up to 0.075mm
Volumetric Accuracy
Blue Laser Lines: 0.02mm+0.08mm/m
Infrared Structured Light: 0.075mm+0.1mm/m
DistanceSingle Blue Laser Line - 200mm-600mm
7 Parallel Blue Laser Lines - 150mm-400mm
34 Cross Blue Laser Lines - 200-600mm
Close-Range Infrared Structured Light - 170mm-500mm
Long-Range Infrared Structured Light - 200mm-1200mm
Scan SpeedBlue Laser Lines - Up to 90fps
Infrared Structured Light - Up to 30fps
CalibrationCalibration board:
High-precision glass calibration board
Capture DensityMin. scan volume
Blue Laser Lines - 5mm x 5mm x 5mm
Infrared Structured Light - 150mm x 150mm x 150mm
Detail Resolution3D Resolution:
Blue Laser Lines - 0.05-2mm
Infrared Structured Light - 0.1-2mm
FeaturesLaser Safety
Single Blue Laser Line - Class II (eye safe)
7 Parallel Blue Laser Lines - Class I (eye safe)
34 Cross Blue Laser Lines - Class II (eye safe)
Infrared Structured Light - Class I (eye safe)
Product Size/Dimensions225mmx53mmx76mm
Product Weight508g
Shipping weight4.35 kg
Package size349 × 307 × 163 mm

Questions about this item

What interface does the Creality Sermoon S1 use to connect to a PC, and what is the practical data rate?

The scanner connects via USB and transfers up to 1,428,000 measurement points per second at up to 90 fps.

What physical space and mounting does the 225x53x76mm, 508g scanner require?

It is a handheld unit measuring 225x53x76mm and weighing 508g; no fixed mount is needed.

How is the Sermoon S1 calibrated, and what step do users often miss?

Place the supplied high-precision glass calibration board in view, run the on-screen routine, and do not skip the temperature-compensation wait before scanning.
