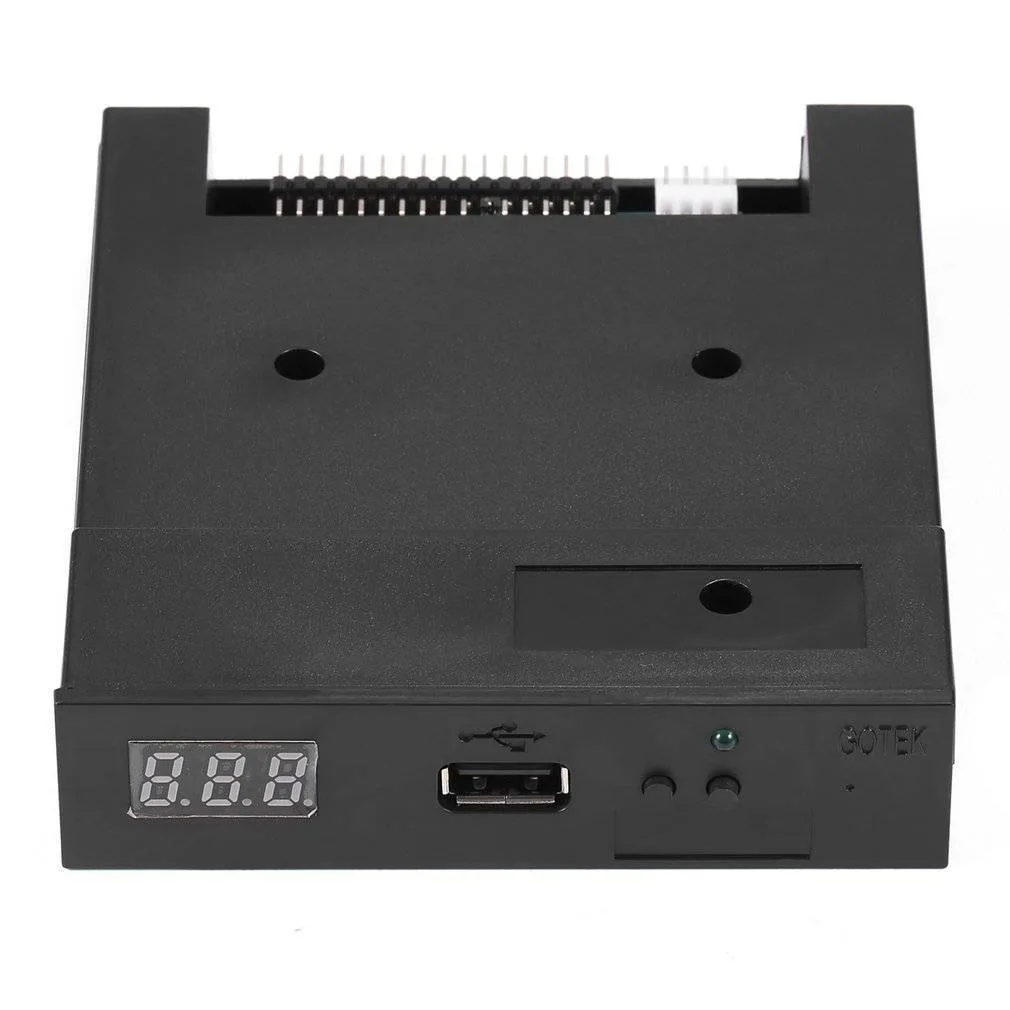

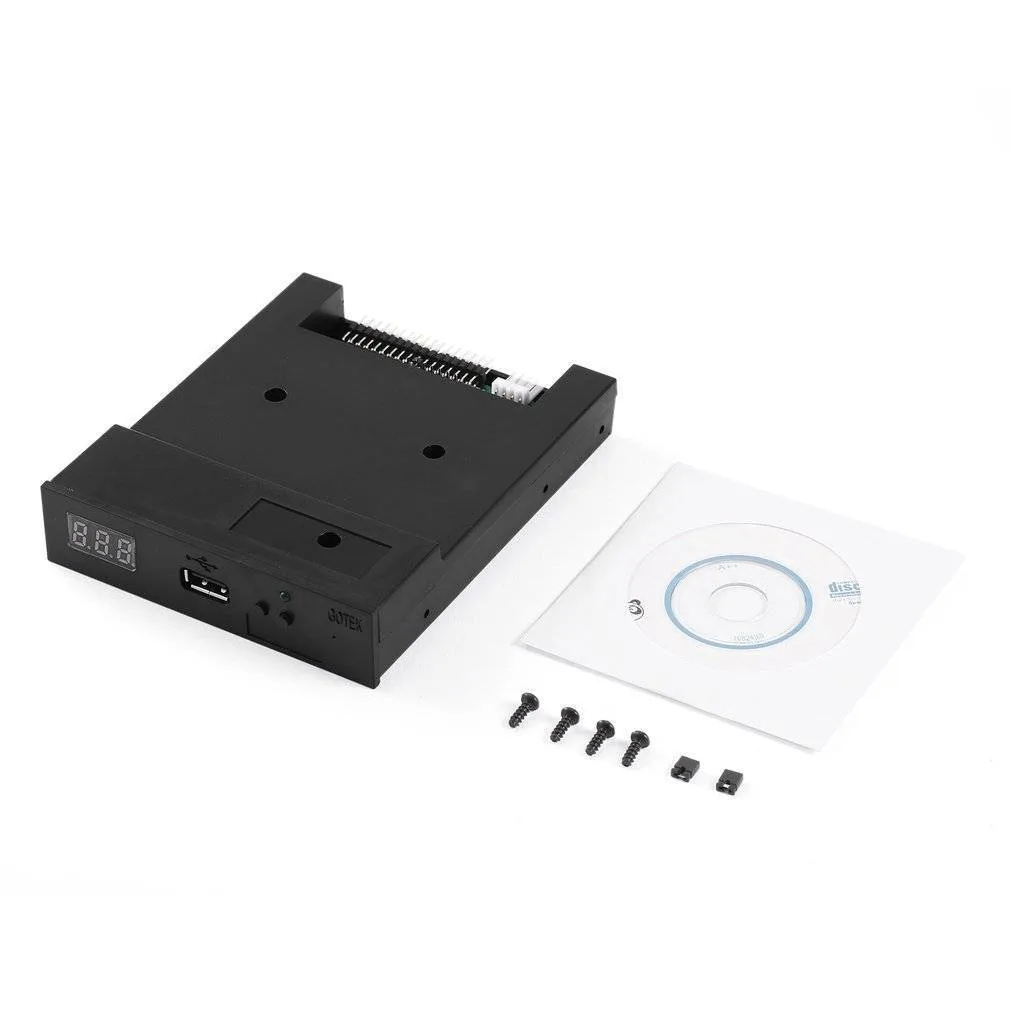

Black 3.5 inch floppy drive emulator with USB port and 34 pin connector

Corn Electronics

Corn Electronics 3.5" 1.44MB Floppy Drive Diskette Emulator Black

SKU CH-ZJD9-K9YY9

Replaces a 3.5" 1.44MB floppy drive with a USB flash emulator using standard 34-pin and 4-pin connections

  • Capacity1.44MB
  • Plug-and-play USB stick slot simplifies data transfer
  • No moving parts eliminate mechanical drive failures
  • 34-pin connector fits standard floppy drive cables
  • 4-pin power input uses existing 5 V supply
  • Compact 121×100×24 mm black chassis weighs 105 g

Floppy Drive Emulator for Legacy Systems

This Corn Electronics emulator replaces a 3.5" 1.44MB floppy drive with a USB stick interface. It fits standard 34-pin cables and 4-pin power connectors. The unit suits industrial machines, vintage computers, or any equipment that still expects a floppy drive.

Solid-State Reliability Under Continuous Use

With no moving parts, the emulator avoids the mechanical wear that causes conventional drives to fail during long runs. Data stays on the USB stick, so repeated read and write cycles do not degrade a magnetic medium. The 5VDC supply draws minimal current.

Compact Black Chassis With Standard Mounting

The 121*100*24mm black enclosure weighs 105g and uses the same screw holes as the drives it replaces. A 34-pin ribbon connector and 4-pin power plug connect directly to existing cabling. The USB port accepts common flash sticks for instant media swaps.

Highlights

  • Plug-and-play USB stick slot simplifies data transfer
  • No moving parts eliminate mechanical drive failures
  • 34-pin connector fits standard floppy drive cables
  • 4-pin power input uses existing 5 V supply
  • Compact 121×100×24 mm black chassis weighs 105 g

Specifications

Capacity1.44MB

Questions about this item

Does the emulator run silently and without extra heat since it has no moving parts?

With no internal moving parts the unit produces no mechanical noise and generates minimal heat during continuous operation.

What cables and power connector must already be present in the system for the 34-pin and 4-pin interfaces to work?

A standard 34-pin floppy ribbon cable and a 4-pin 5 VDC power connector from the existing power supply are required.

Will the emulator replace my Sony MPF-520xx or Alps AL FD 7xx drive without changing the 34-pin cable?

Yes, the 34-pin interface matches the pinout used by Sony MPF-520xx, Alps AL FD 7xx, Panasonic JU-25xxx and Ye Data YD702D drives.
