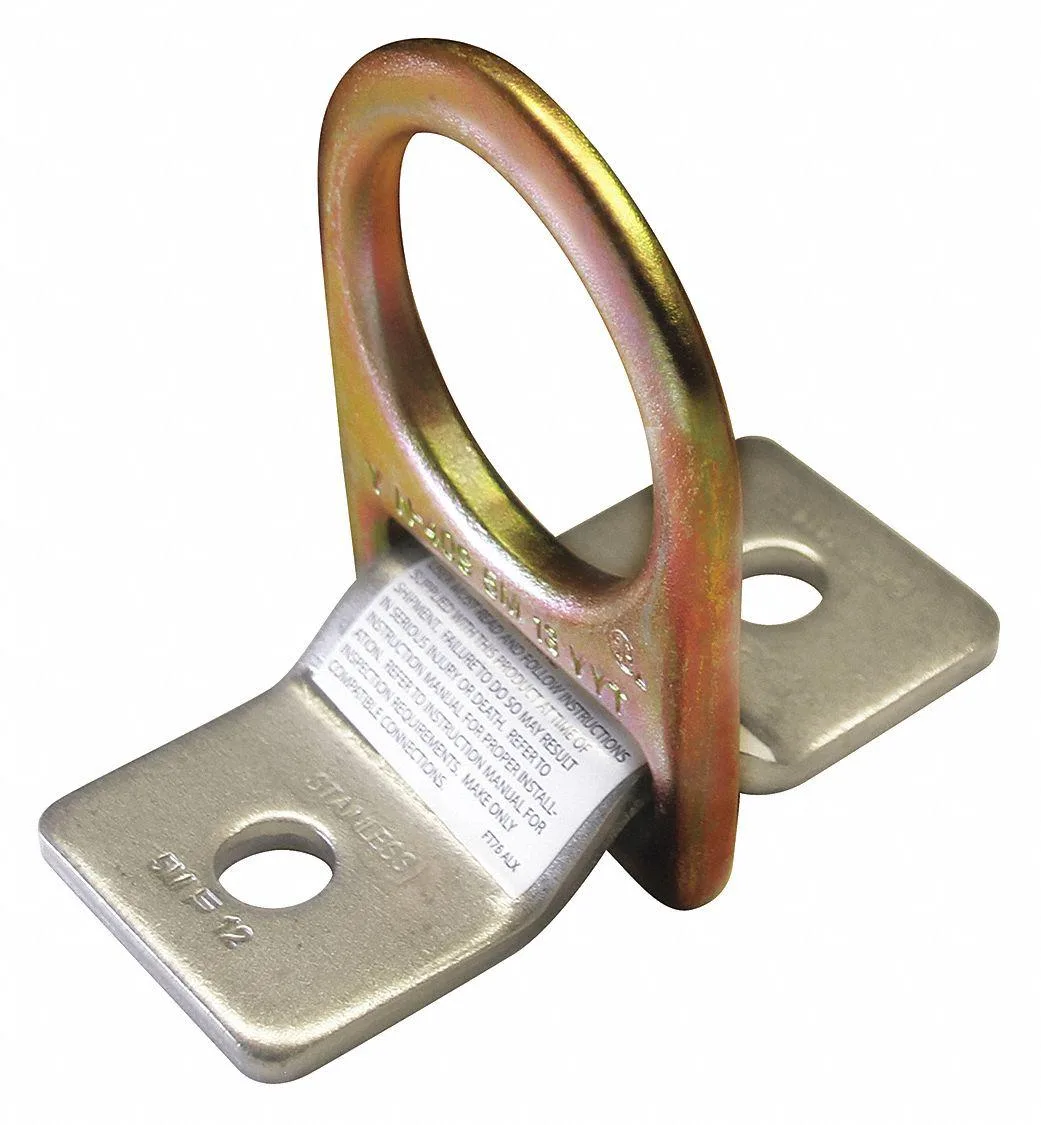

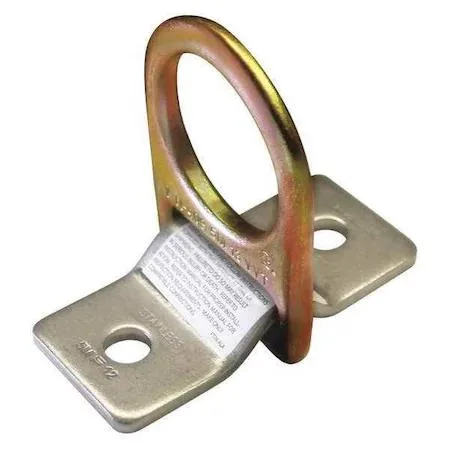

Condor 45J296 D-Ring Anchor 4 1/2 in 425 lb

Purpose-Built Fall Protection

The Condor 45J296 D-Ring Anchor provides a certified tie-off point rated at 425 lb for a single worker. Its steel construction and pivoting D-ring meet ANSI Z 359.3 -2017 requirements for horizontal or vertical mounting. The 4 1/2 in length and 2 in depth suit structural steel or concrete substrates where a reusable anchorage is specified.

Build Integration

The eyebolt plate connection clamps directly to a beam or bolts to a fixed plate, leaving the pivot D-ring free to align with the load direction. Horizontal and vertical mounting orientations give the installer flexibility without additional adapters. Because the anchor is reusable, it can be relocated as the work zone shifts, reducing the number of permanent fixtures required on a project.

Sustained Load Behaviour

Under continuous tension the steel body and pivot mechanism maintain the rated 425 lb capacity without deformation, provided the host structure meets the same strength. The ANSI Z 359.3 -2017 qualification covers static and repeated loading cycles typical of fall arrest and restraint scenarios. The anchor is not designed for loads exceeding the stated capacity or for attaching multiple workers simultaneously.
