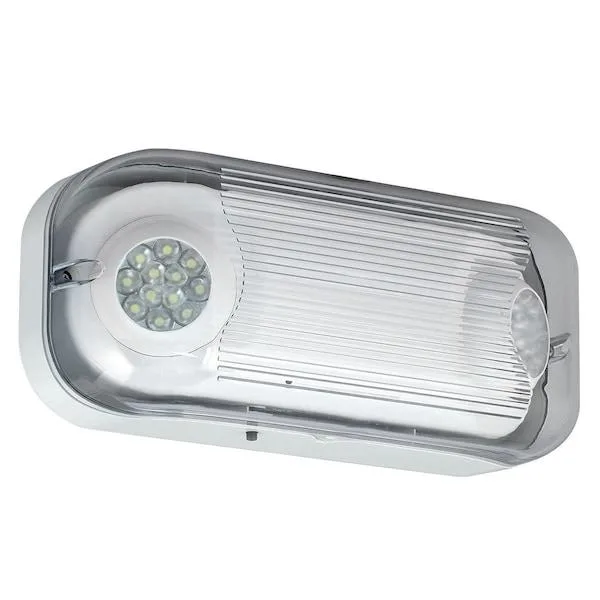

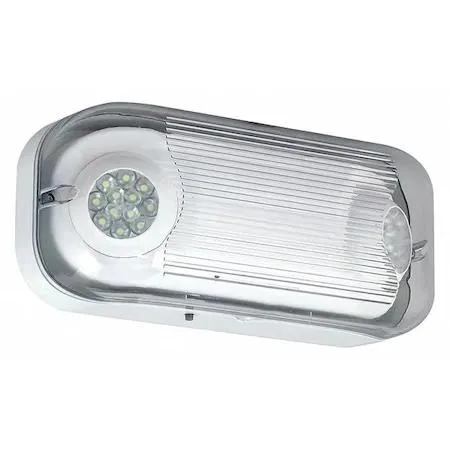

White rectangular plastic emergency light with two adjustable LED heads 13 1/4 inches wide

Compass

Compass CSWEU2LED Emergency Lighting 120/277V 1.2W 90min 2 heads

SKU CH-BYX5-8QE6Z

Dual-head LED emergency light operating on 120/277 V, delivering 90 minutes of backup illumination at 1.2 W

  • Dual-voltage 120/277 V operation simplifies installation
  • LED technology delivers 90 minutes of emergency illumination
  • Two adjustable heads provide flexible coverage
  • Low 1.2 W draw keeps energy costs minimal
  • Nickel-cadmium battery ensures reliable backup power

Emergency LED fixture with dual heads

The Compass CSWEU2LED is a self-contained emergency light that operates on 120/277 V supply and provides 90 minutes of illumination from its nickel-cadmium battery. Two adjustable LED heads deliver a combined 1.2 W output at 3.6 V DC. The white plastic housing measures 13 1/4 in wide by 5 3/8 in long by 5 3/4 in high.

Mounts directly to a standard junction box

The unit connects to the building’s 120 V or 277 V circuit and requires no external driver or remote battery pack. Its integrated charger maintains the nickel-cadmium cells automatically, freeing the installer from specifying separate charging hardware. The compact footprint allows installation in corridors, stairwells or utility rooms where ceiling depth is limited.

Rated for 90 minutes at full output

During a power loss the fixture sustains 1.2 W for the full 90-minute duration, covering the minimum egress period required by most codes. The two-head design illuminates a path in two directions but does not replace higher-lumen units needed for large open areas. Nickel-cadmium chemistry tolerates a wide temperature range but will eventually require cell replacement.

Highlights

  • Dual-voltage 120/277 V operation simplifies installation
  • LED technology delivers 90 minutes of emergency illumination
  • Two adjustable heads provide flexible coverage
  • Low 1.2 W draw keeps energy costs minimal
  • Nickel-cadmium battery ensures reliable backup power

Specifications

BrandCOMPASS

Questions about this item

How long will the 1.2 W LED heads stay lit on battery power?

The unit provides 90 minutes of emergency illumination at the rated 1.2 W output.

Does the nickel-cadmium battery or charger produce noticeable heat or fan noise during continuous operation?

There is no fan; the sealed plastic housing relies on passive cooling so heat and noise remain minimal.

What voltage supply must the building circuit provide for this fixture to charge and operate?

The driver accepts 120/277 V AC input directly from the branch circuit.
