Six thin amber polyimide heater strips, 45 by 100 mm, with adhesive backing

Coliao 6 pcs 45x100 mm 24 V 30 W Polyimide Heater Adhesive

SKU CH-XTA3-ATF90

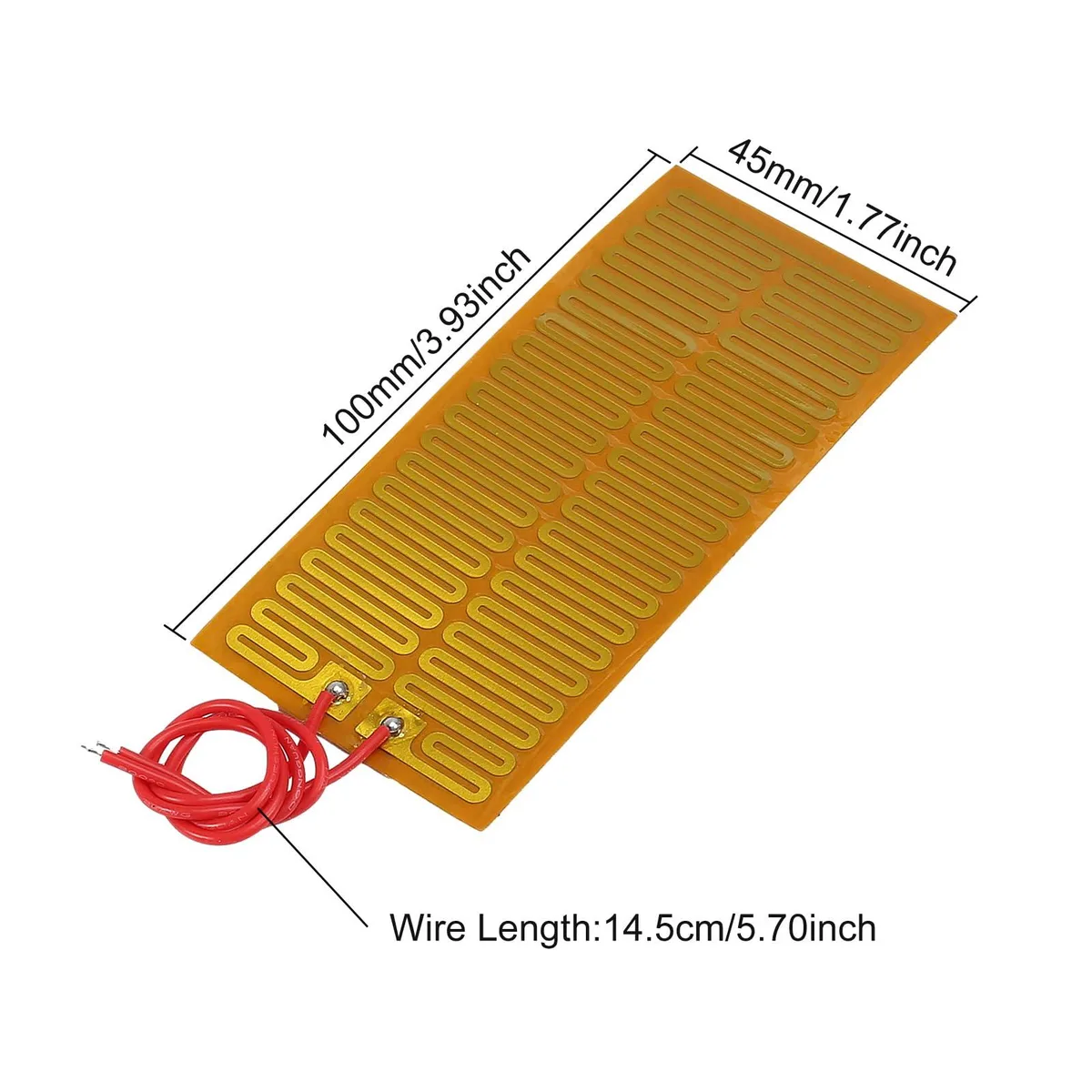

Six adhesive polyimide heater strips, each 45 mm by 100 mm, run on 24 V DC at 30 W and reach up to 170 °C

  • Approvals/Standardsnot_applicable
  • Features45mmx100mm, Coliao
  • Six heaters per pack for multi-zone heating
  • 24 V 30 W each for consistent power
  • Self-adhesive backing for fast surface mounting
  • Ultra-thin polyimide film under .4 mm
  • Operating range -190 °C to 205 °C

Polyimide heater film for 24 V systems

This pack contains six adhesive polyimide heating elements sized 45 mm by 100 mm. Each film runs on 24 V DC and delivers 30 W of heat. The thin construction suits electronics manufacturing, scientific instruments and similar applications where a flexible, low-profile heater is required.

Thermal behaviour and power draw

The heater reaches a maximum surface temperature of about 170 °C and operates across a range of -190 °C to 205 °C. The polyimide insulation provides high thermal efficiency and stable resistance during normal use. A separate 24 V temperature controller is needed because the film cannot regulate its own temperature.

Self-adhesive mounting and durability

Each element includes a pressure-sensitive adhesive backing rated above 40 N per 100 mm for secure attachment. The high-temperature, high-pressure sealing process gives a wire tensile strength exceeding 5 N. The ultra-thin profile of less than 0.4 mm allows the film to conform to curved or flat surfaces without adding bulk.

Highlights

  • Six heaters per pack for multi-zone heating
  • 24 V 30 W each for consistent power
  • Self-adhesive backing for fast surface mounting
  • Ultra-thin polyimide film under .4 mm
  • Operating range -190 °C to 205 °C

Specifications

BrandColiao
Approvals/Standardsnot_applicable
Features45mmx100mm, Coliao

Questions about this item

How do I install the 45x100 mm polyimide heater and what step do people miss?

Clean the mounting surface thoroughly, peel the self-adhesive backing, and press firmly so the >40 N/100 mm adhesive bonds; the missed step is skipping surface prep, which causes the heater to lift under thermal cycling.

What maintenance or replacement will the 24 V 30 W heater need later?

The polyimide film is rated for long service life with high insulation strength; no routine maintenance is required, but replace the pad if the adhesive fails or the element shows physical damage after extended use.

What limit appears first when the 30 W film runs continuously at 24 V?

The maximum heating temperature of 170 °C is reached first; the heater cannot self-regulate, so a 24 V temperature controller must be used to prevent exceeding this limit.
