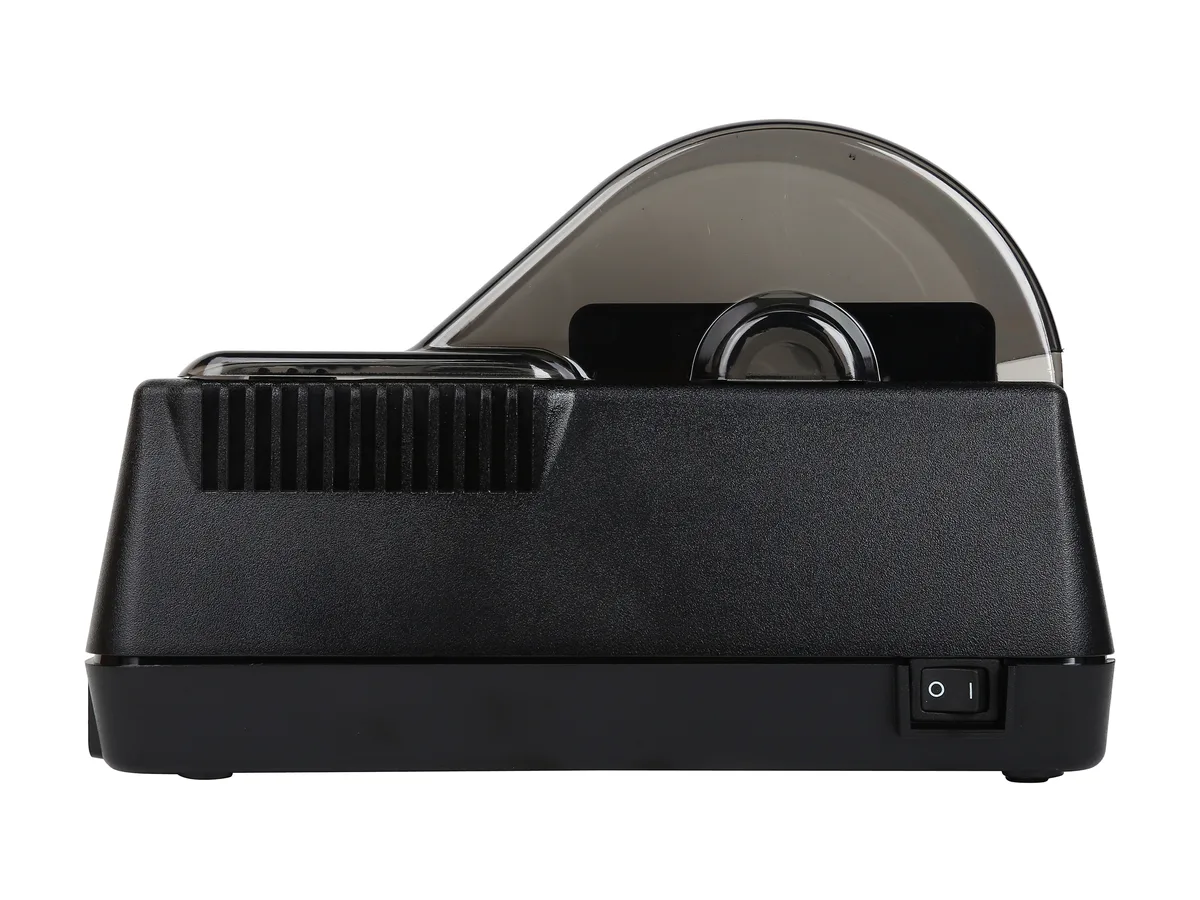

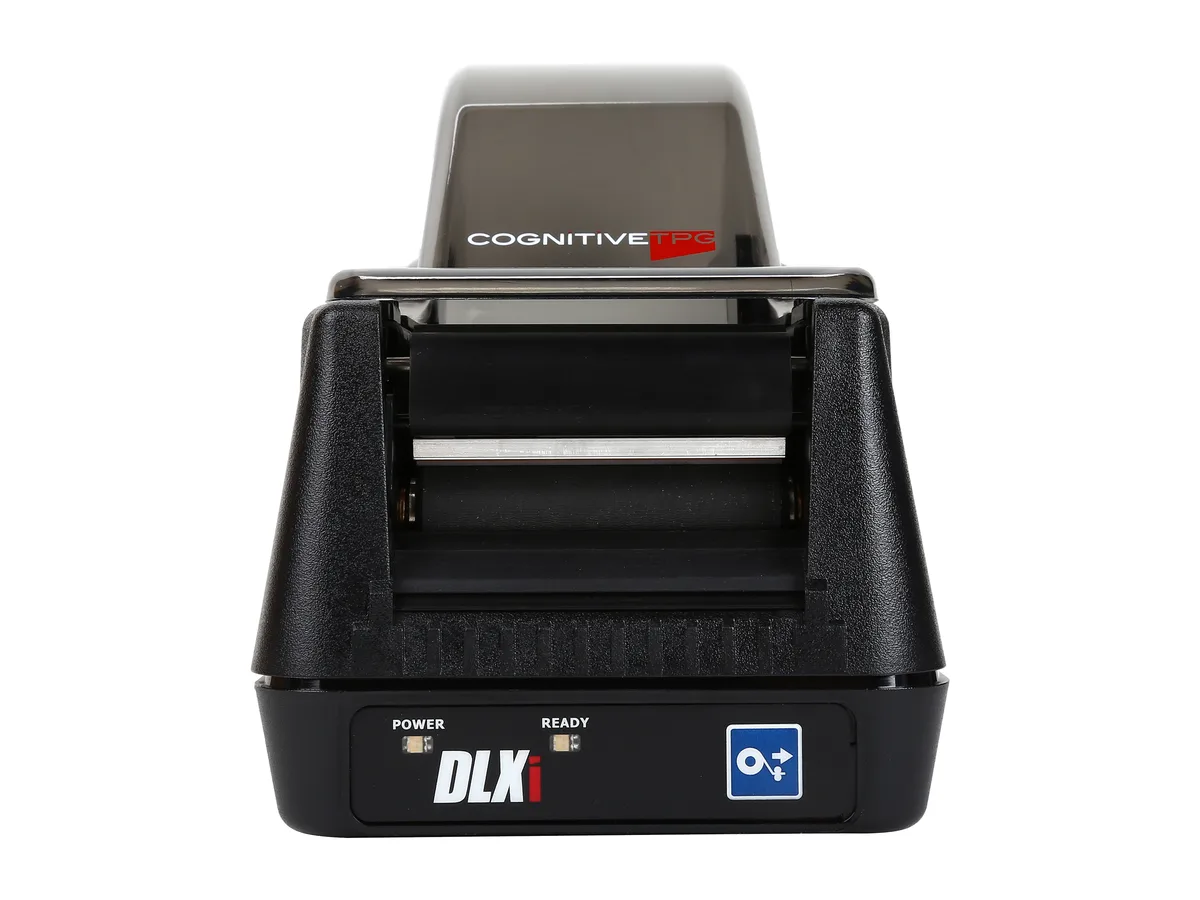

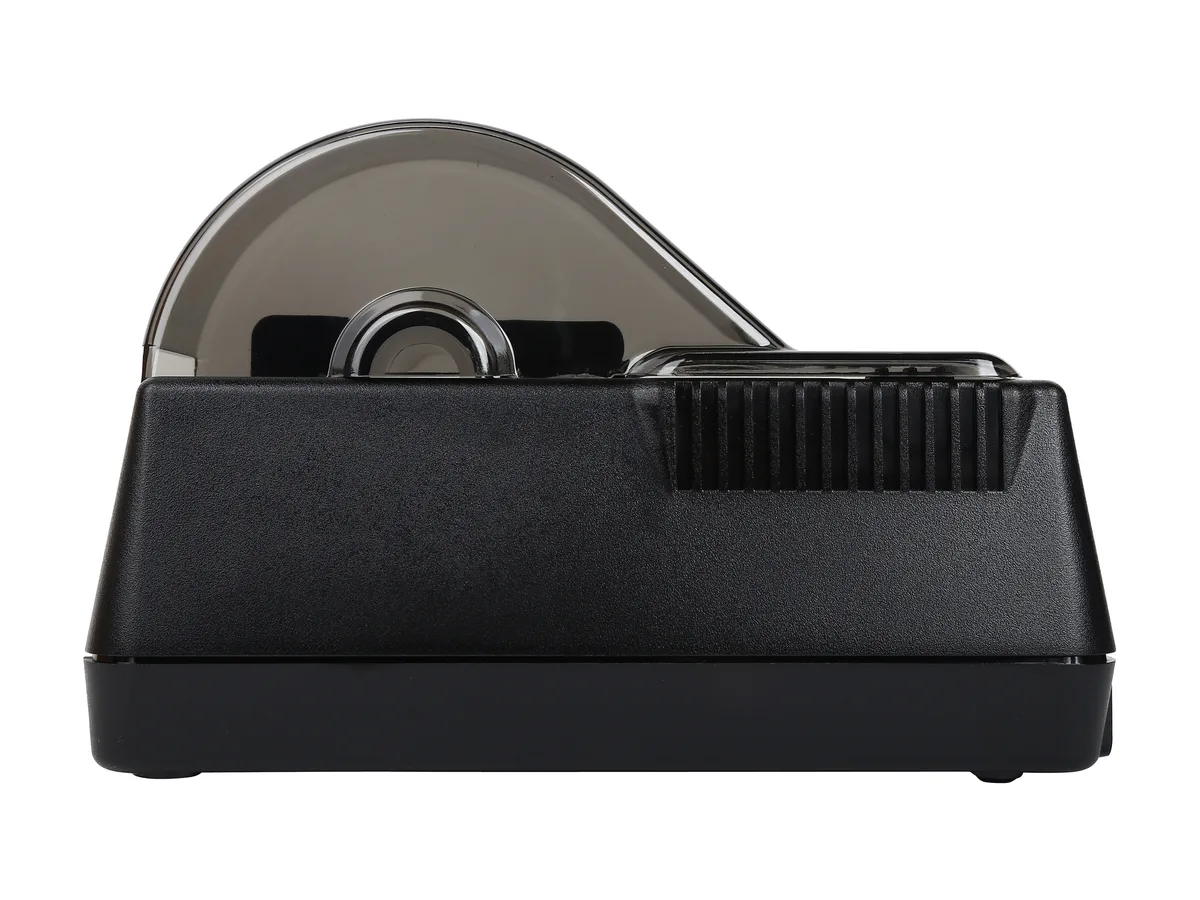

Compact grey desktop label printer with roll holder, front label exit and control panel

Cognitive TPG

Cognitive TPG DLXi DBD24-2085-G1S 2.4in Direct Thermal Label Printer 203 dpi

SKU CH-GBH4-TGQH8 MPN DBD24-2085-G1S

Direct thermal desktop printer producing 2.4-inch labels at up to 5 ips with selectable 101 or 203 dpi resolution

  • Print TechnologyDirect Thermal
  • Printer TypeDesktop
  • Print Speed5 ips (127 mm/sec) max.
  • Max Resolution(B&W)Selectable 101 or 203 dpi
  • Memory16 MB RAM, 8 MB Flash
  • Fonts IncludedBitmapped: 7 styles with up to 10 x 10 magnification, variab
  • Direct thermal printing needs no ink or ribbon
  • 5 ips max speed with selectable 101 or 203 dpi resolution
  • 4 in media width on 4.7 in roll diameter
  • Serial DB9 plus USB A and USB B interfaces
  • 16 MB RAM and 8 MB Flash with 29 barcode types

Desktop Direct Thermal Label Printer

The Cognitive TPG DLXi DBD24-2085-G1S is a desktop barcode and label printer that uses direct thermal technology. It suits operations that need on-demand labels up to 2.4 inches wide in hospitality, logistics, retail or healthcare environments. Selectable resolution of 101 or 203 dpi lets users match print clarity to the application. Print speeds reach 5 inches per second for high-volume tasks.

Metal Frame With Serial USB A And USB B

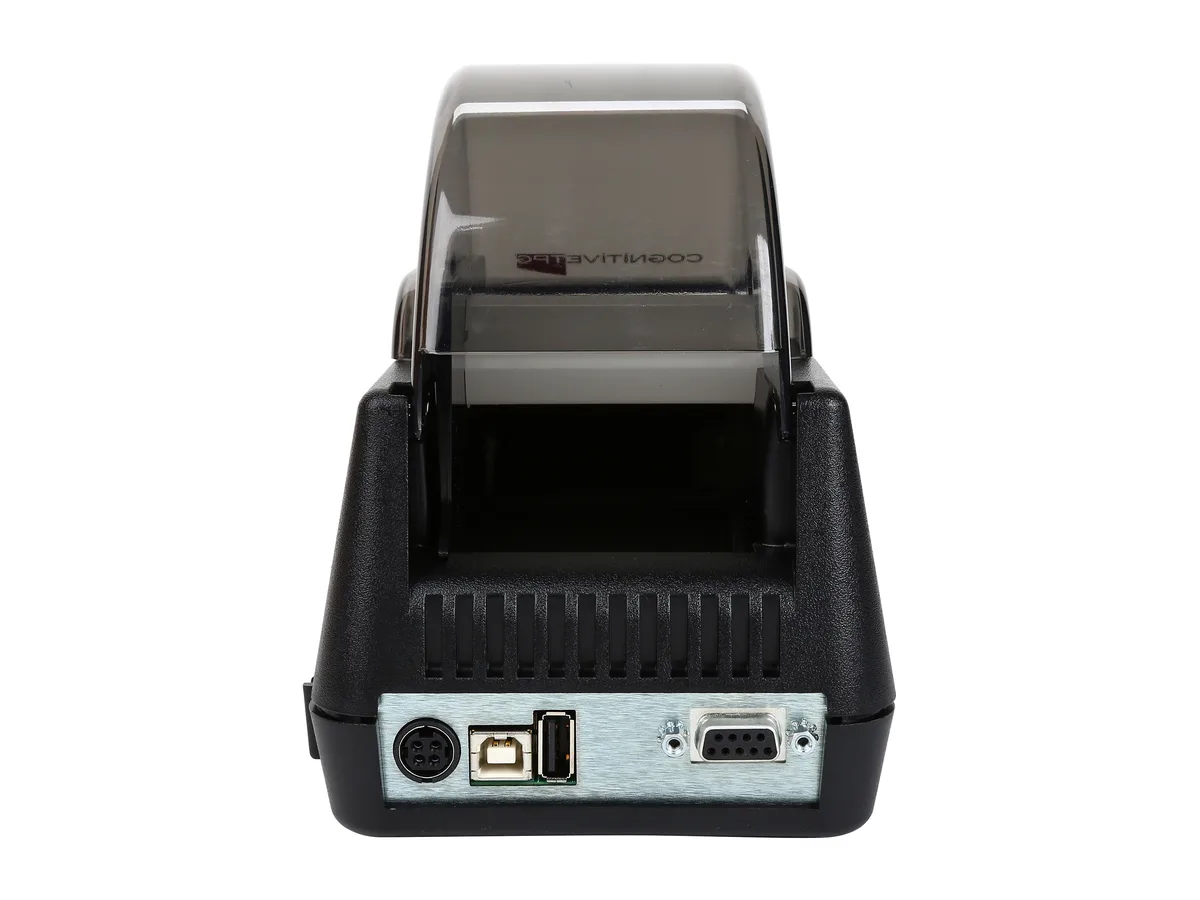

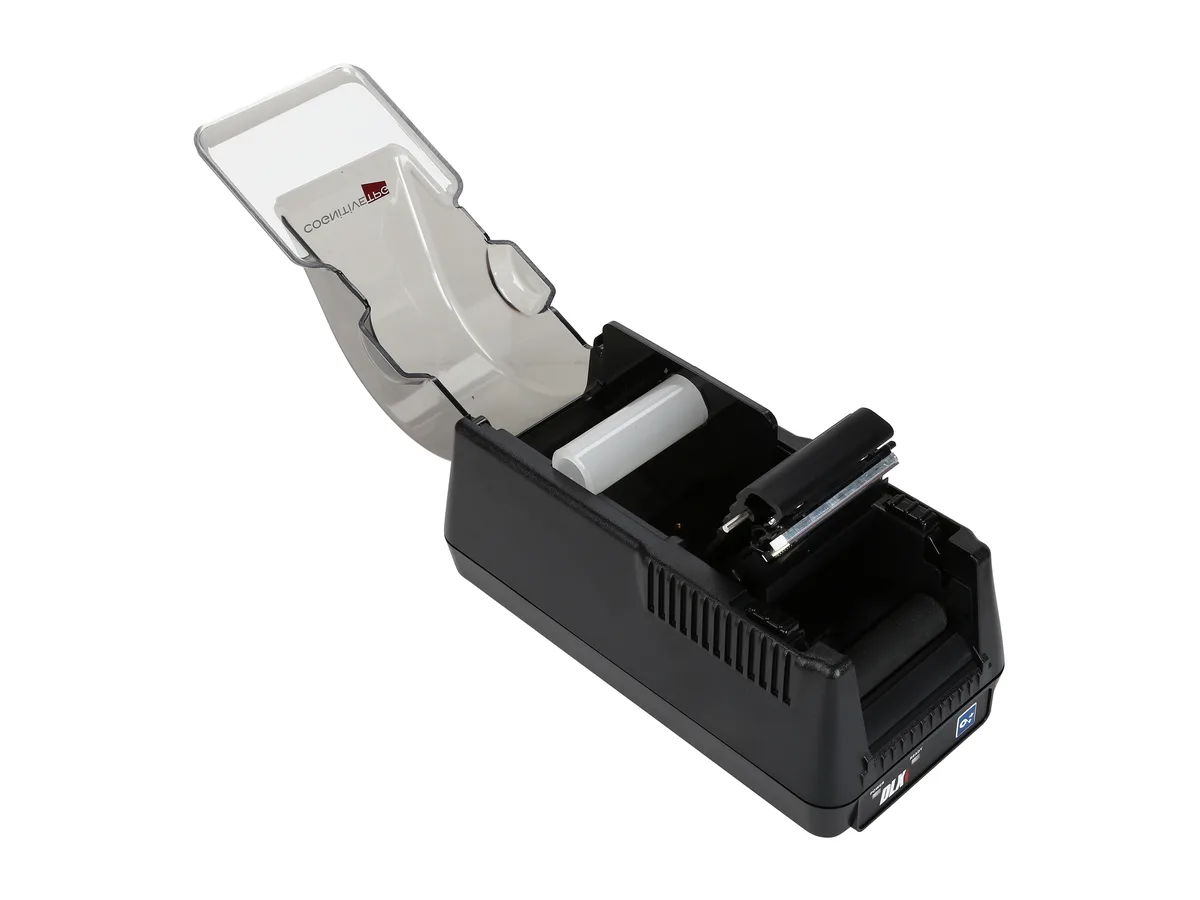

A robust metal frame and print mechanism are built for continuous use in challenging conditions. The unit measures 6.10 by 5.00 by 9.40 inches and weighs 3.10 lbs, fitting on crowded counters or shelves. Connectivity includes a serial DB9 port, USB B for host connection and USB A for attaching a scanner or keyboard. Media rolls up to 4.70 inches in diameter load from the top for quick changes.

CPL EcPL ZcPL Emulations And 16 MB RAM

The printer ships with CPL, EcPL and ZcPL programming languages resident, easing migration from earlier models. Internal memory provides 16 MB RAM and 8 MB Flash for label formats and fonts. Bitmapped fonts in seven styles, an international sans-serif font and scalable smooth fonts cover most labelling needs. Twenty-nine standard barcode symbologies including QR Code, DataMatrix, PDF417 and Maxicode are supported without extra software.

Highlights

  • Direct thermal printing needs no ink or ribbon
  • 5 ips max speed with selectable 101 or 203 dpi resolution
  • 4 in media width on 4.7 in roll diameter
  • Serial DB9 plus USB A and USB B interfaces
  • 16 MB RAM and 8 MB Flash with 29 barcode types

Specifications

BrandCognitive TPG
SeriesDLXi
ModelDBD24-2085-G1S
Print TechnologyDirect Thermal
Printer TypeDesktop
Print Speed5 ips (127 mm/sec) max.
Max Resolution(B&W)Selectable 101 or 203 dpi
Memory16 MB RAM, 8 MB Flash
Fonts IncludedBitmapped: 7 styles with up to 10 x 10 magnification, variable boldness and spacing
International Fonts: Sans-serif font in 7 pt. sizes, up to 4 x 4 magnification, variable boldness and spacing
Scalable Smooth Fonts: 3 Ultra Font styles for smooth characters in any size and boldness
Rotations: 0, 90, 180, 270 degrees
Barcode Type29 standard bar codes, including: Add2, Add5, Codabar, Code39, Code93, Code128A/B/C, D2of5, I2of5, S2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode, MSI/I1, PDF417, Plessey, Postnet, UPCA/A+/E/E1, DataMatrix, Aztec, QR Code, RSS
Media sizes supportedWidth: 1.00" - 2.40" (25.00 - 61.00 mm)
Roll Diameter : 4.70" (119.00 mm)
Print SizeWidth (max): 2.20" (56.00 mm)
Length (max): 322.00" (8179.00 mm) at 203 dpi
InterfaceSerial (DB9), USB A & USB B
Dimensions6.10" x 5.00" x 9.40"
Weight3.10 lbs.
Shipping weight2.59 kg
Package size330 × 305 × 229 mm

Questions about this item

What interfaces does the DBD24-2085-G1S provide, and what is the maximum print speed?

It provides Serial DB9, USB A and USB B interfaces and prints at up to 5 ips (127 mm/sec).

What label roll diameter and media width range fit in this printer?

It accepts rolls up to 4.70" diameter and media widths from 1.00" to 2.40".

How is the DBD24-2085-G1S installed, and what step is often missed?

Connect via USB B or Serial, install the driver, then select the correct 101 or 203 dpi resolution in the driver to match the label design.
