Cognitive TPG

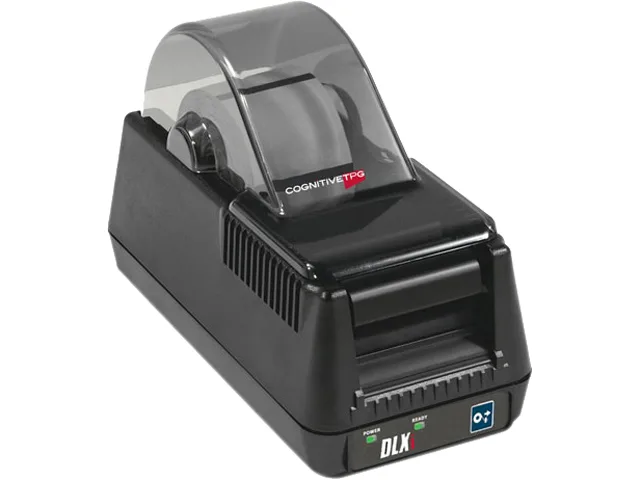

Cognitive TPG DBD24-2085-G1P label printer
Direct-thermal desktop barcode printer producing 203 dpi labels at 5 inches per second with USB and parallel interfaces
- Print TechnologyDirect Thermal
- Printer TypeDesktop
- Print Speed5 ips
- Max Resolution(B&W)203 dpi
- MemoryRAM: 16 MB Flash: 8 MB
- Fonts IncludedBitmapped: 7 styles with up to 10x10 magnification, variable
- Direct thermal printing eliminates ribbon costs
- 5 ips print speed handles high-volume labeling
- 203 dpi resolution produces sharp barcodes and text
- USB and parallel ports connect to legacy and modern systems
- Compact 6.1 x 4.7 x 9.4 in footprint fits tight workspaces
Desktop Direct Thermal Printer
The Cognitive TPG DBD24-2085-G1P is a desktop barcode and label printer built on a metal frame for continuous operation in retail, logistics, healthcare and light manufacturing. It prints receipts, shipping labels and asset tags at 203 dpi using direct thermal technology without ink or toner.
USB and Parallel Interface Limits
Connectivity relies on one USB port and one parallel port, so the printer fits legacy and current POS systems without extra adapters. The parallel connection caps cable length and data throughput compared with modern serial or network links, which may restrict placement in larger facilities.
2.4-Inch Media Capacity and Print Length
The unit accepts roll media from 25 mm to 61 mm wide with a maximum roll diameter of 119 mm, yielding a printable width of 56 mm and a maximum label length of 8179 mm. Internal memory holds 16 MB RAM and 8 MB flash for fonts and formats; very high-volume or wide-format jobs exceed the mechanical limits of this chassis.
Highlights
- Direct thermal printing eliminates ribbon costs
- 5 ips print speed handles high-volume labeling
- 203 dpi resolution produces sharp barcodes and text
- USB and parallel ports connect to legacy and modern systems
- Compact 6.1 x 4.7 x 9.4 in footprint fits tight workspaces
Specifications
| Brand | Cognitive TPG |
|---|---|
| Model | DBD24-2085-G1P |
| Print Technology | Direct Thermal |
| Printer Type | Desktop |
| Print Speed | 5 ips |
| Max Resolution(B&W) | 203 dpi |
| Memory | RAM: 16 MB Flash: 8 MB |
| Fonts Included | Bitmapped: 7 styles with up to 10x10 magnification, variable boldness and spacing International: Sans serif font in 7 pt. sizes, up to 4x4 magnification, variable boldness and spacing Scalable Smooth Fonts: 3 Ultra Font styles for smooth characters inany size and boldness Rotations: 0, 90, 180, 270 degrees |
| Barcode Type | 29 standard bar codes, including Add2, Add5, Codabar, Code39, Code93, Code 128A/B/C, D2of5, I2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode mode 0, MSI/MSI1, PDF417, Plessey, Postnet, UPCA/A+, DataMatrix, Aztec, QR Code, RSS |
| Media Type | Black Bar Notch Gap |
| Media sizes supported | Width: 1" - 2.4" (25 mm - 61 mm) Roll Diameter: 4.7" (119 mm) Ribbon Length (TT models only): 3150" (80 m) |
| Print Size | Width (max): 2.2" (56 mm) Length (max): 322" (8179 mm) |
| Interface | Parallel / USB |
| Dimensions | 6.10" x 4.70" x 9.40" |
| Weight | 3.1 lbs. |
| Shipping weight | 6.03 kg |
| Package size | 635 × 330 × 330 mm |
Questions about this item
How do I choose between the direct thermal and thermal transfer versions?
The DBD24-2085-G1P is a direct thermal only printer; it does not use ribbons and prints on heat-sensitive media up to 2.4" wide.
What does 203 dpi mean for my barcode labels?
At 203 dpi the printer produces standard-density barcodes and text suitable for shipping labels, receipts and general-purpose tags.
Which interfaces are built in and what limits do they set?
The unit includes USB and parallel ports; USB handles most modern POS systems while parallel supports legacy installations.
