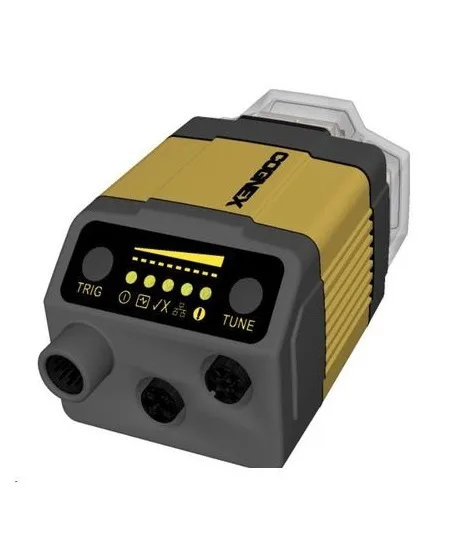

Compact fixed-mount barcode reader with C-mount lens option and Ethernet port

Cognex DMR-302X-00 DataMan 300 1D/2D Fixed-Mount Barcode Scanner

SKU CH-V4T5-1FK51 MPN DMR-302X-00

Fixed-mount reader captures 1D and 2D codes at 1280x1024 pixels via RS-232 and Ethernet on 24 Vdc supply

  • Reads 1D and 2D barcodes with DataMan 300 series
  • 1280 x 1024 pixel CMOS sensor captures detailed images
  • Global shutter technology prevents motion blur on moving codes
  • RS-232 and Ethernet interfaces integrate with industrial networks
  • 24 VDC supply with trigger and discrete I/O for automation

Fixed-mount barcode reader for 1D and 2D codes

The Cognex DataMan 300 series scanner reads one-dimensional and two-dimensional barcodes from a fixed position. It uses a 1/1.8 inch CMOS sensor with a global shutter and a resolution of 1280 by 1024 pixels. The unit operates on a 24 Vdc supply voltage and is designed for industrial identification tasks.

Suited for RS-232 or Ethernet integration

This model fits systems that communicate over RS-232 or Ethernet and can provide a 12 to 28 Vdc trigger signal to the single digital input. A second digital input and two digital outputs rated at 26.4 Vdc and 50 mA sink or source are available for discrete I/O. Buyers who need a different communication protocol or a handheld form factor should look at other products.

1280x1024 pixel global-shutter CMOS sensor

The 1/1.8 inch CMOS sensor captures 1280 by 1024 pixels using a global shutter, which prevents distortion when reading moving codes. This resolution and shutter type determine the field of view and motion tolerance for the application. Verify that the pixel count meets the detail requirements of the specific barcode sizes and conveyor speeds in use.

Highlights

  • Reads 1D and 2D barcodes with DataMan 300 series
  • 1280 x 1024 pixel CMOS sensor captures detailed images
  • Global shutter technology prevents motion blur on moving codes
  • RS-232 and Ethernet interfaces integrate with industrial networks
  • 24 VDC supply with trigger and discrete I/O for automation

Specifications

No published specifications for this item yet.

Questions about this item

How do I mount the Cognex DMR-302X-00 and what alignment step is often missed?

Mount using C-mount or S-mount threads; the step often missed is setting the working distance so the 1280x1024 pixel CMOS sensor captures the full code within its field of view.

Which components of the DataMan 302X will need replacement over time?

The 1/1.8" CMOS sensor and the two 26.4Vdc 50mA digital outputs are solid-state with no moving parts; only the external 24Vdc power supply may need replacement.

What is the first limit reached during continuous high-speed scanning on the DMR-302X-00?

The global shutter sensor captures each frame at full 1280x1024 resolution, so the first limit is the RS-232 or Ethernet bandwidth needed to transfer decoded data at line speed.
