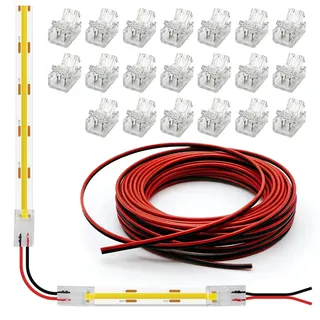

Twenty transparent solderless connectors on a spool with 6m black and red 22AWG cable

COB LED Strip to Wire Connector Kit 20 Pack 6m 22AWG Cable IP30 Transparent

SKU CH-0K29-QW58S

Solderless kit connects 8 mm single-colour COB LED strips to 6 m of 22 AWG cable with 20 transparent IP30 connectors for 5 V, 12 V or 24 V indoor use

  • ColorTransparent
  • Standards/CertificationsIP30
  • Commercial/Residentialindoor
  • Solder-free connection for 8 mm COB strips
  • 6 m 22 AWG cable on spool for custom lengths
  • Works with 5 V, 12 V and 24 V single-colour tape
  • Clear housing shows pin alignment for reliable contact
  • IP30 rated for indoor non-waterproof installations

COB LED Strip Connector Kit

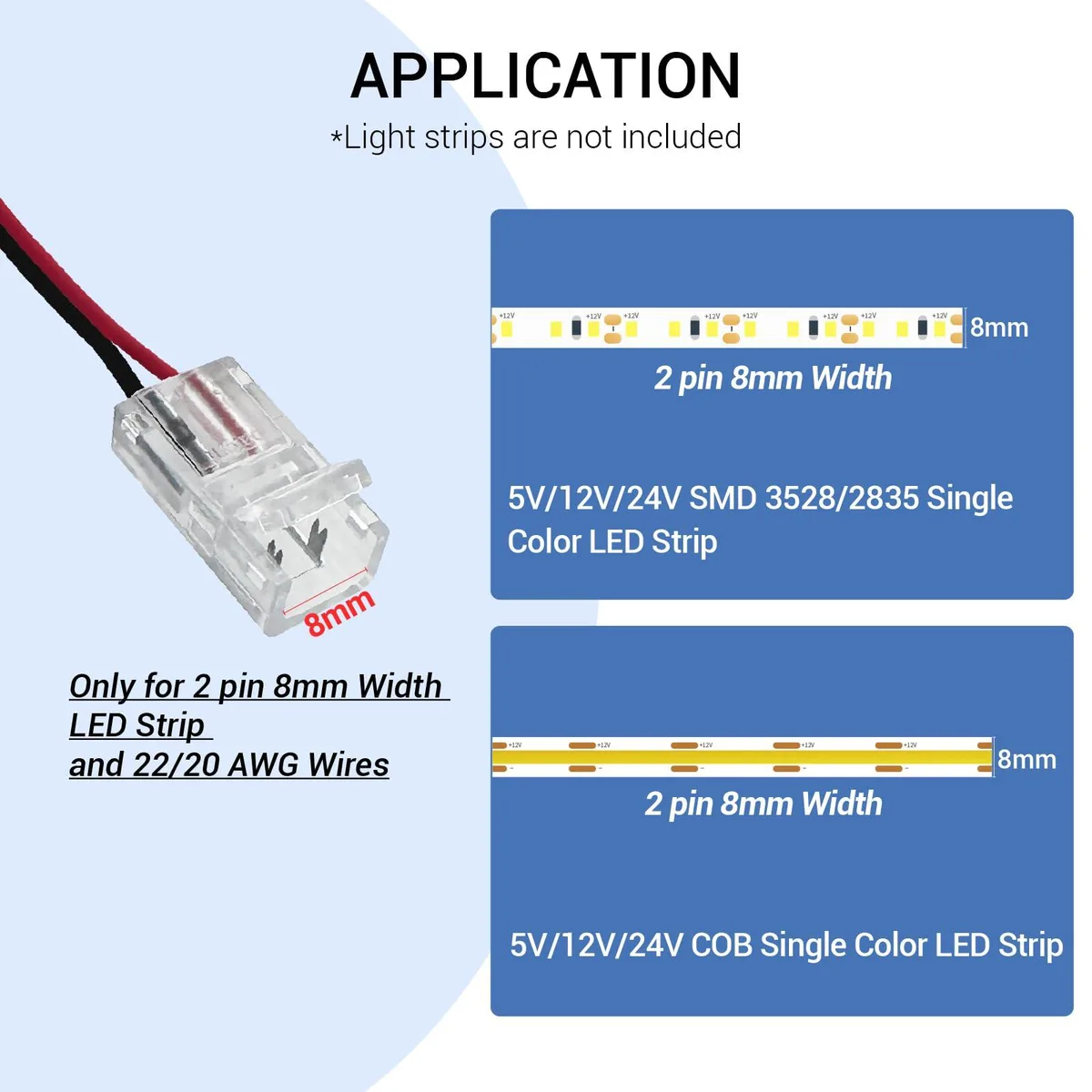

This kit provides 20 transparent solderless connectors designed for 8mm two-pin COB LED strip lights. Each connector joins a strip to the supplied 22AWG extension cable without stripping or soldering. The components are rated IP30 for indoor use and support 5V, 12V and 24V single-colour strips.

Low-voltage indoor power handling

The connectors use tin-plated copper cores and PVC insulation to carry low-voltage current safely in dry indoor environments. Because the system operates at 5V, 12V or 24V, power draw and heat remain minimal during normal operation. No active cooling or noise is produced by the passive connectors and cable.

Replaces soldering for cut COB strips

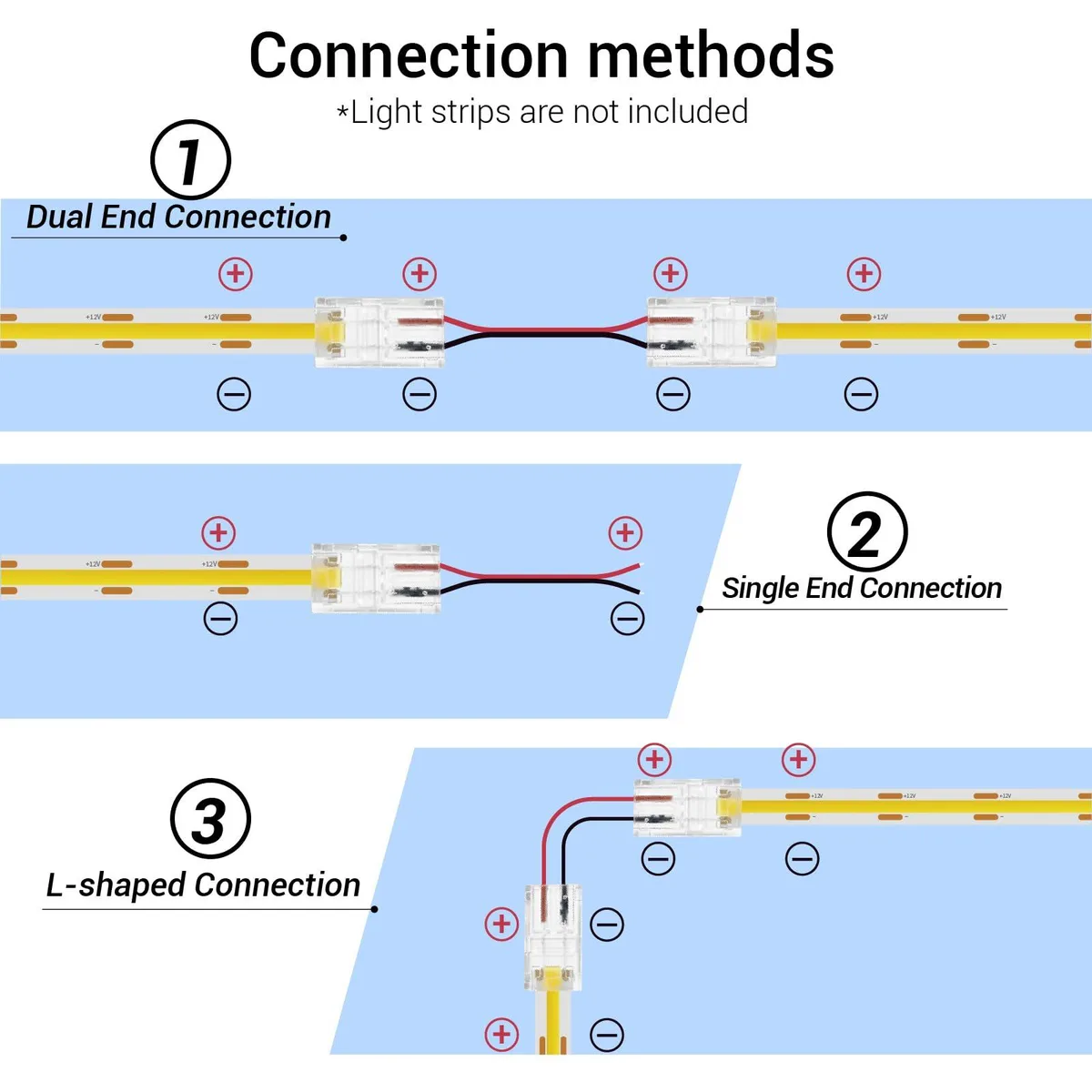

When a 5m COB strip is cut into shorter sections, each piece needs a new power feed; this kit replaces the soldering iron and heat-shrink normally required. The jump is worth it for DIYers who want a quick, tool-free way to reconnect multiple segments to a single controller or adapter. Not suited for waterproof strips or installations needing IP-rated sealing.

Highlights

  • Solder-free connection for 8 mm COB strips
  • 6 m 22 AWG cable on spool for custom lengths
  • Works with 5 V, 12 V and 24 V single-colour tape
  • Clear housing shows pin alignment for reliable contact
  • IP30 rated for indoor non-waterproof installations

Specifications

ColorTransparent
Standards/CertificationsIP30
Commercial/Residentialindoor

Questions about this item

How do I install the 20 transparent connectors onto 8 mm COB strip without soldering?

Align the strip's front soldering pads with the connector pins, snap the clear cover shut using the two included opening clips, and repeat for each of the 20 connectors — no wire stripping or soldering required.

What maintenance will the 6 m 22 AWG extension cable and connectors need over time?

The tin-plated copper cores and PVC insulation are designed for long-lasting indoor use; simply inspect connections periodically and reseat any clip that loosens — no scheduled replacement is needed.

What is the first limit I will hit when running these connectors at 24 V continuously?

The IP30 rating restricts the kit to dry indoor environments, so sustained moisture or dust exposure becomes the limiting factor before electrical capacity.
