Small black rectangular camera board with 15-pin ribbon cable attached

ClearOne 16018 (2/3) 5MP IR-Cut Webcam 1080p 30fps USB 3.0

SKU CH-BFVR-4TDZE MPN 2/3

5 MP camera module with automatic IR-cut switching and manual focus connects to Raspberry Pi via 15-pin CSI ribbon cable for 1080p30 video

  • Disclaimernot_applicable
  • Name16018
  • ColorBlack
  • InterfaceUSB 3.0
  • Image SensorCCD
  • Max. Image Resolution1920 x 1080
  • Automatic IR-cut switching for clear day and night video
  • 5 megapixel OV5647 sensor captures 2592 x 1944 still images
  • Records 1080p at 30fps and 720p at 60fps video
  • 15-pin MIPI CSI ribbon cable connects directly to Raspberry Pi boards
  • Compact 25 x 20 x 9 mm board weighs just over 3 g

Raspberry Pi Camera Module

The ClearOne 16018 is a 5MP camera module designed for Raspberry Pi boards including A, B, B+, 2, 3, 3B+, Zero and Zero W. It connects via a 15-pin ribbon cable to the dedicated MIPI CSI interface. The OV5647 sensor captures 2592 x 1944 still images and records 1080p at 30fps, 720p at 60fps and 640x480p at 60 or 90fps. Automatic IR-cut switching provides clear day and night vision.

Upgrade From Basic Camera Modules

This module replaces fixed-focus webcams lacking IR-cut functionality. The automatic day/night switching eliminates manual filter changes for continuous monitoring. The jump is worth it for projects requiring 5MP stills, 1080p video at 30fps or low-light performance without external illumination. Builders needing higher frame rates at 1080p or motorised focus should look elsewhere.

Integration With Pi Builds

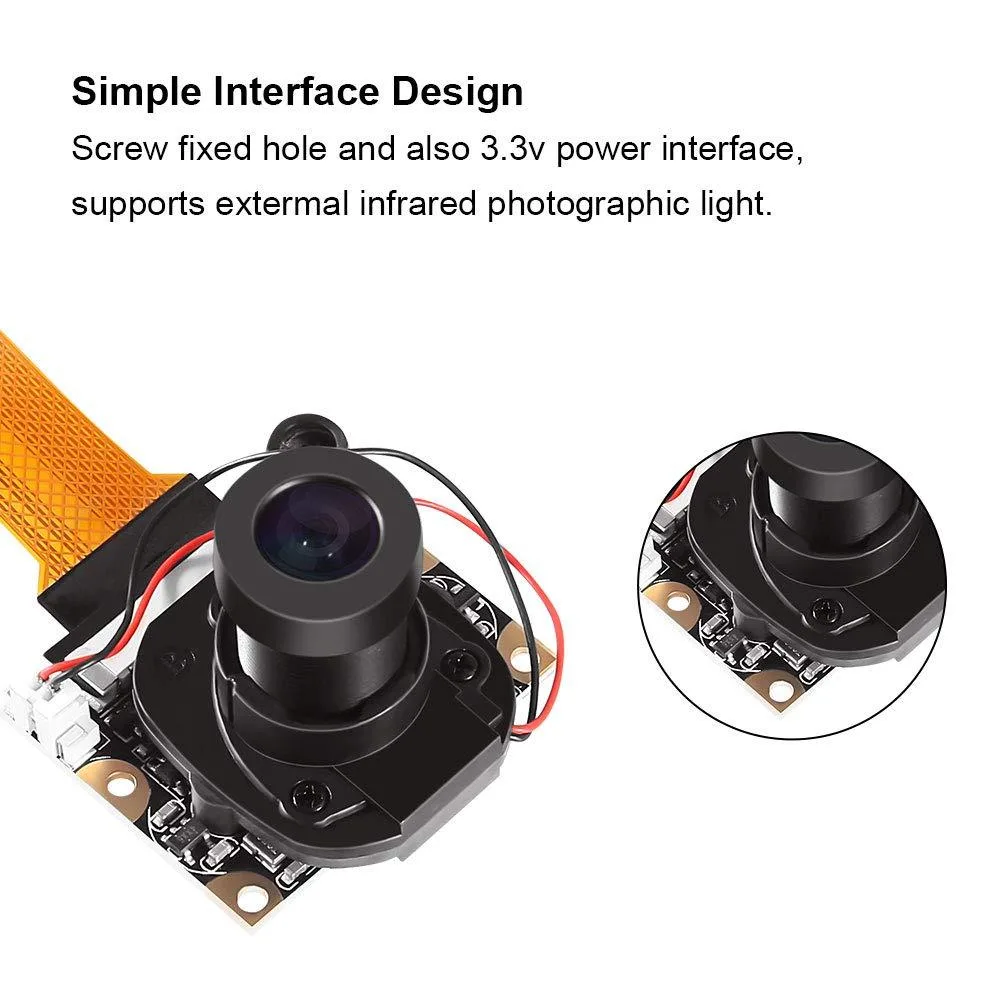

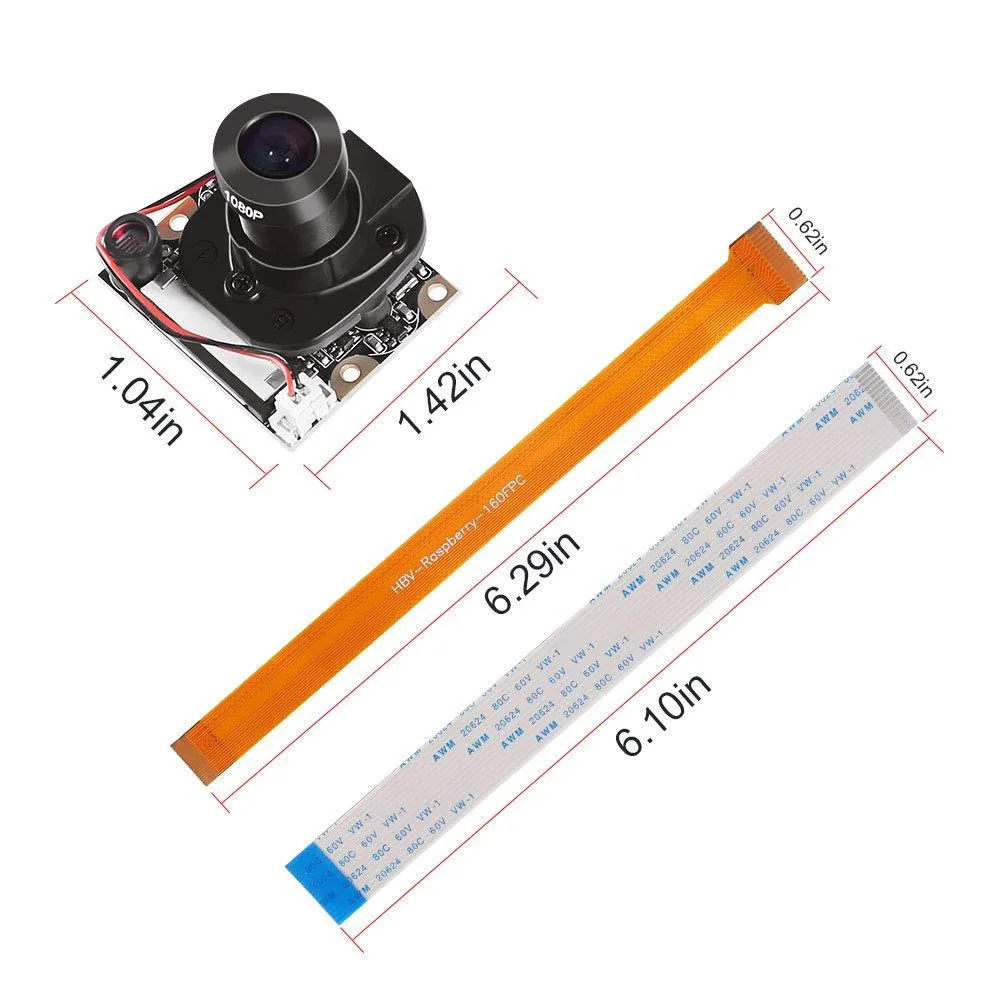

The 25mm x 20mm x 9mm board fits tight enclosures and adds minimal weight. A 15-pin CSI cable for Pi 2/3 B/B+ is included. The module draws power directly from the CSI bus, freeing USB ports for other peripherals. Raspbian support is native in current releases. Buyers needing USB 3.0 connectivity, tripod mounts or standalone operation without a Pi board cannot use this module.

Highlights

  • Automatic IR-cut switching for clear day and night video
  • 5 megapixel OV5647 sensor captures 2592 x 1944 still images
  • Records 1080p at 30fps and 720p at 60fps video
  • 15-pin MIPI CSI ribbon cable connects directly to Raspberry Pi boards
  • Compact 25 x 20 x 9 mm board weighs just over 3 g

Specifications

Disclaimernot_applicable
BrandClearOne
Name16018
Model16018
Part Number16018
ColorBlack
InterfaceUSB 3.0
Image SensorCCD
Max. Image Resolution1920 x 1080
Focus SettingsManual Focus
LensPrime
Power SourceInfrared, false
Shutter ControlAutomatic, Night
FeaturesNight Vision, Education, experimentation, hobbyist projects
Package ContentsCamera Module, Cable for Rpi Model 2/3 B/B+

Questions about this item

How does the 15-pin CSI ribbon cable connect to a Raspberry Pi board?

Insert the cable into the dedicated 15-pin MIPI Camera Serial Interface on the Pi with the contacts facing the HDMI port, then lock the retaining clip to secure it.

What step is often missed when enabling the camera in software?

After physical connection, enable the camera interface in raspi-config under Interface Options, then reboot the Pi before testing with libcamera or raspivid.

How do I clean the IR-cut filter glass without damaging the coating?

Use a dry microfibre cloth or optics brush; if needed, lightly dampen the cloth with isopropyl alcohol and wipe gently in a circular motion, avoiding pressure on the lens barrel.
