Cisco Systems, Inc.
Cisco Systems, Inc. WAP150-A-K9-NA access point
Dual-radio 802.11ac access point reaching 1.2 Gbps with gigabit PoE and controller-less multi-AP setup
- StandardsIEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 8
- System RequirementsLinux
- Interface10/100/1000 Ethernet, with support for 802.3af /at PoE, powe
- LEDs1 multifunction LED
- ButtonsReset button, power on / off push button
- Power SupplyIEEE 802.3af Ethernet switch Cisco Power Injector - SB-PWR-I
- Up to 1.2 Gbps dual-band throughput for higher capacity
- Gigabit Ethernet with PoE enables flexible placement without extra power cabling
- Single Point Setup manages multiple access points without a hardware controller
- Captive portal provides secure guest access with custom roles
- Web-based wizard and Cisco FindIT support simplify installation and monitoring
Cisco WAP150 dual-radio access point
The Cisco WAP150 is a Wireless-AC/N dual-radio access point designed for small-business networks. It supports IEEE 802.11ac and 802.11n standards with a combined data rate of 1.2 Gbps. The unit includes a Gigabit Ethernet port with Power over Ethernet support and comes with a 12 V 1.5 A AC adapter. Single Point Setup allows controller-less deployment of multiple units.
Suits small businesses needing simple multi-AP Wi-Fi
Organisations that want to extend wireless coverage without a dedicated controller will benefit from the built-in Single Point Setup feature. A captive portal provides secure guest access with customisable roles. Buyers who require a hardware controller, advanced roaming features, or multi-gigabit uplink speeds should consider other solutions.
1.2 Gbps concurrent dual-band throughput
The concurrent dual-radio design delivers up to 1.2 Gbps aggregate wireless throughput, which determines how many clients and how much traffic each access point can handle. Peak power draw is 9.5 Watts via 802.3af PoE or the included adapter. Operating temperature ranges from 0 to 40 °C with 10 % to 85 % non-condensing humidity.
Highlights
- Up to 1.2 Gbps dual-band throughput for higher capacity
- Gigabit Ethernet with PoE enables flexible placement without extra power cabling
- Single Point Setup manages multiple access points without a hardware controller
- Captive portal provides secure guest access with custom roles
- Web-based wizard and Cisco FindIT support simplify installation and monitoring
Specifications
| Brand | Cisco Small Business |
|---|---|
| Model | WAP150-A-K9-NA |
| Standards | IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
| System Requirements | Linux |
| Interface | 10/100/1000 Ethernet, with support for 802.3af /at PoE, power port for AC adapter (included) |
| LEDs | 1 multifunction LED |
| Buttons | Reset button, power on / off push button |
| Power Supply | IEEE 802.3af Ethernet switch Cisco Power Injector - SB-PWR-INJ2-xx AC adapter - SB-PWR-12V / 1.5A power adapter in a box POE power Peak power: 9.5Watts |
| Temperature | Operating temperature: 0 degree to 40 degree C (32 degree to 104 degree F) Storage temperature: -20 degree to 70 degree C (-4 degree to 158 degree F) |
| Humidity | Operating humidity: 10% to 85% noncondensing Storage humidity: 5% to 90% noncondensing |
| Dimensions | 1.50" x 5.31" x 5.31 |
| Weight | 0.77 lbs. |
| Features | The concurrent dual-band radio supports up to 1.2 Gbps for increase capacity and coverage Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points, without requiring additional hardware The Gigabit Ethernet LAN interface can enable a high-speed uplink to the wired network Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information A captive portal support supports highly secure, customized guest access with multiple rights and roles |

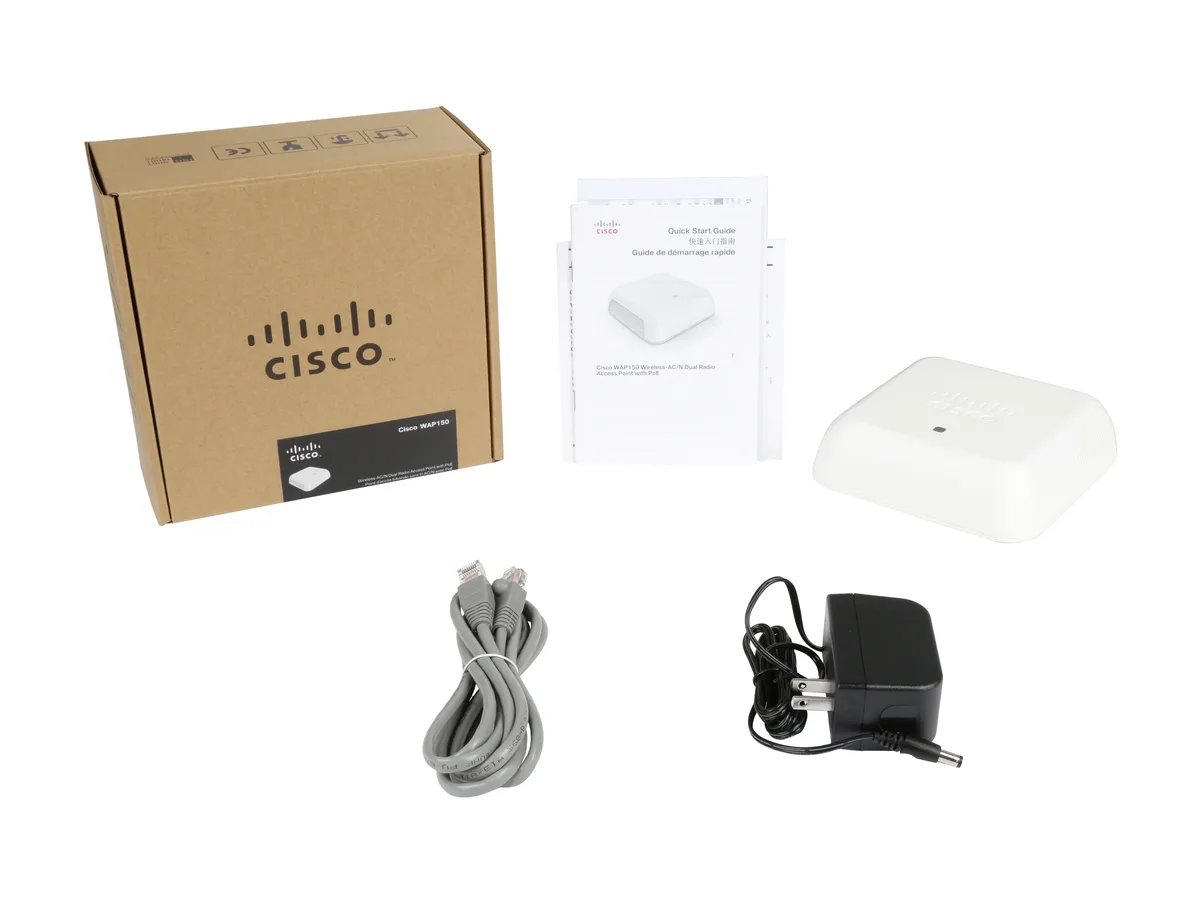

| Package Contents | WAP150 Wireless-AC / N Dual Radio Access Point Power adapter 12V1.5A Quick-start guide Ethernet network cable |
| Shipping weight | 0.82 kg |
| Package size | 193 × 188 × 99 mm |
Questions about this item
Will the 10/100/1000 Ethernet port work with my older 100 Mbps PoE switch?
Yes, the Gigabit port auto-negotiates down to 100 Mbps and accepts 802.3af PoE from legacy switches.
How can I confirm the dual-band radios are active after mounting the unit?
The single multifunction LED shows solid green when both radios are up and clients are associated.
Does the package include a PoE injector or only the AC adapter?
The box contains a 12 V 1.5 A AC adapter, a quick-start guide and an Ethernet cable; a PoE injector is sold separately.
