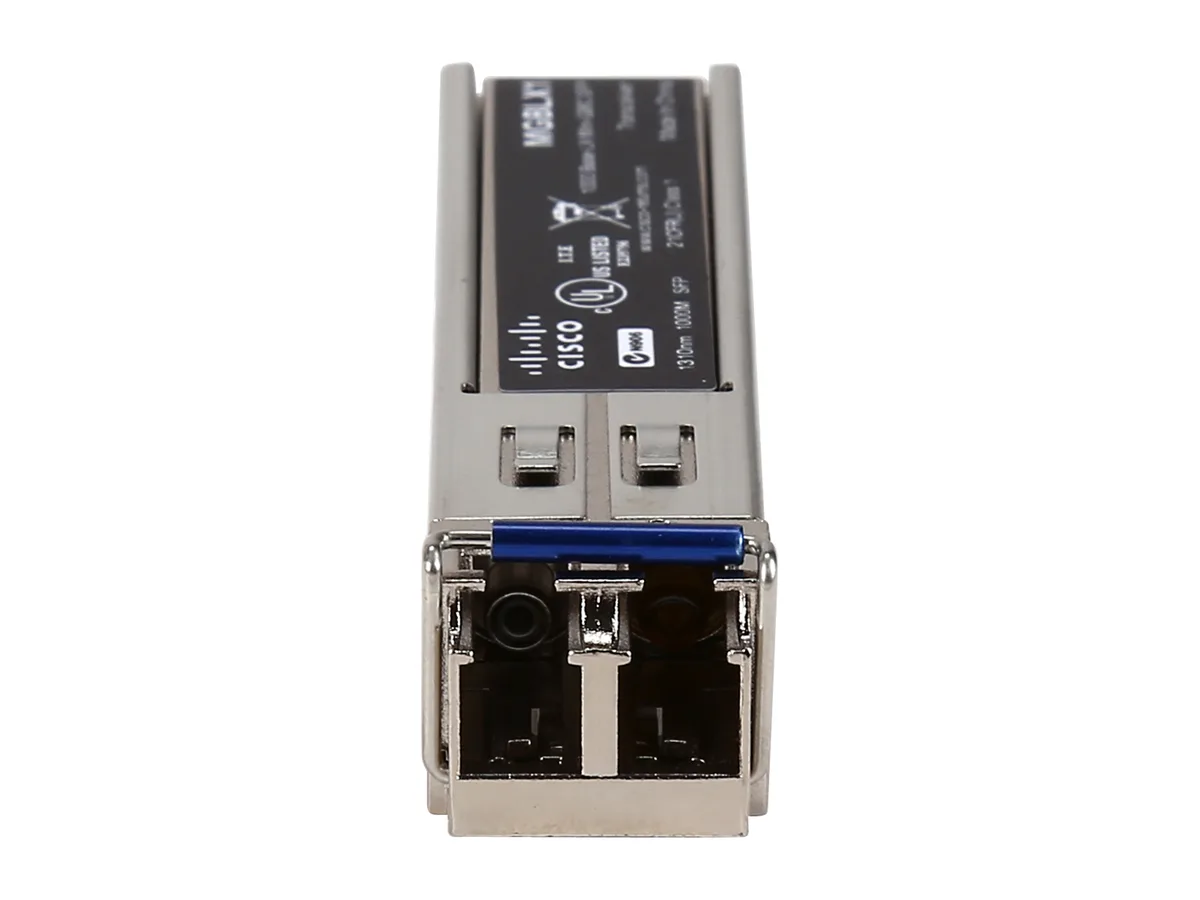

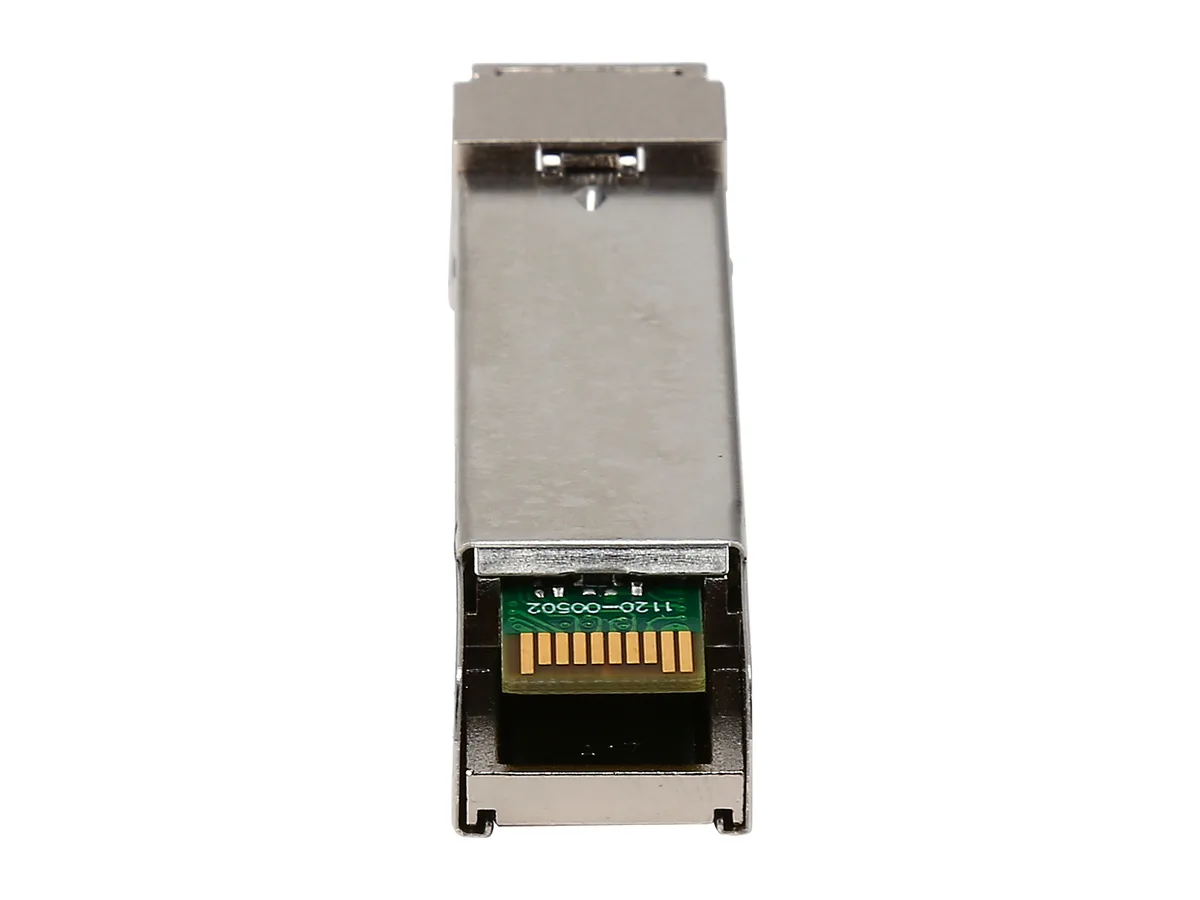

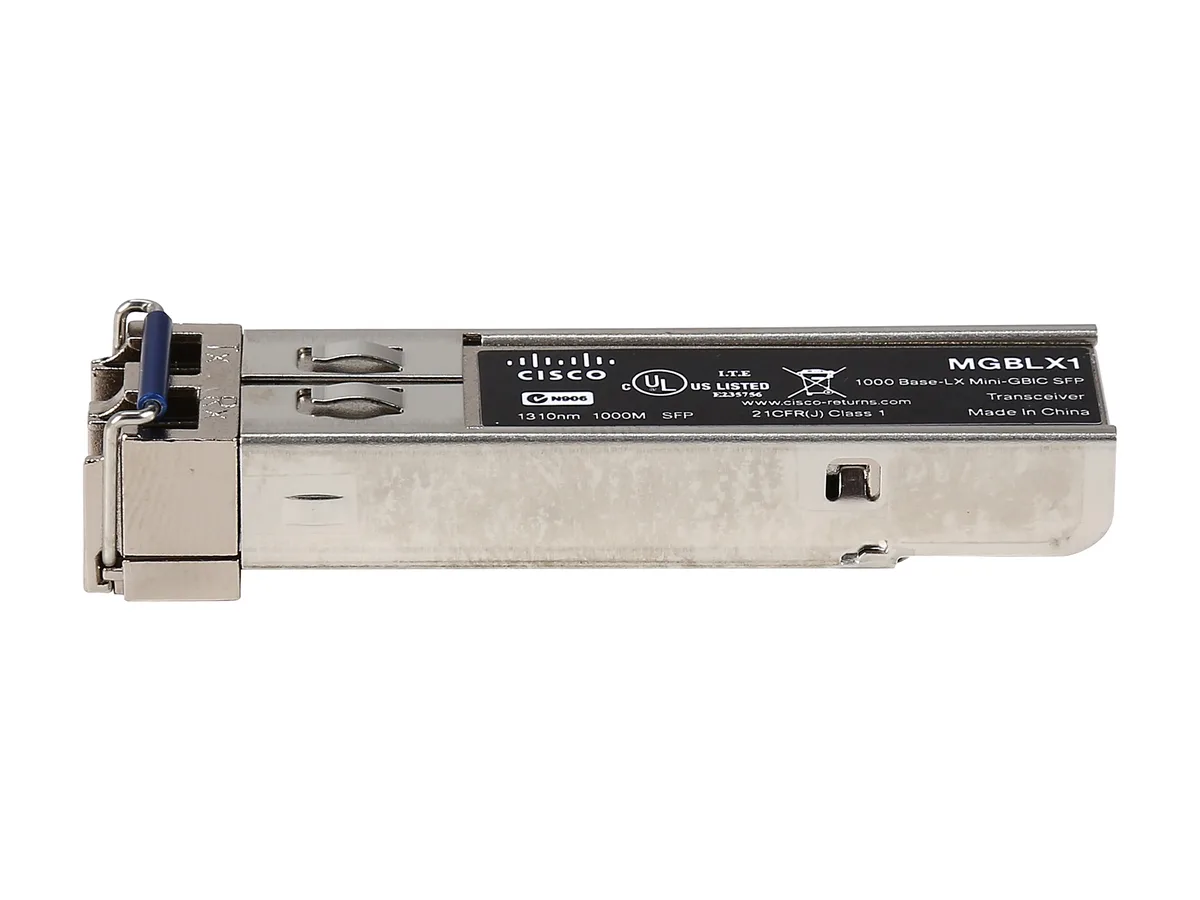

Compact silver SFP transceiver with LC duplex port, single-mode fiber, hot-swappable design

Cisco Systems, Inc.

Cisco Systems, Inc. MGBLX1 SFP transceiver 1000Base-LX 1310nm LC single-mode 10km

SKU CH-4FG8-VVNFY MPN MGBLX1

A hot-swappable SFP transceiver delivering 1 Gbps over single-mode fibre up to 10 km at 1310 nm with an LC duplex connector

  • Device TypeTransceiver
  • Form FactorSFP
  • Media ConversionMedia Type Supported: Optical Fiber Fiber Mode Supported: Si
  • Network MediaSingle-mode fiber (SMF)
  • Wavelength1310nm
  • PortsTotal Number of Ports: 1 Connector Type: LC Interfaces/Ports

Type 1000Base-LX

  • Gigabit Ethernet over single-mode fibre up to 10 km
  • Hot-swappable SFP module installs without powering down the switch
  • LC duplex connector links directly to standard single-mode patch cables
  • Operates at 1310 nm wavelength for reliable long-reach transmission
  • Compact 0.3 × 0.5 × 2.2 inch form factor fits dense chassis

SFP transceiver for Gigabit links

The Cisco MGBLX1 is a hot-swappable SFP transceiver built for 1000Base-LX Gigabit Ethernet connections. It uses a 1310 nm wavelength over single-mode fiber with LC duplex connectors. The module supports link distances up to 10 km and fits standard SFP ports in switches and routers.

Suited for long single-mode runs.

This transceiver suits network builds that need gigabit speed over single-mode fiber spans up to 10 km. It will not operate on multimode fiber plants, nor does it support 10 Gigabit or faster Ethernet rates. Buyers needing shorter reach or multimode compatibility should choose a different module.

1310 nm single-mode wavelength defines reach

The 1310 nm wavelength on single-mode fiber is the specification that determines whether this transceiver matches the installed cabling and distance plan. Verify that the link uses single-mode fiber with LC duplex patching and that the required span falls within the 10 km rating before ordering.

Highlights

  • Gigabit Ethernet over single-mode fibre up to 10 km
  • Hot-swappable SFP module installs without powering down the switch
  • LC duplex connector links directly to standard single-mode patch cables
  • Operates at 1310 nm wavelength for reliable long-reach transmission
  • Compact 0.3 × 0.5 × 2.2 inch form factor fits dense chassis

Specifications

BrandCisco Systems, Inc
Part NumberMGBLX1
Device TypeTransceiver
Form FactorSFP
Media ConversionMedia Type Supported:
Optical Fiber
Fiber Mode Supported:
Single-mode
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-LX
Network MediaSingle-mode fiber (SMF)
Wavelength1310nm
PortsTotal Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 1000Base-LX
Max DistanceTransmitted Wavelength: 1310 nm
Received Wavelength: 1310 nm
Transfer Rate1 Gbps
FeatureHot swappable
DimensionsHeight:
0.3"
Width:
0.5"
Depth:
2.2"
WeightWeight (Approximate):
0.04 lb
Package Contents1000Base-LX SFP (mini-GBIC) Transceiver
Quick Installation Guide
Shipping weight0.05 kg
Package size130 × 89 × 41 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the Cisco MGBLX1 SFP module and what step is often missed?

Slide the module into an SFP port until it clicks, then insert the LC duplex patch cable; the step often missed is removing the dust caps from both the module and the cable ends before connecting.

What maintenance or replacement will the Cisco MGBLX1 need over time?

The LC connectors and fiber end-faces should be cleaned with a lint-free wipe and isopropyl alcohol whenever links are disconnected; no internal components require scheduled replacement.

What limit appears first when the Cisco MGBLX1 runs continuously at full load?

The optical budget for 1310 nm single-mode fiber over 10 km is the first constraint; sustained 1 Gbps traffic will hit distance or attenuation limits before the module overheats.
