Compact silver desktop network switch with eight front ports and external power supply

Cisco Systems, Inc.

Cisco Systems, Inc. CSC-CBS110-8T-D-NA 8-port network switch

SKU CH-PRK9-YYWDP MPN CSC-CBS110-8T-D-NA

An 8-port Gigabit Ethernet desktop switch with plug-and-play operation and wall-mountable design

  • FormatDesktop Wall Mountable Rack-mountable
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Network Management TypeUnmanaged
  • Primary PortsTotal Number of Network Ports: 8 Port/Expansion Slot Details
  • PowerPower Source: Power Supply Power Consumption: 4.13 W
  • DimensionsHeight: 1.2" Width: 6.3" Depth: 4.1"

Model CBS110-8T-D-NA

  • Plug-and-play deployment with no IT expertise required
  • Eight Gigabit Ethernet ports deliver 10/100/1000 Mbps speeds
  • Desktop or wall-mountable design fits any workspace
  • Low 4.13 W power consumption reduces energy costs
  • Limited Lifetime Protection ensures long-term reliability

8-port Gigabit desktop switch

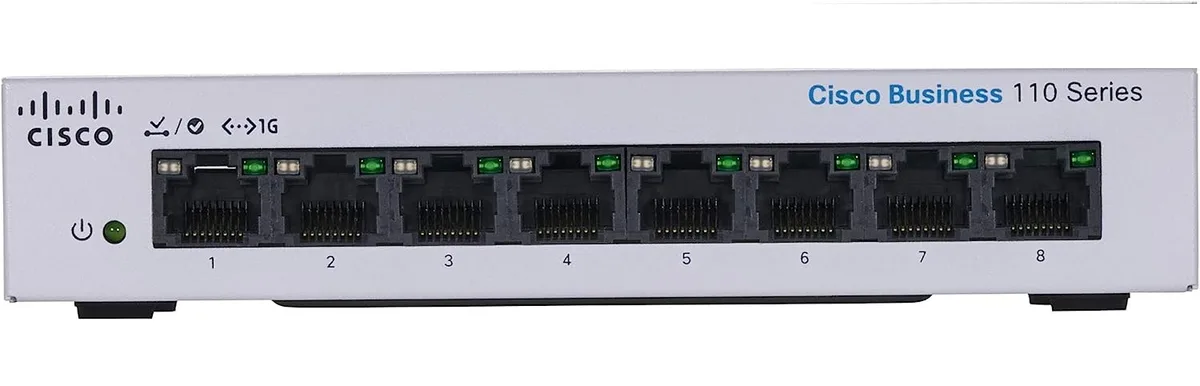

The Cisco Business CBS110-8T-D-NA is an unmanaged network switch with eight Gigabit Ethernet ports for twisted-pair cabling. It delivers 10/100/1000Base-T connectivity in a desktop form factor that can also be wall-mounted. An external power supply is included and the unit draws 4.13 W. The metal enclosure measures 1.2" high by 6.3" wide by 4.1" deep and weighs 15.17 oz.

Small offices needing simple wired expansion

This switch suits small businesses, workgroups or home offices that want plug-and-play Gigabit connectivity without any configuration. It is not for networks that require VLANs, QoS, link aggregation or any Layer 2 management features. Buyers who need Power over Ethernet for access points or IP phones should look at PoE-equipped models instead.

Eight 10/100/1000Base-T ports

The single specification that determines fit is the eight Gigabit Ethernet ports running 10/100/1000Base-T over twisted pair. If your deployment needs exactly eight wired endpoints at up to 1000 Mbps each and no management, this switch matches the requirement. If you need more or fewer ports, or managed features, a different model is required.

Highlights

  • Plug-and-play deployment with no IT expertise required
  • Eight Gigabit Ethernet ports deliver 10/100/1000 Mbps speeds
  • Desktop or wall-mountable design fits any workspace
  • Low 4.13 W power consumption reduces energy costs
  • Limited Lifetime Protection ensures long-term reliability

Specifications

BrandCisco Systems, Inc
Series110
Part NumberCBS110-8T-D-NA
FormatDesktop
Wall Mountable
Rack-mountable
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network Management TypeUnmanaged
Primary PortsTotal Number of Network Ports:
8
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network
PowerPower Source:
Power Supply
Power Consumption:
4.13 W
DimensionsHeight:
1.2"
Width:
6.3"
Depth:
4.1"
WeightWeight (Approximate):
15.17 oz
Shipping weight0.77 kg
Package size287 × 160 × 56 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many Gigabit Ethernet ports does the CBS110-8T-D-NA provide?

The switch provides 8 Gigabit Ethernet ports, each supporting 10/100/1000Base-T speeds over twisted pair cabling.

What is the power consumption when the switch is running continuously?

The unit draws 4.13 W from its external power supply during operation.

What external power supply is required for the CBS110-8T-D-NA?

The switch ships with an external power supply that connects to mains power; no PoE source or internal PSU is needed.
