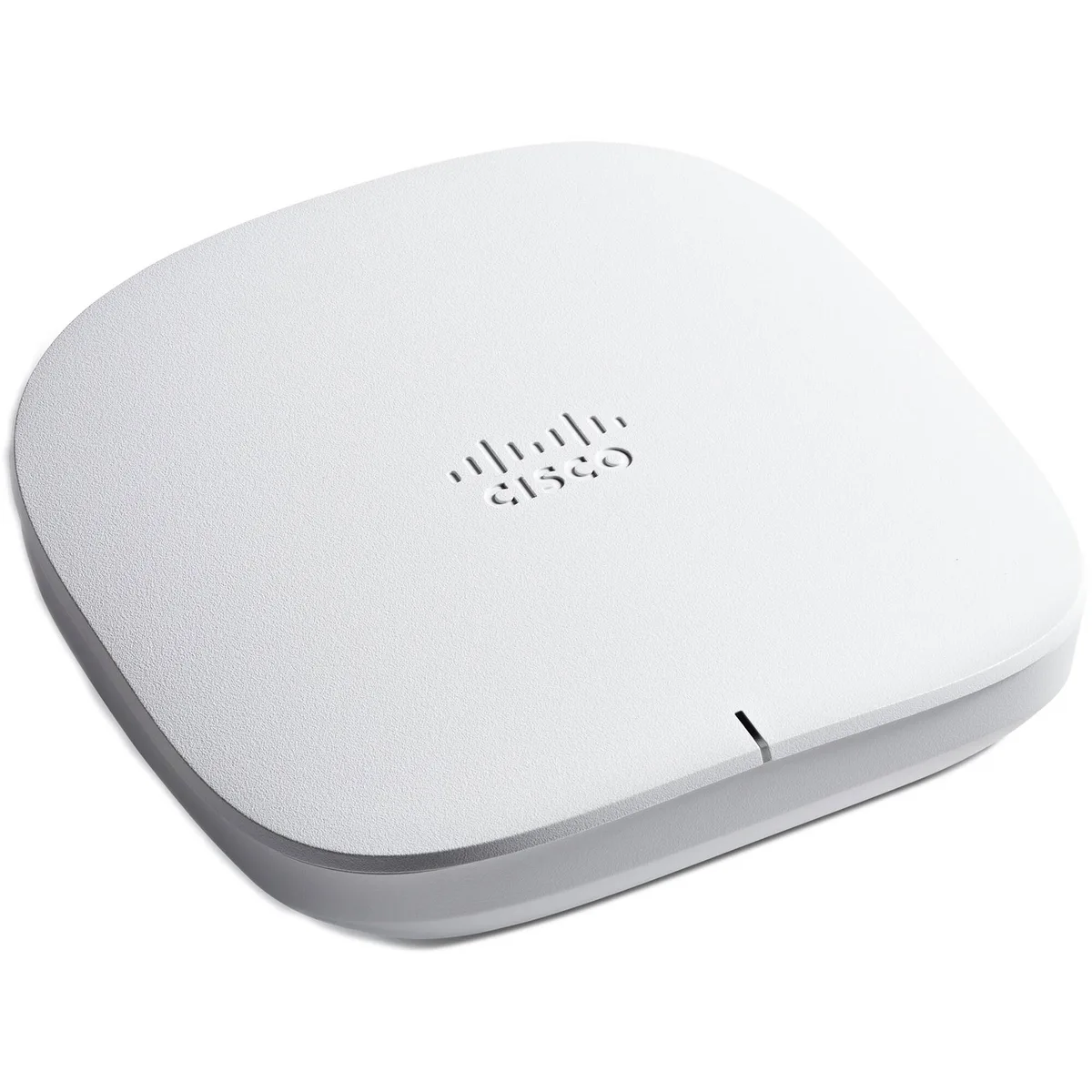

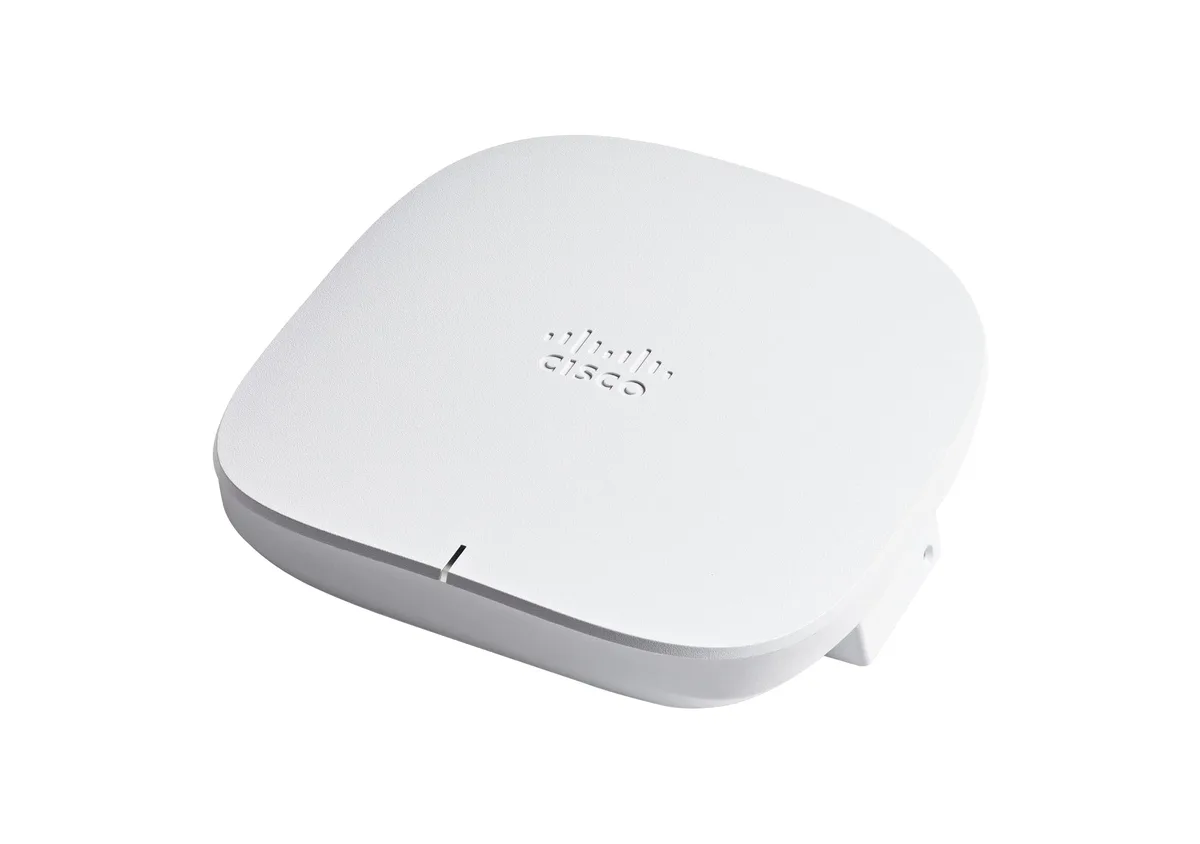

White square ceiling-mounted Wi-Fi 6 access point with smooth matte finish and subtle Cisco branding

Cisco Systems, Inc.

Cisco Systems, Inc. CBW150AX-B-NA access point

SKU CH-2EHN-Q7KHY MPN CBW150AX-B-NA

Dual-band Wi-Fi 6 access point supports 400 clients per unit with 1.49 Gbit/s throughput and PoE power

  • # of UsersMaximum number of associated wireless clients: 200 per Wi-Fi
  • StandardsIEEE 802.3 IEEE 802.3ab IEEE 802.3af/at IEEE 802.11a/b/g/n/a
  • WiFi GenerationWi-Fi 6
  • Wireless Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1,
  • SecurityWi-Fi Protected Access - with WPA2 or WPA3, including WPA2-E
  • Frequency Band2.4 GHz / 5 GHz
  • Wi-Fi 6 handles more devices with up to 400 clients per access point
  • MU-MIMO splits streams between clients using two spatial streams for higher throughput
  • Manage many units as one system through browser or mobile app with no controller needed
  • Mesh support extends coverage by mixing access points and extenders
  • Dual-band 2.4 GHz and 5 GHz radios deliver 1.49 Gbit/s maximum wireless speed

Cisco Business 150AX Wi-Fi 6 Access Point

The Cisco Business 150AX is a dual-band wireless access point built on the Wi-Fi 6 standard. It operates on both 2.4 GHz and 5 GHz frequencies with internal omnidirectional antennas. The unit supports a maximum data rate of 1.49 Gbit/s and connects to the wired network through a single 10/100/1000M port powered by PoE.

Small businesses needing controller-free Wi-Fi 6

This access point suits organisations that want to manage up to 1000 clients across a group of CBW150AX and CBW151AXM devices using only a web browser or mobile app. It is not for environments that require a physical hardware controller or that need to mix this model with other Cisco wireless families in the same management domain.

PoE-powered ceiling or wall mount for dense client

The access point draws a maximum of 9.2 W from a PoE or PoE+ switch, so no separate power supply is needed. Its compact 150 mm square form factor fits standard ceiling tiles and wall brackets. The gigabit Ethernet uplink feeds both data and power, freeing AC outlets for other equipment while the 16 VLANs and WPA2/WPA3 security segment traffic for guests and staff.

Highlights

  • Wi-Fi 6 handles more devices with up to 400 clients per access point
  • MU-MIMO splits streams between clients using two spatial streams for higher throughput
  • Manage many units as one system through browser or mobile app with no controller needed
  • Mesh support extends coverage by mixing access points and extenders
  • Dual-band 2.4 GHz and 5 GHz radios deliver 1.49 Gbit/s maximum wireless speed

Specifications

BrandCISCO
Model150AX
Part NumberCBW150AX-B-NA
# of UsersMaximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system.
StandardsIEEE 802.3
IEEE 802.3ab
IEEE 802.3af/at
IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11h, 802.11d
WiFi GenerationWi-Fi 6
Wireless Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11)
SecurityWi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i
Guest network can also authenticate against a Social Login account: Google and Facebook
Frequency Band2.4 GHz / 5 GHz
Antenna2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth
5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth
WAN Ports1 x 10/100/1000M
Max Power ConsumptionPower Draw: 9.2W (maximum, on PoE)
DimensionsAccess point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm)
WeightAccess point without mounting bracket or any other accessories: 11.6 oz (330 g)
FeaturesManagement Compatibility:
A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity.
CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points.
CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher.
Maximum # of Access Points:
50
Recommended up to 25
Max # of Mesh Extenders:
Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
Ethernet ports:
Authentication with 802.1X or MAC
Shipping weight0.77 kg
Package size203 × 203 × 102 mm

Questions about this item

Does my network need a PoE switch or injector to power the CBW150AX-B-NA access point?

The unit draws up to 9.2 W via IEEE 802.3af/at PoE on its single 10/100/1000M port, so a PoE-capable switch or mid-span injector is required unless a separate power adapter is sourced.

Can I manage this CBW150AX alongside my older CBW151AXM mesh extenders in one group?

Yes, a group containing only CBW150AX and CBW151AXM devices can be managed as a single entity through the integrated WebUI or the Cisco Business Mobile app without a physical controller or licensing.

How can I verify the CBW150AX-B-NA is delivering Wi-Fi 6 performance after installation?

Connect a Wi-Fi 6 client and confirm it negotiates 802.11ax data rates up to 1200 Mbps on the 2.4 GHz or 5 GHz band, and check the WebUI dashboard for MU-MIMO activity with two spatial streams.
