Cisco Systems, Inc.
Cisco Systems, Inc. CBW145AC-B access point
Dual-band wireless access point with 802.11ac up to 867 Mbps, MU-MIMO, four Gigabit Ethernet ports including PoE uplink and PoE out, integrated antennas
- StandardsIEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac
- Wireless Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1,
- Security802.11i, WPA2, WAP3, WPA 802.1X AES
- AntennaIntegrated antennas 2.4 GHz, gain 2 dBi 5 GHz, gain 3 dBi
- Transmitted Power2.4 GHz - Up to 20 dBm 5 GHz - Up to 20 dBm
- Interface1 x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing),
- Supports HD media and gaming with up to 1 Gbit/s wireless speed
- Powers devices without extra wiring using PoE uplink and PoE out port
- Connects wired devices at Gigabit speeds via three local Ethernet ports
- Serves multiple clients at once with MU-MIMO technology
- Operates reliably from 32°F to 104°F in business environments

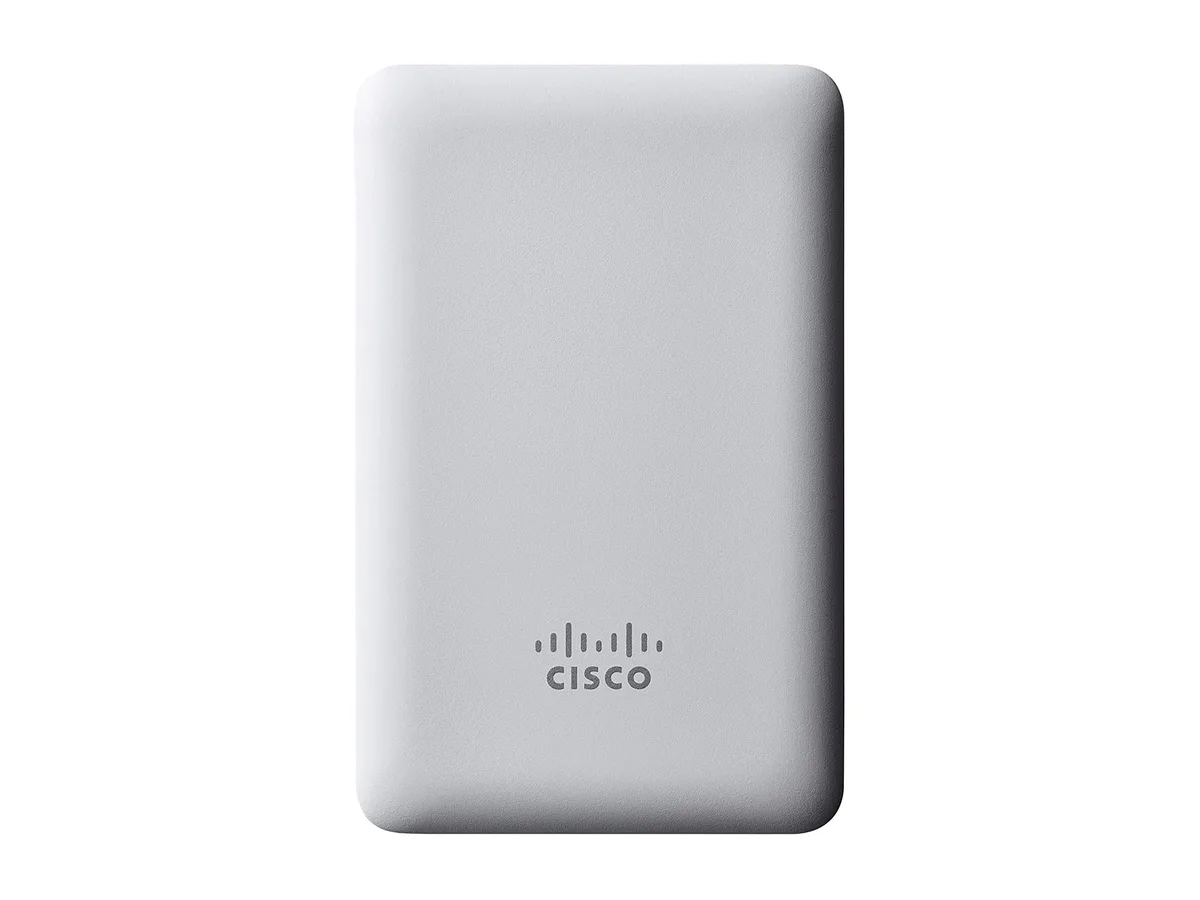

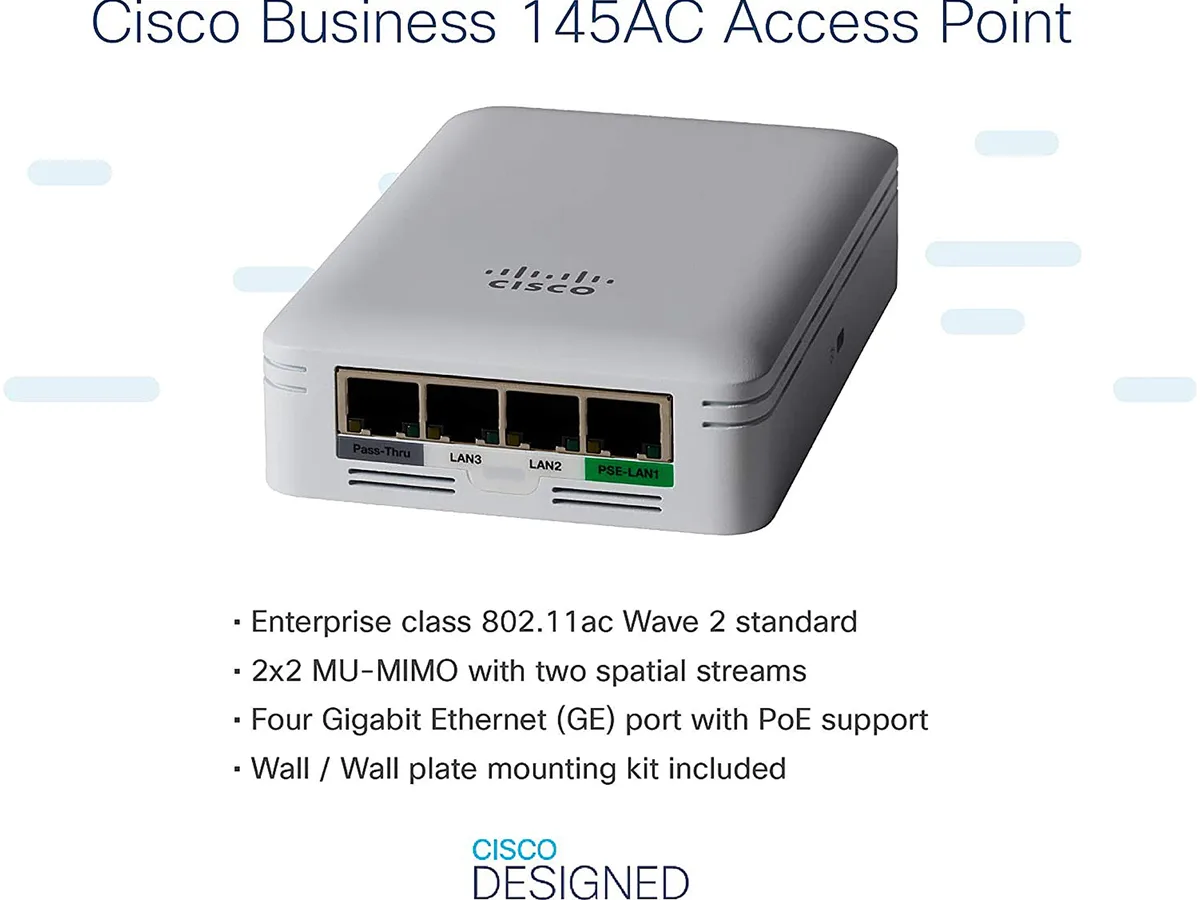

Cisco Business 145AC Access Point
The Cisco Business 145AC is a dual-band wireless access point supporting IEEE 802.11ac Wave 2 with MU-MIMO. It delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz through integrated antennas. A single Gigabit Ethernet uplink with PoE powers the unit, while three local Gigabit ports provide wired connectivity, one of which can supply 802.3af PoE out when the access point receives 802.3at power.
Small business and branch-office deployments
This access point suits organisations needing a compact, wall-mountable unit that can be powered over Ethernet and extend PoE to a downstream device such as an IP phone or camera. It is not suited for environments requiring controller-based management, mesh backhaul, or outdoor-rated enclosures. Buyers who need multiple radios for high-density venues or dedicated scanning radios should evaluate other product lines.
PoE-out capability on a local port
The defining specification is the ability to deliver 802.3af Class 0 power from one of the three local Gigabit ports when the access point itself is powered by 802.3at. This allows a single cable run to serve both the access point and a PoE-powered endpoint, reducing cabling cost and complexity in retrofit installations.
Highlights
- Supports HD media and gaming with up to 1 Gbit/s wireless speed
- Powers devices without extra wiring using PoE uplink and PoE out port
- Connects wired devices at Gigabit speeds via three local Ethernet ports
- Serves multiple clients at once with MU-MIMO technology
- Operates reliably from 32°F to 104°F in business environments
Specifications
| Brand | CISCO |
|---|---|
| Series | Business 145AC |
| Model | CBW145AC-B |
| Standards | IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac |
| Wireless Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) |
| Security | 802.11i, WPA2, WAP3, WPA 802.1X AES |
| Antenna | Integrated antennas 2.4 GHz, gain 2 dBi 5 GHz, gain 3 dBi |
| Transmitted Power | 2.4 GHz - Up to 20 dBm 5 GHz - Up to 20 dBm |
| Interface | 1 x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE 3 x Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port: PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af One passive pass-through port, RJ-45 (back to bottom) |
| LEDs | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Features | MU-MIMO Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2 - capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as Single-User MIMO (SU-MIMO). Gigabit Ethernet ports Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to Master AP or be locally switched by the access |
| Dimensions | Access point (without mounting bracket): 1.25" x 3.50" x 5.50" |
| Weight | Access point without mounting bracket or any other accessories: 10.00 oz. |
| Temperature | Operating: 32° to 104°F (0° to 50°C) Nonoperating (storage and transportation): -22° to 158°F (-30° to 70°C) |
| Humidity | 10% - 90%, Non-Condensing |
| Shipping weight | 1.04 kg |
| Package size | 203 × 127 × 76 mm |
Questions about this item
How do I confirm the CBW145AC-B is operating correctly after installation?
The Status LED shows boot loader status, association status, operating status, boot loader warnings and boot loader errors. A solid operating-status light means the AP is up and passing traffic.
What ships with the CBW145AC-B and what must I source separately?
The box contains the access point with integrated 2.4 GHz (2 dBi) and 5 GHz (3 dBi) antennas and a mounting bracket. You must supply a PoE+ (802.3at) injector or switch for full PoE-out on the local port, or a 802.3af source if PoE-out is not needed.
Which CBW145AC-B variant should I choose for a small office needing up to 867 Mbps on 5 GHz?
The single CBW145AC-B model delivers 802.11ac Wave 2 with MU-MIMO, 867 Mbps maximum 5 GHz rate and 300 Mbps on 2.4 GHz, covering the stated requirement in one SKU.
