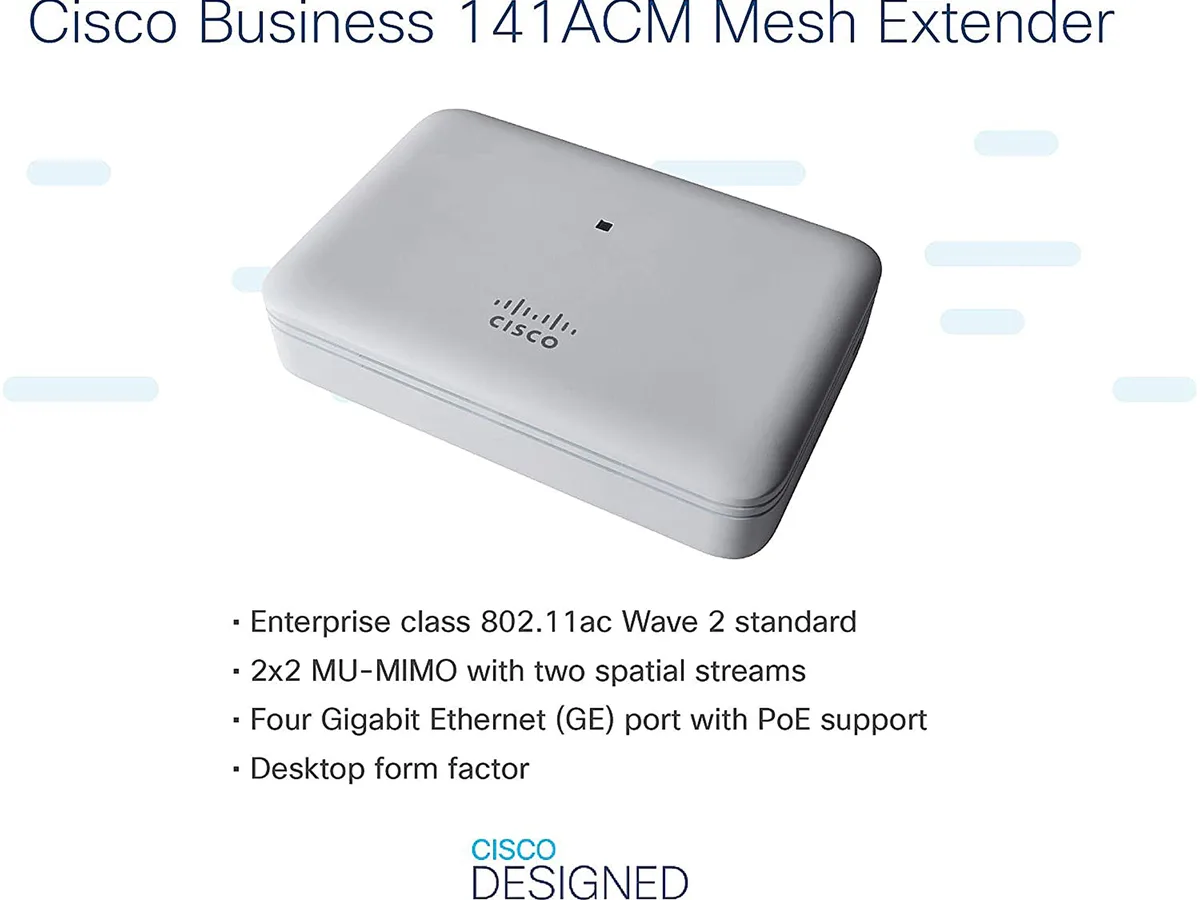

White rectangular desktop wireless access point with four Ethernet ports and status LED

Cisco Systems, Inc.

Cisco Systems, Inc. CBW141ACM-B-NA access point

SKU CH-CYPH-10XXG MPN CBW141ACM-B-NA

Dual-band wireless range extender with 867 Mbit/s 802.11ac speed, four Ethernet ports and PoE output

  • StandardsIEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac
  • Wireless Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1,
  • Security802.11i, WPA2, WPA3 802.1X Advanced Encryption Standard (AES
  • Frequency Band2.4 GHz / 5 GHz
  • AntennaIntegrated antennas: 2.4 GHz, gain 2 dBi 5 GHz, gain 3 dBi
  • Interface4 Ethernet Ports (includes 1 PoE Output port)
  • Extends wireless coverage using IEEE 802.11ac up to 867 Mbit/s
  • Dual-band 2.4 GHz and 5 GHz operation with integrated 2 dBi and 3 dBi antennas
  • MU-MIMO serves multiple 802.11ac Wave 2 clients simultaneously for better throughput
  • Four Ethernet ports including one PoE output port power remote devices from a single cable
  • Compact desktop form factor 1.50" x 6.00" x 4.00" weighing 13.00 oz for flexible placement

Cisco Business 100 Range Extender

The Cisco CBW141ACM-B-NA is a new wireless access point designed to extend an existing network. It operates on 2.4 GHz and 5 GHz bands with IEEE 802.11ac technology. Integrated antennas provide 2 dBi gain at 2.4 GHz and 3 dBi gain at 5 GHz. The desktop form factor measures 1.50" x 6.00" x 4.00" and weighs 13.00 oz.

Small offices and home networks

This unit suits environments that need expanded coverage and wired connectivity for up to four Ethernet devices. One port supplies PoE output for powering a downstream device. Buyers who require ceiling or wall mounting hardware should verify bracket compatibility separately. Those needing outdoor-rated enclosures or controller-based management must look elsewhere.

867 Mbps 5 GHz throughput

The maximum 802.11ac data rate on the 5 GHz band reaches 867 Mbps using MCS0-MCS9 modulation. This figure determines whether the extender can meet the bandwidth demands of HD streaming or large file transfers. The 2.4 GHz band tops out at 144 Mbps with 802.11n MCS0-MCS15. Power input accepts 44 to 52V DC with an 8.5W draw when PoE and USB are unused.

Highlights

  • Extends wireless coverage using IEEE 802.11ac up to 867 Mbit/s
  • Dual-band 2.4 GHz and 5 GHz operation with integrated 2 dBi and 3 dBi antennas
  • MU-MIMO serves multiple 802.11ac Wave 2 clients simultaneously for better throughput
  • Four Ethernet ports including one PoE output port power remote devices from a single cable
  • Compact desktop form factor 1.50" x 6.00" x 4.00" weighing 13.00 oz for flexible placement

Specifications

BrandCISCO
SeriesBusiness 100
ModelCBW141ACM-B-NA
StandardsIEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
IEEE 802.11ac
Wireless Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 5 and 4 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 144 Mbps (MCS0-MCS15)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
Security802.11i, WPA2, WPA3
802.1X
Advanced Encryption Standard (AES)
Frequency Band2.4 GHz / 5 GHz
AntennaIntegrated antennas:
2.4 GHz, gain 2 dBi
5 GHz, gain 3 dBi
Interface4 Ethernet Ports (includes 1 PoE Output port)
LEDsStatus LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Power SupplyPower Input: 44 to 52V DC
Power Draw: 8.5W (no PoE out and no USB)
TemperatureOperating: 32° to 104°F (0° to 50°C)
Nonoperating (storage and transportation): -22° to 158°F (-30° to 70°C)
HumidityOperating: 10% to 90% (noncondensing)
Nonoperating (storage and transportation): 10% to 90% (noncondensing)
DimensionsAccess point (without mounting bracket): 1.50" x 6.00" x 4.00"
WeightAccess point without any other accessories: 13.00 oz.
FeaturesMU-MIMO
Multi-user (MU) Multiple-Input Multiple-Output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2 - capable clients to improve the client experience.
Mesh technology support
Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.
Two-step setup
Simplified deployment with two-step setup: Scan a QR code via the Cisco Business Mobile app, and power on the device. No additional setup is required.
Shipping weight1.41 kg
Package size203 × 152 × 76 mm

Questions about this item

What does the 867 Mbit/s rate mean for actual throughput on the 5 GHz band?

The 867 Mbit/s figure is the maximum PHY rate for 802.11ac on 5 GHz; real-world throughput will be lower due to overhead, interference and client capabilities.

Which Ethernet port supplies PoE and what voltage does the unit require?

One of the four Ethernet ports is a PoE output port; the access point itself needs 44 to 52V DC input power.

What are the exact dimensions and weight for desktop or wall mounting?

The unit measures 1.50" x 6.00" x 4.00" without the mounting bracket and weighs 13.00 oz.
