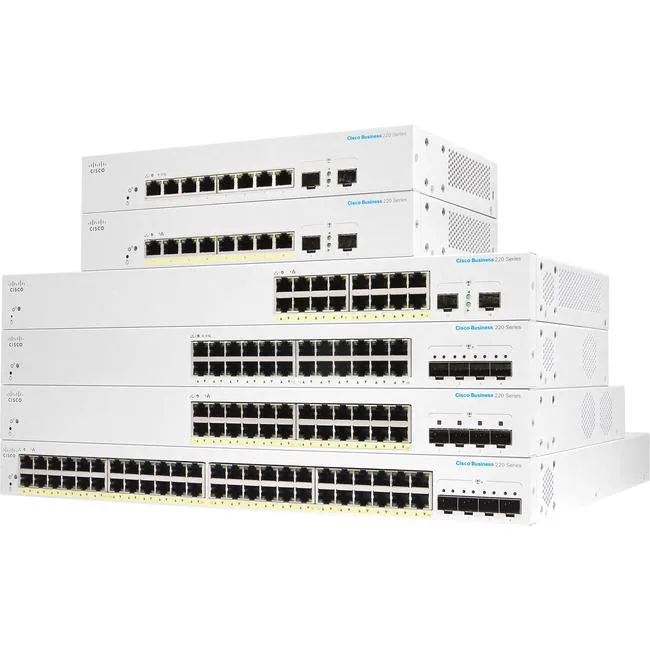

Silver rack-mount switch, eight RJ-45 ports, two SFP slots, fanless front

Cisco Systems, Inc.

Cisco Systems, Inc. CBS2208FPE2GNA network switch 8-port 10/100/1000 PoE 130W 2 SFP

SKU CH-WT00-1SPR3 MPN CBS2208FPE2GNA

An 8-port Gigabit PoE switch with a 130W power budget and two SFP uplinks for fiber links

  • FormatRack-mountable
  • StandardsLayer Supported: 2 Networking Standards: IEEE 802.3 IEEE 802
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 2.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 8 Uplink Port: Yes Modular: Y

Model CBS220-8FP-E-2G-NA

  • 8 PoE ports deliver up to 130W for IP phones and cameras
  • Two 1G SFP uplinks add fiber reach beyond copper limits
  • Layer 2 management with VLAN, QoS and 802.1X keeps traffic secure
  • Fanless 1.7″ rack unit runs silent in offices and classrooms
  • IEEE 802.3az efficiency lowers power draw during low-traffic periods

8-Port Gigabit PoE switch for small business

The Cisco Business 220 switch provides eight 10/100/1000 RJ-45 ports with PoE and PoE+ support across a 130W total power budget. Two Gigabit SFP uplink slots allow fiber uplinks for longer runs. It is managed through an on-box UI, mobile app, and Cisco Business Dashboard for simplified operations. The fanless, rack-mountable design suits quiet environments such as retail stores, open-plan offices, and classrooms.

Installation and common issues

The unit mounts in a standard rack using the included kit and requires only a power cord connection to start. The on-box UI and mobile app guide initial configuration, while the Dashboard automates deployment and lifecycle tasks. A frequent issue is exceeding the 130W PoE budget when powering multiple high-draw devices, which causes ports to disable power. Another is inserting SFP modules that are not 1G compatible, preventing the uplink from linking.

Pre-order checks

Verify that the combined power draw of your PoE devices stays within the 130W budget. Confirm that any fiber uplinks use 1000Base-X SFP transceivers, as the two expansion slots accept only Gigabit SFP modules. Ensure the rack space accommodates the 1.7" height, 11" width, and 6.7" depth dimensions. Check that your environment meets the operating temperature range for fanless operation.

Highlights

  • 8 PoE ports deliver up to 130W for IP phones and cameras
  • Two 1G SFP uplinks add fiber reach beyond copper limits
  • Layer 2 management with VLAN, QoS and 802.1X keeps traffic secure
  • Fanless 1.7″ rack unit runs silent in offices and classrooms
  • IEEE 802.3az efficiency lowers power draw during low-traffic periods

Specifications

BrandCisco Systems, Inc
SeriesBusiness
Part NumberCBS220-8FP-E-2G
FormatRack-mountable
StandardsLayer Supported:
2
Networking Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1s
IEEE 802.1x
IEEE 802.3af
IEEE 802.3at
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
2
Primary PortsTotal Number of Network Ports:
8
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
8 x Gigabit Ethernet PoE
2 x Gigabit Ethernet Expansion Slot
DimensionsHeight:
1.7"
Width:
11"
Depth:
6.7"
WeightWeight (Approximate):
2.60 lb
CertificationEnvironmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Package ContentsBusiness CBS220-8FP-E-2G Ethernet Switch
Power Cord
Mounting Kit
Quick Start Guide
Shipping weight3.54 kg
Package size498 × 292 × 104 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the 130W PoE budget is powering my devices correctly?

Check the on-box UI or Cisco Business Dashboard for real-time PoE power draw per port; the switch reports actual consumption against the 130W budget.

What comes in the box and do I need to buy SFP modules separately?

The box includes the CBS220-8FP-E-2G switch, a power cord, a mounting kit, and a quick start guide; the 2 SFP uplink slots require compatible 1G SFP modules purchased separately.

Which Cisco Business 220 variant matches 8 PoE ports and 2 SFP uplinks?

The CBS220-8FP-E-2G-NA model provides exactly 8 Gigabit PoE+ ports with a 130W budget and 2 Gigabit SFP expansion slots in a fanless, rack-mountable chassis.
