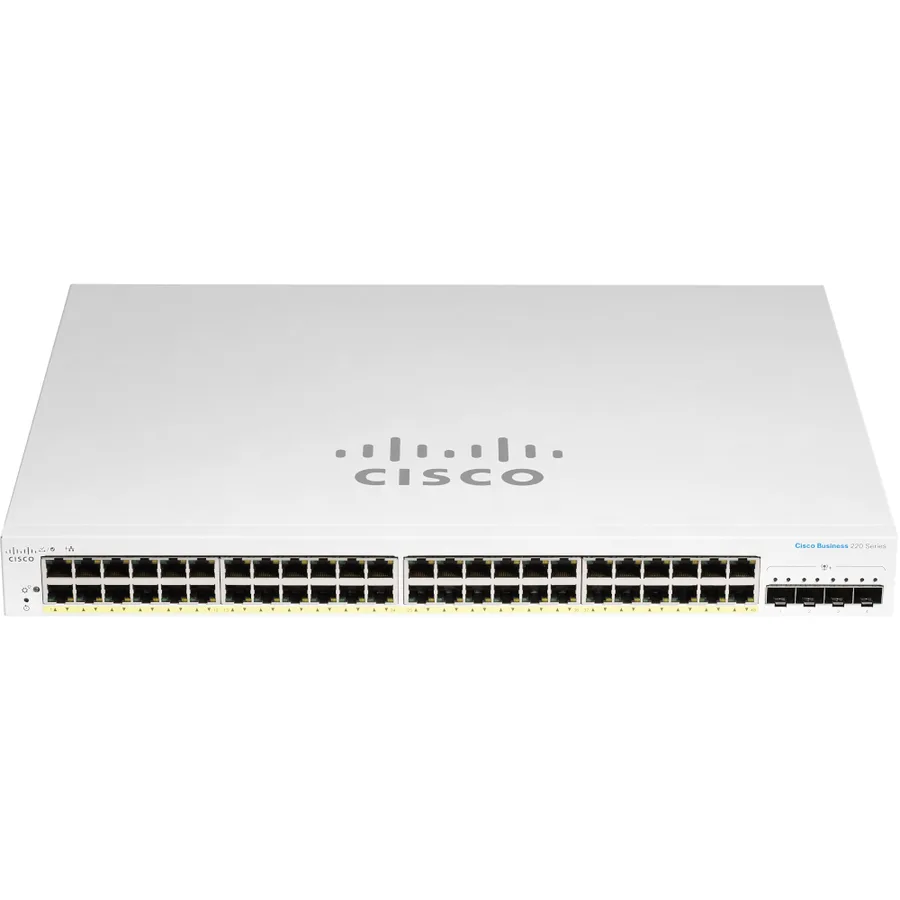

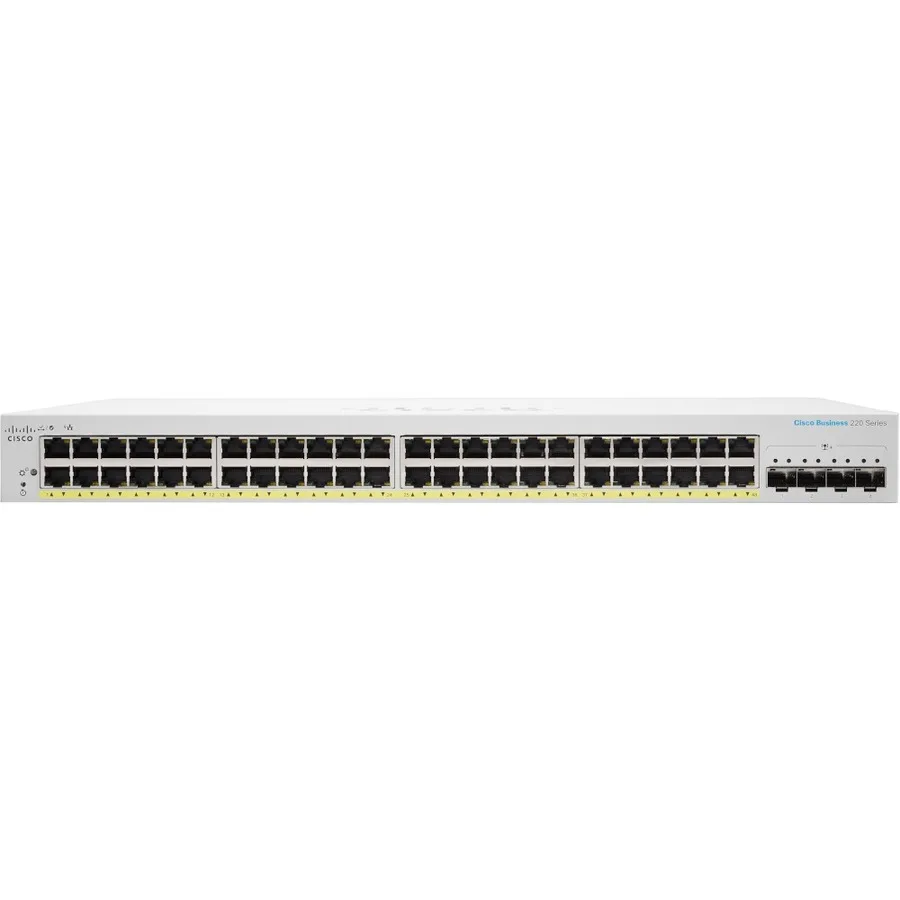

Silver 1U rack-mount switch, 48 RJ-45 ports front, four SFP+ cages above

Cisco Systems, Inc.

Cisco Systems, Inc. CBS220-48FP-4X 48-port Gigabit PoE+ network switch with 4×10G SFP+ uplinks

SKU CH-EN3X-S33V1 MPN CBS220-48FP-4X

48-port Gigabit PoE+ switch with 740 W budget and four 10 G SFP+ uplinks for high-density managed access

  • Switch Typemanaged
  • FormatRack-mountable
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 48 Uplink Port: Yes Modular:
  • 48 Gigabit PoE+ ports power phones, cameras and access points with a 740 W budget
  • Four 10 Gb SFP+ uplinks provide high-speed fibre aggregation to core switches
  • Managed Layer 2 operation includes 802.1X access control, ACLs and DoS protection
  • Fanless 1U rack design runs silently in offices, retail or classrooms
  • Energy Efficient Ethernet cuts power draw to 65.7 W at idle

48-port Gigabit PoE+ switch with 10G uplinks

The Cisco Business 220 Series CBS220-48FP-4X is a managed rack-mountable switch delivering 48 Gigabit Ethernet ports with full Power over Ethernet Plus support and four 10 Gigabit SFP+ uplink slots. It targets small businesses that need reliable wired connectivity for access points, IP cameras, and VoIP phones while keeping network operations simple through an intuitive on-box UI, mobile app, and Cisco Business Dashboard automation.

740 W PoE budget and included mounting kit

A total PoE budget of 740 W across all 48 RJ-45 ports lets you power high-density endpoint deployments without external injectors. The bundle supplies a power cord, rack-mounting hardware, and a Quick Start Guide so the unit can be installed and brought online immediately after unboxing.

Verify SFP+ modules and rack space before ordering

Confirm you have compatible 10G SFP+ transceivers for the four uplink slots, as they are not included. Ensure your rack provides 1.7" of vertical clearance and 13.8" of depth for the chassis, and that your site power can accommodate the 740 W maximum draw at either 50 Hz or 60 Hz.

Highlights

  • 48 Gigabit PoE+ ports power phones, cameras and access points with a 740 W budget
  • Four 10 Gb SFP+ uplinks provide high-speed fibre aggregation to core switches
  • Managed Layer 2 operation includes 802.1X access control, ACLs and DoS protection
  • Fanless 1U rack design runs silently in offices, retail or classrooms
  • Energy Efficient Ethernet cuts power draw to 65.7 W at idle

Specifications

BrandCisco Systems, Inc
SeriesBusiness
ModelCBS220-48FP-4X-NA
Part NumberCBS220-48FP-4X-NA
Switch Typemanaged
FormatRack-mountable
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
10GBase-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Primary PortsTotal Number of Network Ports:
48
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
48 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slot
Switching MethodManaged
PoEYes
Layer2
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
740 W
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
Power Consumption:
65.70 W
Max Power Consumption740 watts
DimensionsHeight:
1.7"
Width:
17.3"
Depth:
13.8"
WeightWeight (Approximate):
12.46 lb
CertificationEnvironmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Temperature, 45 degrees_celsius
FeaturesSwitch, Power cord or adapter, Mounting hardware, and Quick Start Guide
Package ContentsBusiness CBS220-48FP-4X Ethernet Switch
Power Cord
Mounting Kit
Quick Start Guide
Shipping weight7.58 kg
Package size574 × 508 × 112 mm
